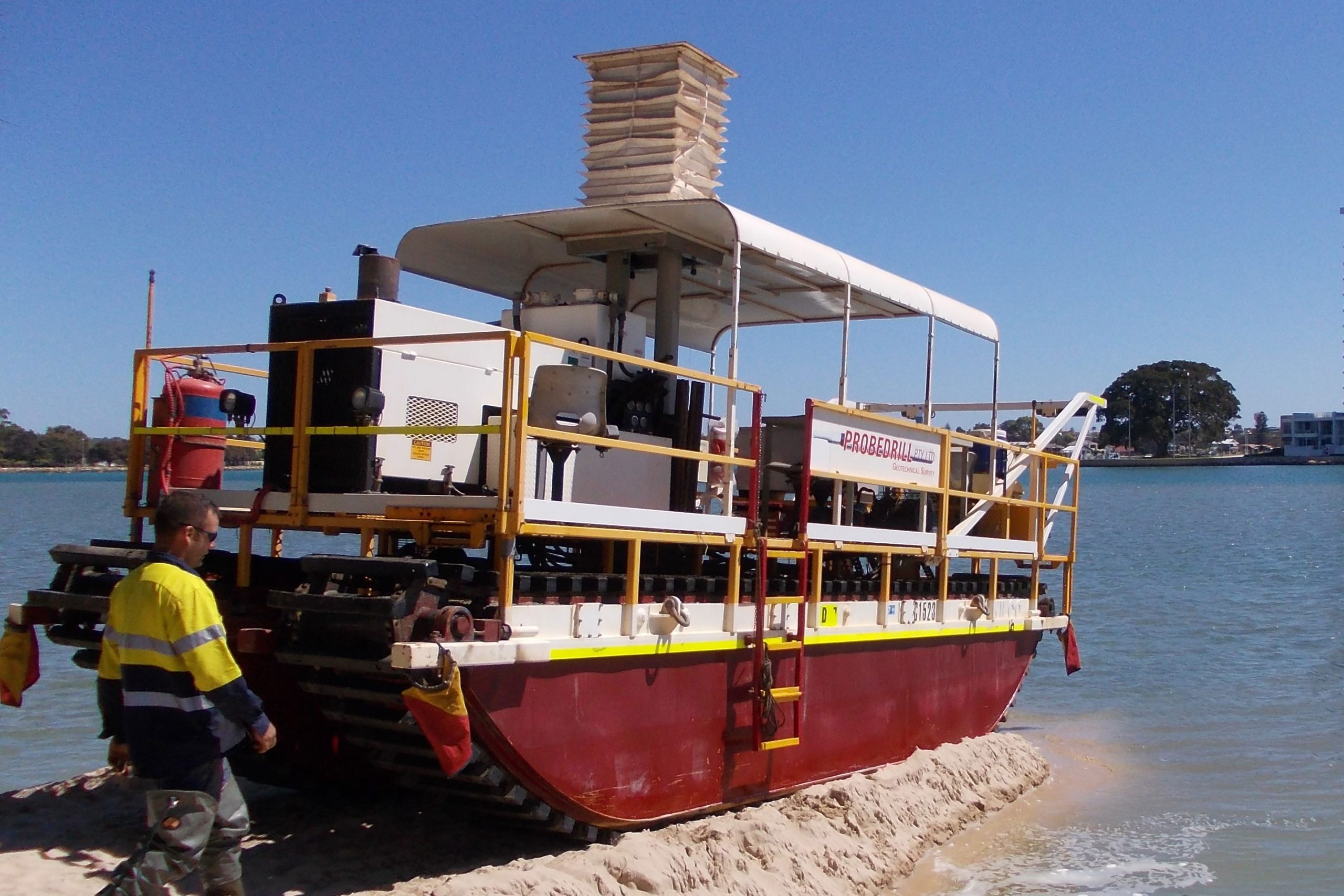

13 Tonne Marsh Buggy Rig

CPT Rig Specifications
Height (while travelling): 3.9m
Length: 8.0m
Width: 3.0m
Min. Ground Bearing Pressure: 0.10kg/cm2 (10.3kPa)
Travelling Speed (tracked rigs): 4.2km/hr (on land) 2.5km/hr (on water)
For use in areas such as: Soft / sandy / tidal ground

Our 13 tonne Marsh Buggy Rig is an amphibious tracked vehicle perfect for soft terrain locations such as tailings dams, mangrove/swamp and tidal areas. The Marsh Buggy is transported to site via a prime mover & 14.5m drop-deck trailer with ramps and comes fully-equipped with a support Max IV amphibious support vehicle which is provided for recovery and rescue.  Our Max IV ATV is also available for separate dry hire – click here to download the spec sheet or contact our office for further details.

In November 2013, the Marsh Buggy rig successfully conducted CPT whilst floating.  The testing was carried out on a tailings dam, where winch, ropes & shore anchors were used to steady the rig.  CPTu testing was completed to depths of more than 70m…  check out our news update for further details.

In April 2015, we successfully conducted testing with the Marsh Buggy in the Swan River using the spud leg attachments.  Typically we cannot carry out testing while the rig is floating as the rig needs to be stationary to alleviate any uncontrolled lateral movement of the CPT rods.  By attaching the spud legs, it provides a quick and effective anchorage system in shallow, protected waters, where rope anchors are not considered suitable. As well, in suitable ground, the addition of a suction caisson to one of the legs will provide additional reaction weight. The spud legs will provide stability for water depths of approximately 4.5m.

Further developments to the spud legs could see us potentially utilizing them to lift the rig to some extent, which would therefore allow us to increase rig reaction weight and gain pushing capacity.

Other vehicle specs. include :

  • Pontoons Length: 7.31m Width: 0.91m Height 1.2m
  • Track Roller Chain 101.6mm Pitch Heavy duty Engineer class.  Two strands per Pontoon
  • Track Cleats 76mm x 51mm UHMW (Plastic cleats)
  • Chassis – All steel welded construction with box tubing frame. Expanded metal deck welded to I-beam and channel base
  • Deck 2.9m (W) x 6.7m (L)
  • Winch (1) Ramsey Winch: Hydraulically Powered 5.4 tonne line pull with 46m of 9.5mm wire rope.
  • Winch (2) Custom Winch: Hydraulically Powered 2 tonne line pull with 350m of 6mm wire rope.
  • Winch (3) Ancillary (Land based) Haglands Winch: Hydraulically Powered 6.4 tonne line pull with 300m of 19mm wire rope.

Other Equipment / Features:

  • 2.4m x 1.2m Plastic Bog Boards (x 20)
  • High pressure water cleaner (hydraulically driven)
  • 200L water tank
  • 90 sec Fire suppression system (65L), with remote activation
  • 9kg ABE Fire extinguisher
  • Remote Control Radio system for tracking
  • 3 points Emergency stop
  • Work Bench
  • Tool box
  • Covered work platform
  • Secure Seating, with seat belts, for 4 personnel
  • Mooring anchors (x 2)
  • Spud leg attachments for increased stability and anchorage

Geotechnical Services provided

  • CPT, CPTu, SCPT, SCPTu (5, 10, & 15 tonne cones)
  • DMT, SDMT
  • CPT casing for additional rod support
  • Continuous (percussion) or discreet soil sampling
  • Piston Sampling
  • Vane Shear Testing (Electrically driven)
  • Vibrating Wire Installation
  • Water Sampling
  • Standpipe Installation (20mm and 32mm)

Marshbuggy Rig Spec Sheet

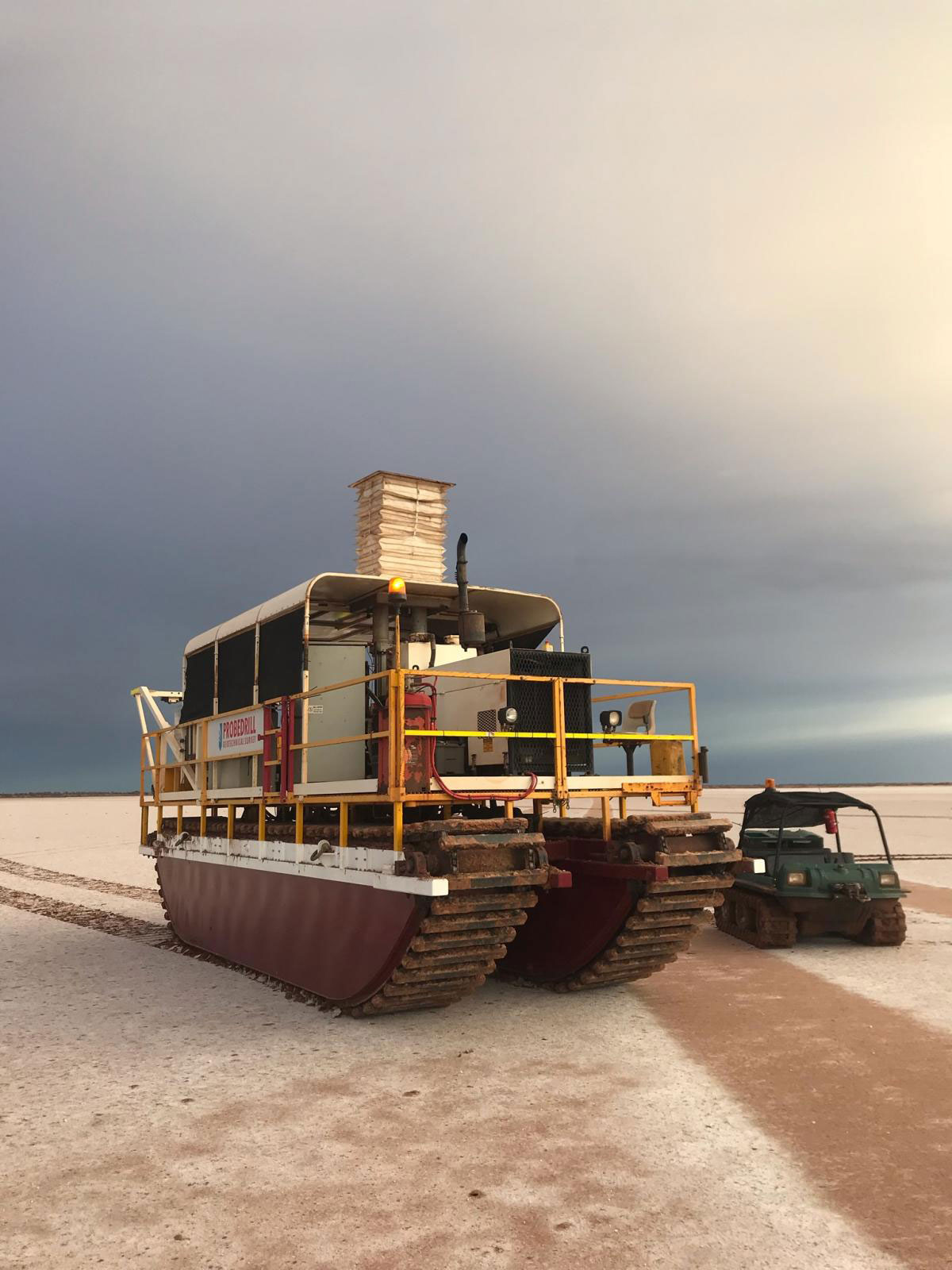

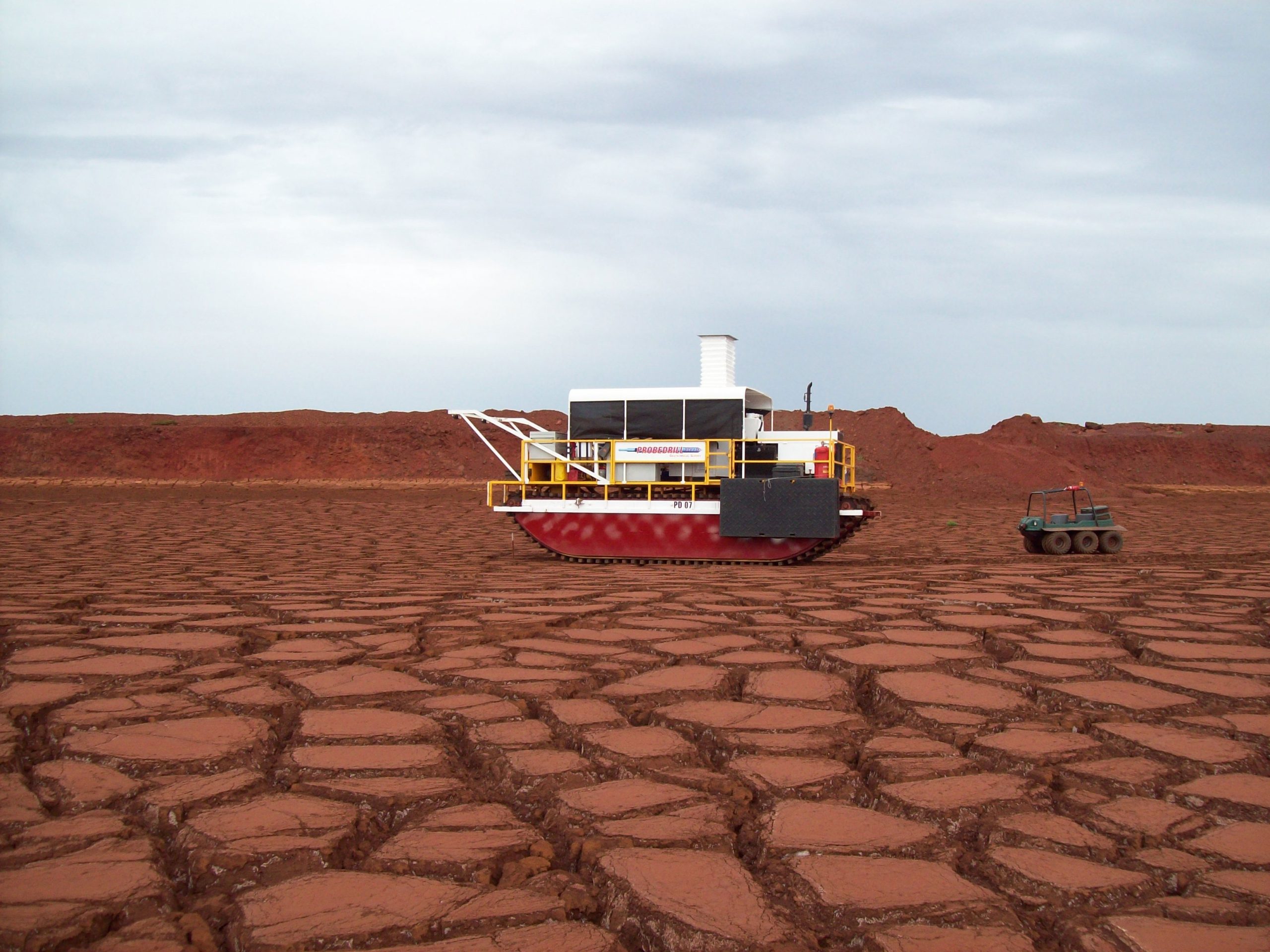

ATV support vehicle for the Marsh Buggy

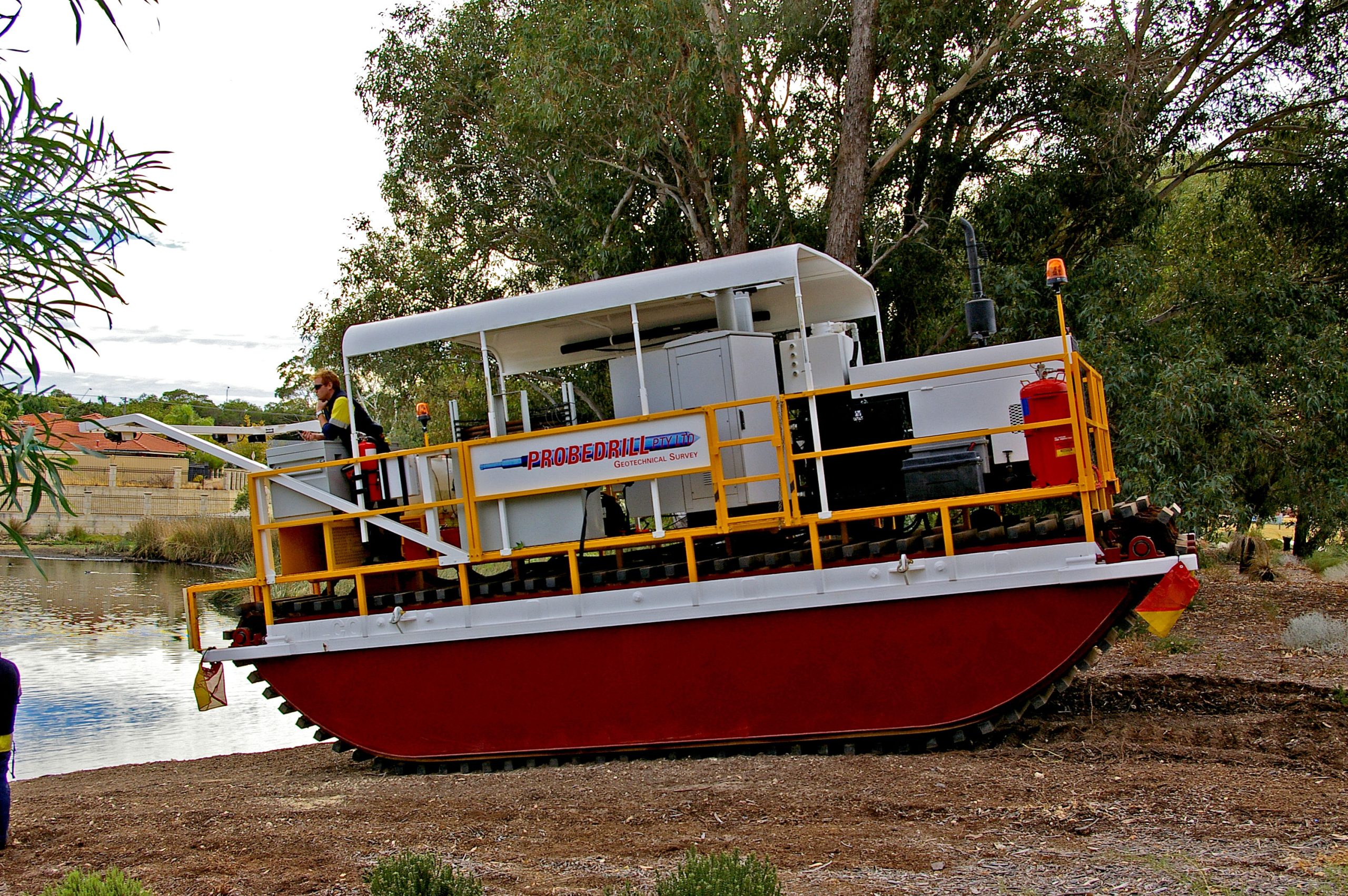

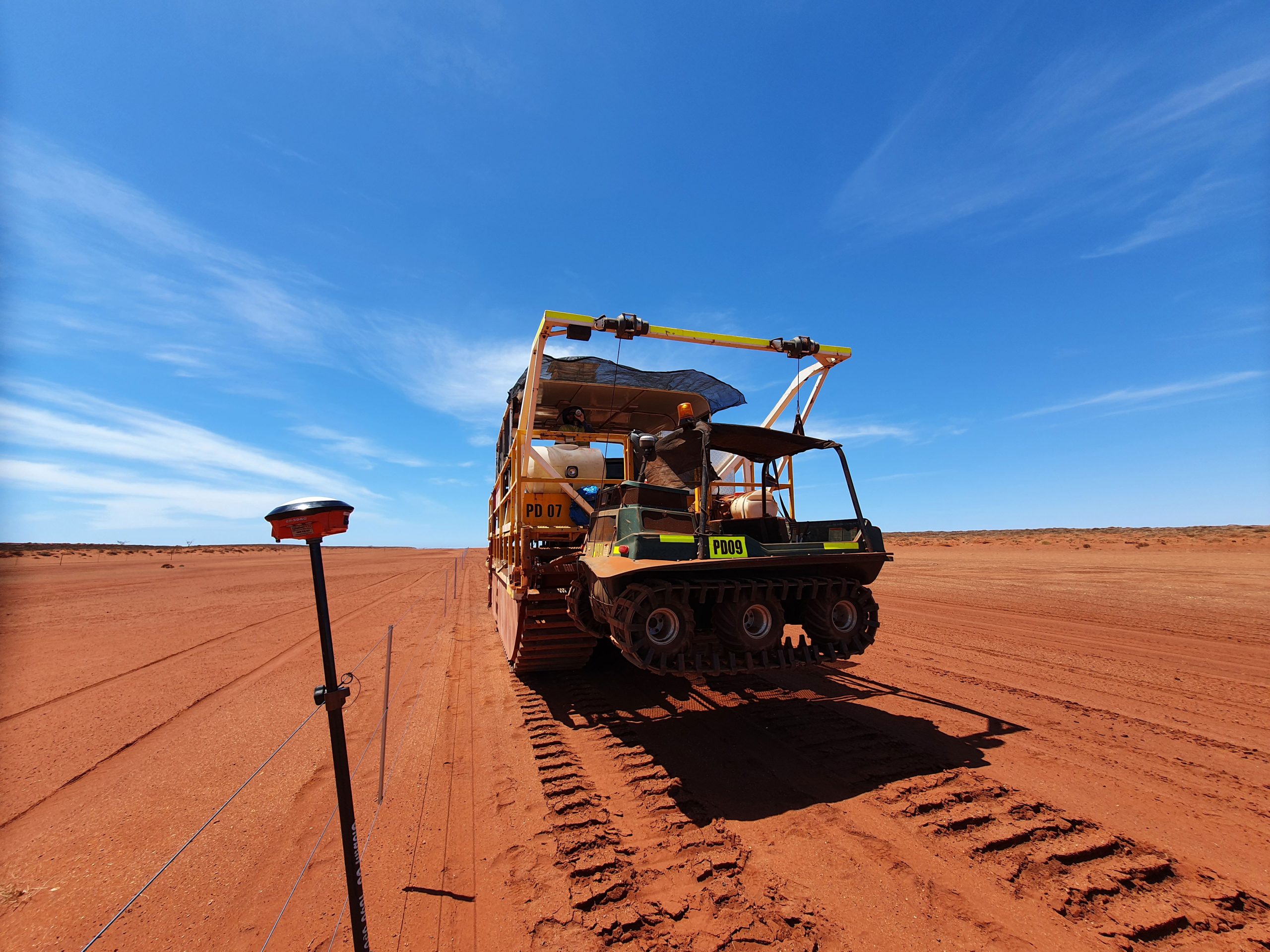

ATV support vehicle for the Marsh Buggy. Also available for wet hire

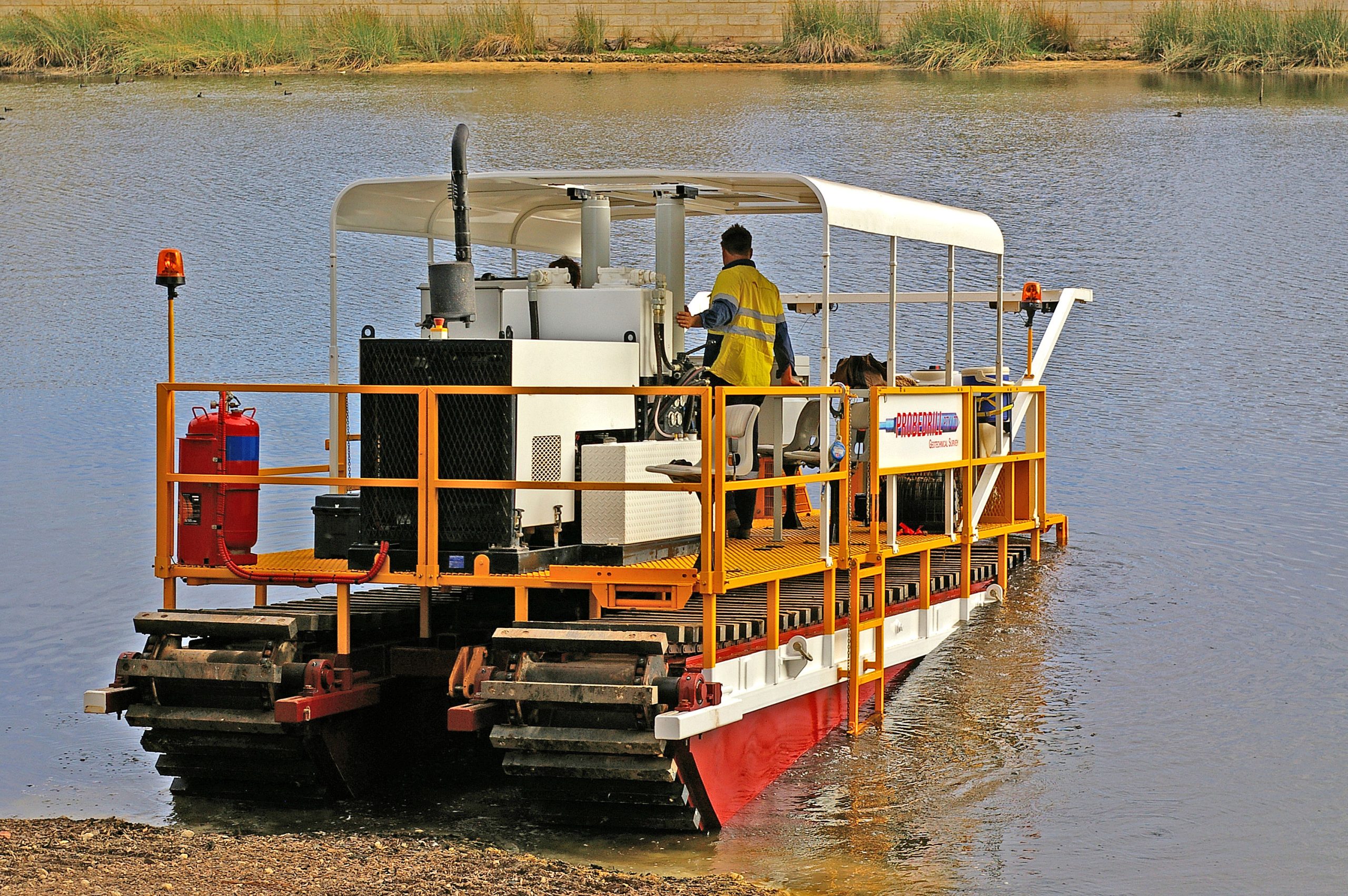

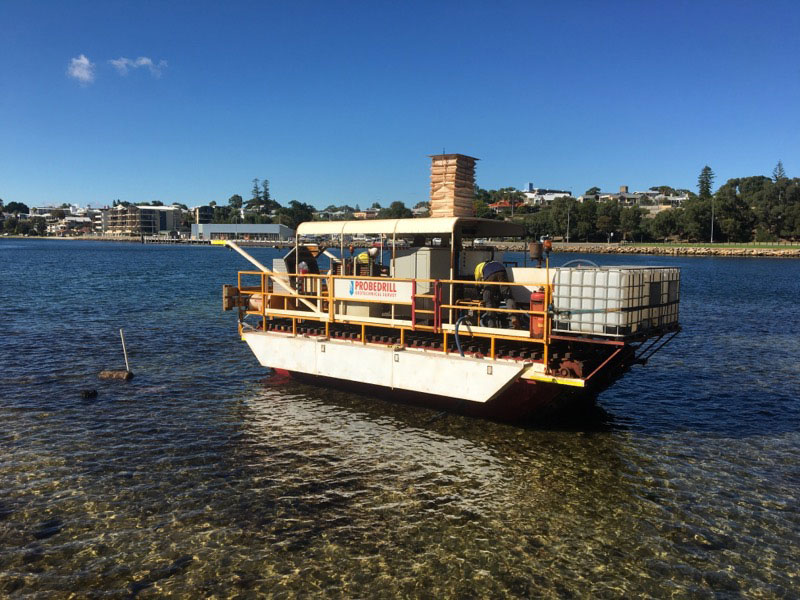

Conducting CPT

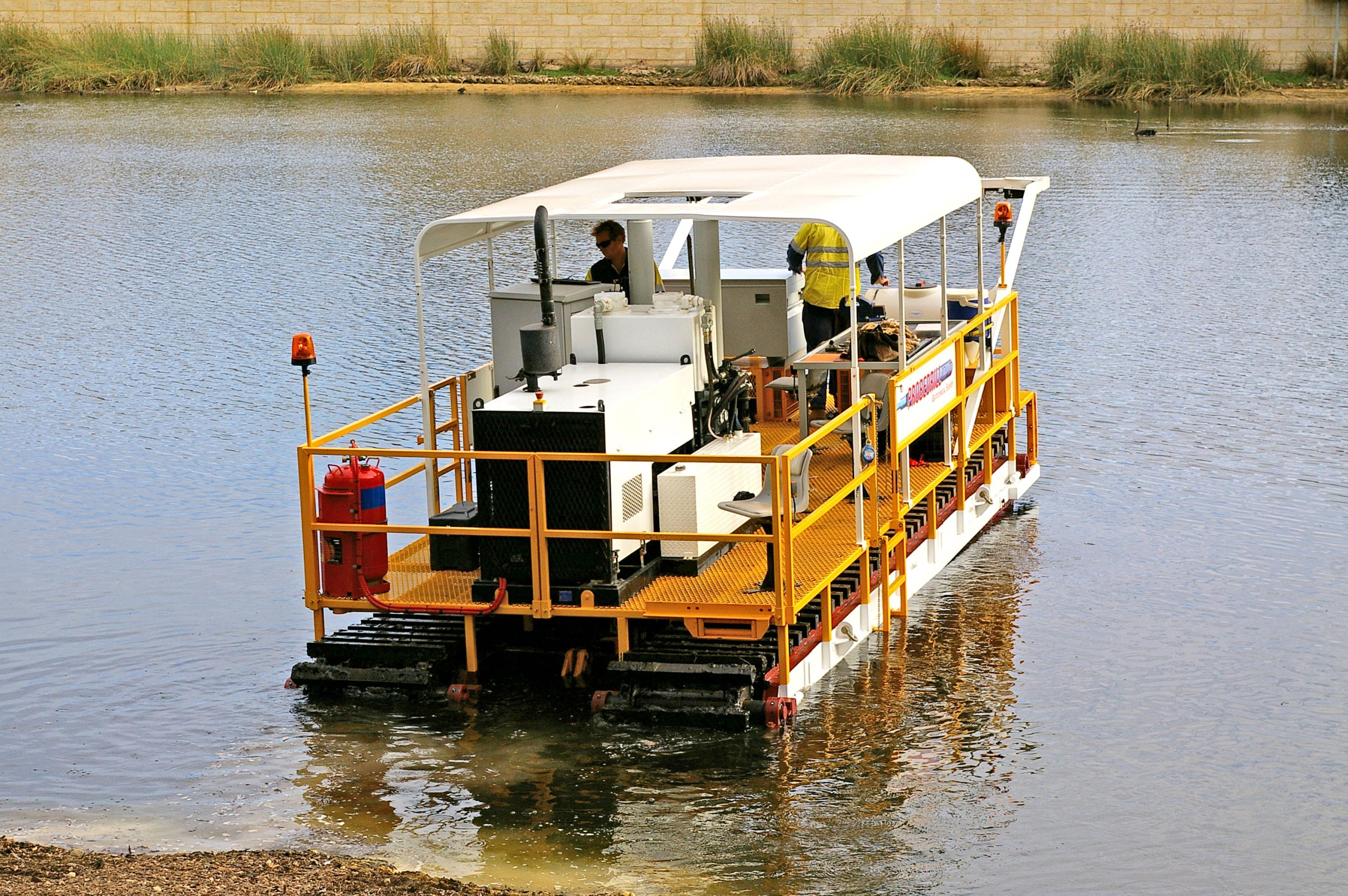

Conducting “Floating” CPT
Eric Singleton Bird Sanctuary, Bayswater
Eric Singleton Bird Sanctuary, Bayswater

Eric Singleton Bird Sanctuary, Bayswater
Eric Singleton Bird Sanctuary, Bayswater
Eric Singleton Bird Sanctuary, Bayswater
Eric Singleton Bird Sanctuary, Bayswater
Gobba Lake, Bayswater
Gobba Lake, Bayswater

Gobba Lake, Bayswater
Gobba Lake, Bayswater
Gobba Lake, Bayswater
Gobba Lake, Bayswater
Jacinth TSF, South Australia
Jacinth TSF, South Australia

Jacinth TSF, South Australia
Jacinth TSF, South Australia
Jacinth TSF, South Australia
Jacinth TSF, South Australia
Karratha - Dampier Hwy Duplication
Karratha – Dampier Hwy Duplication

Karratha - Dampier Hwy Duplication
Karratha – Dampier Hwy Duplication
Karratha - Dampier Hwy Duplication
Karratha – Dampier Hwy Duplication

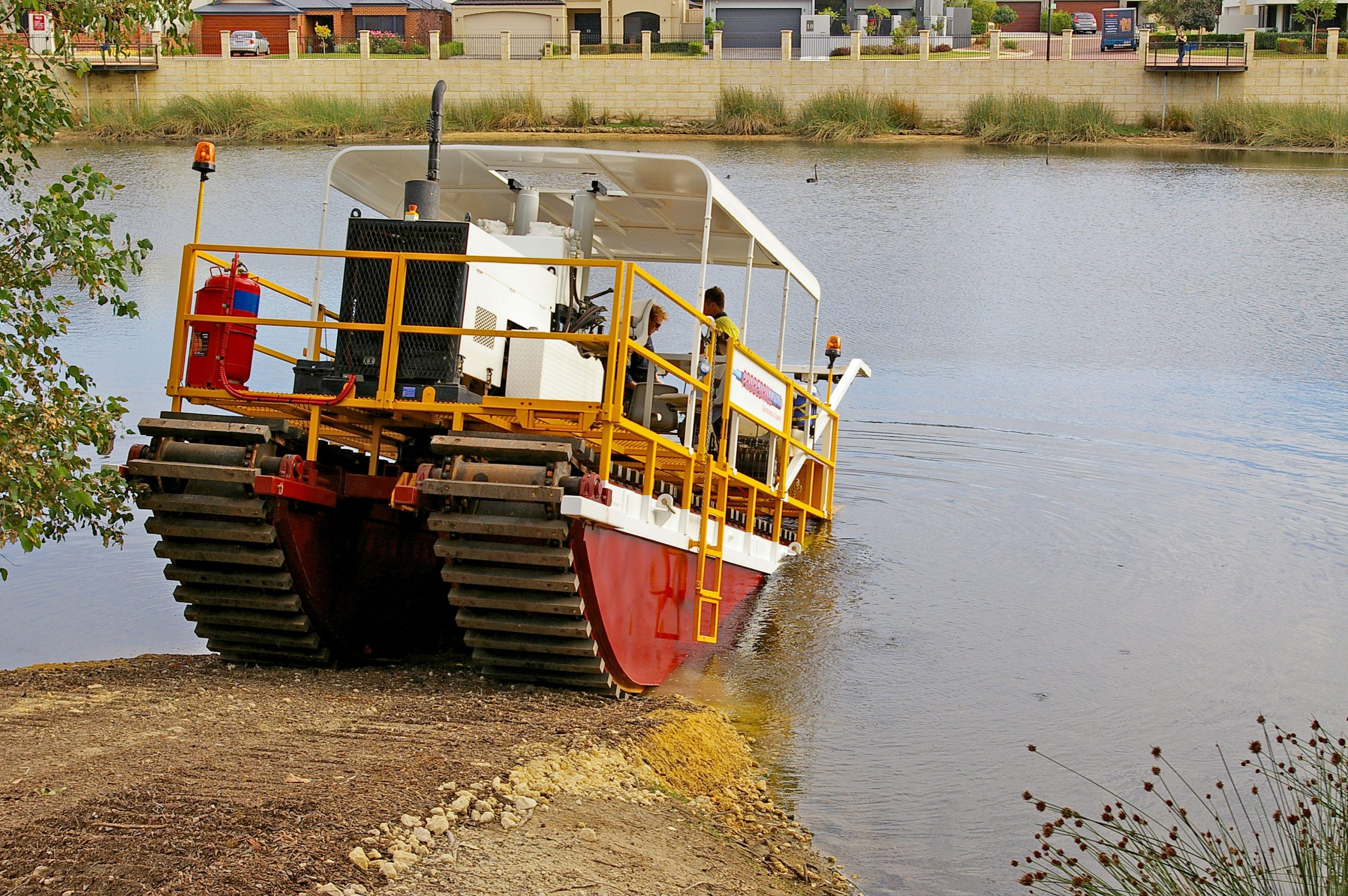

Mandurah Foreshore
Mandurah Foreshore

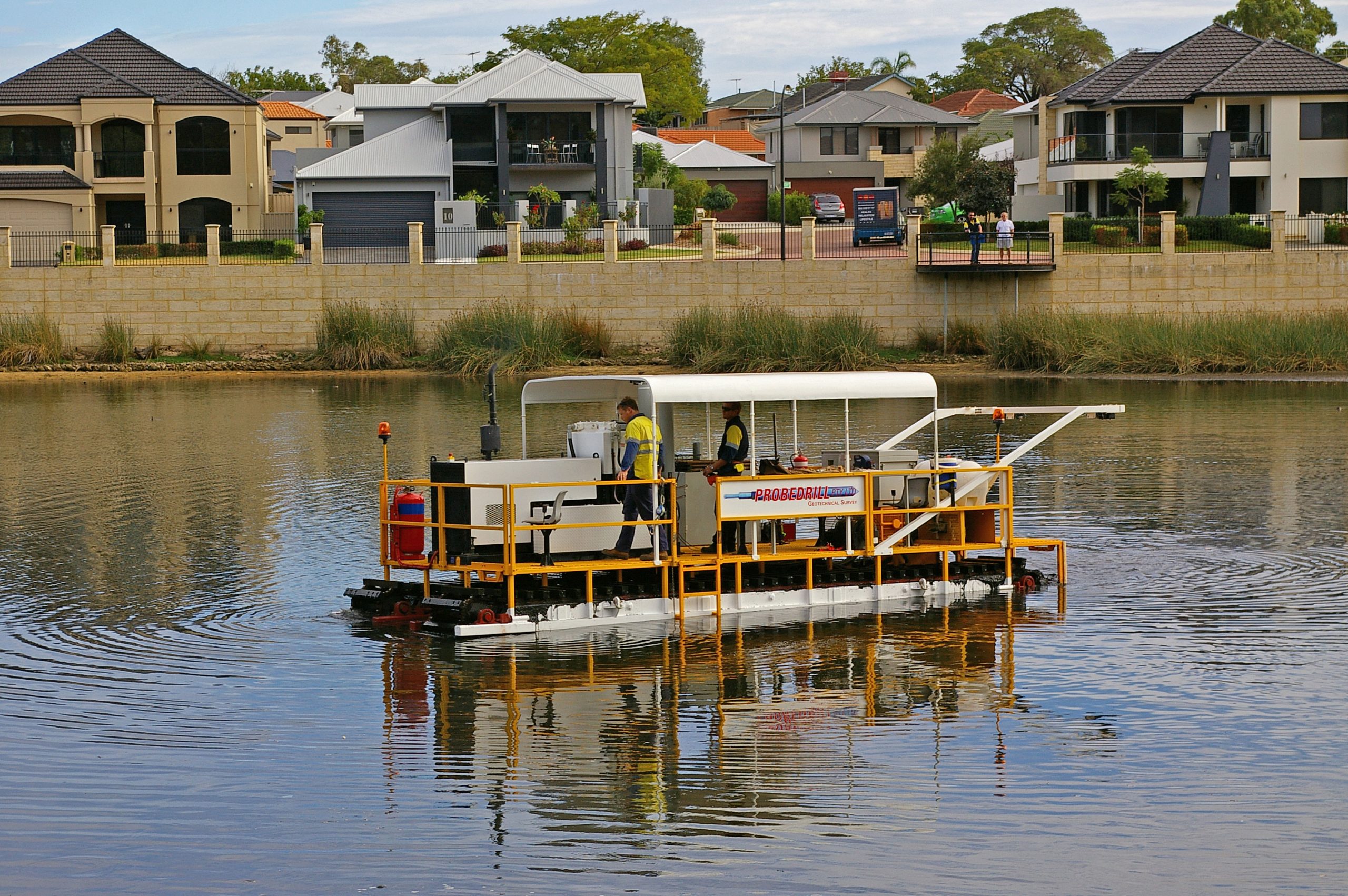

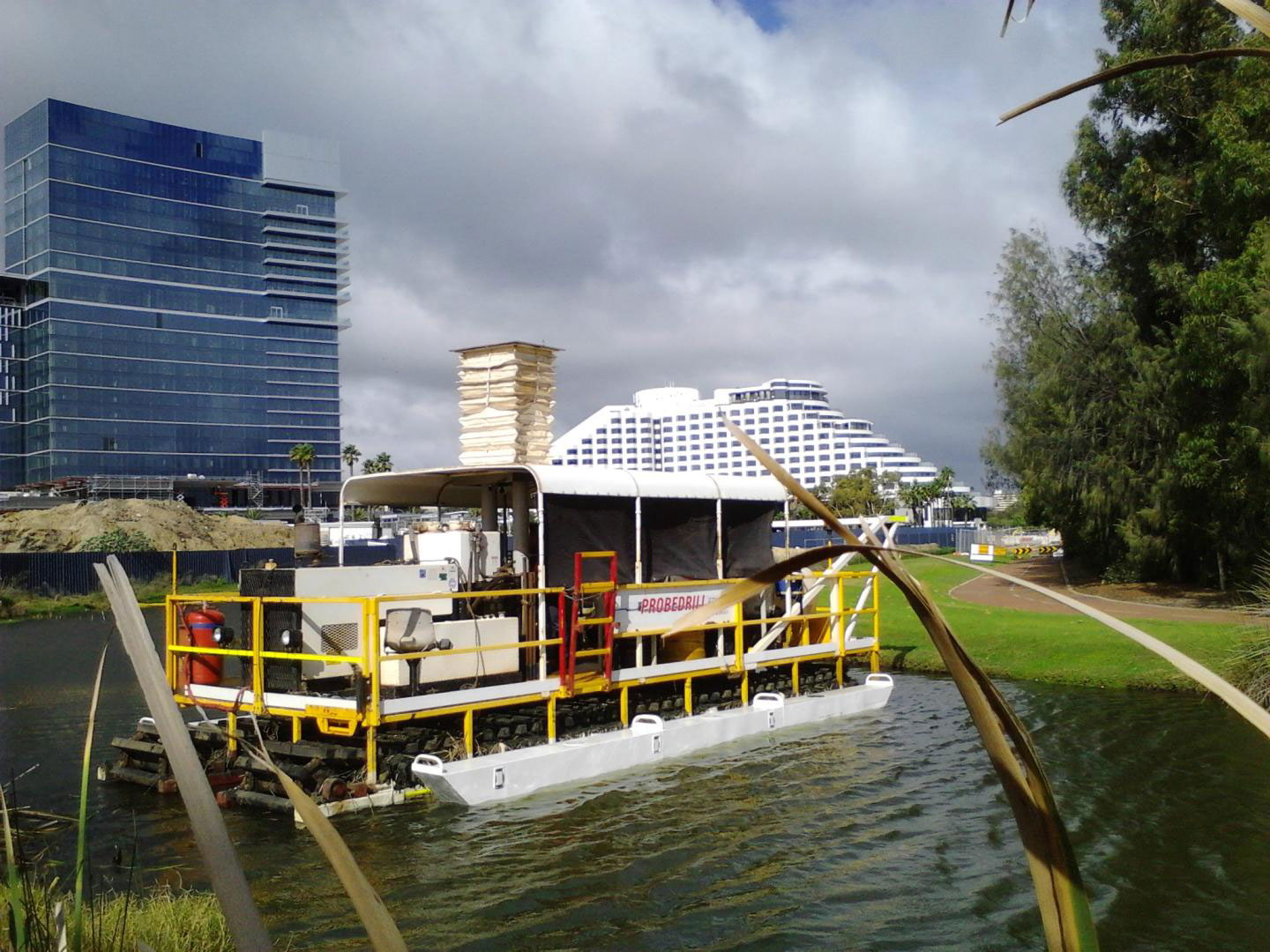

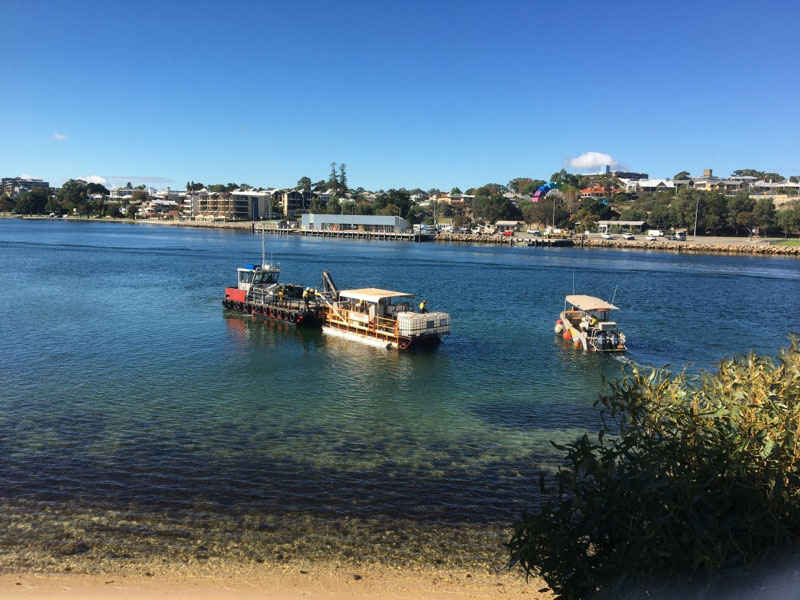

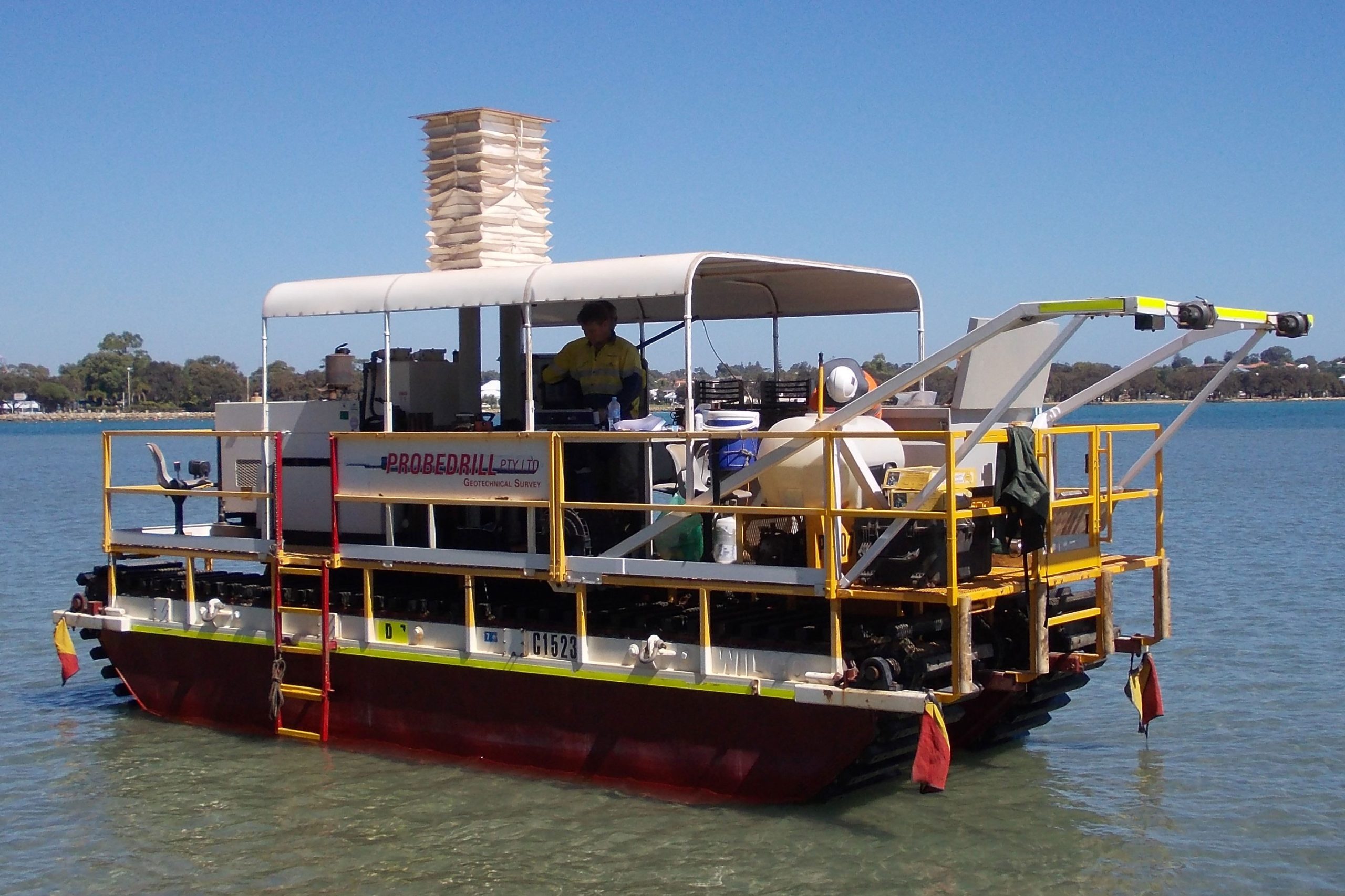

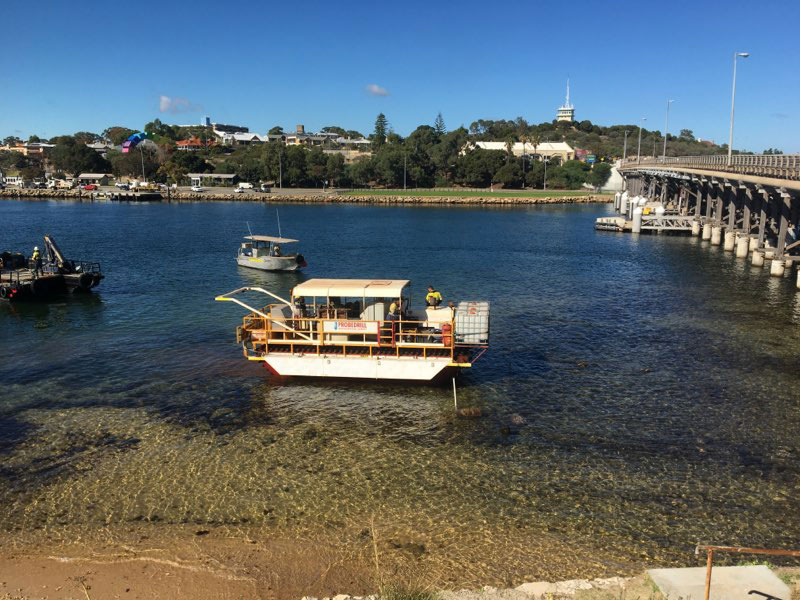

Marshbuggy - Swan River (spud legs raised)
Marshbuggy – Swan River (spud legs raised)

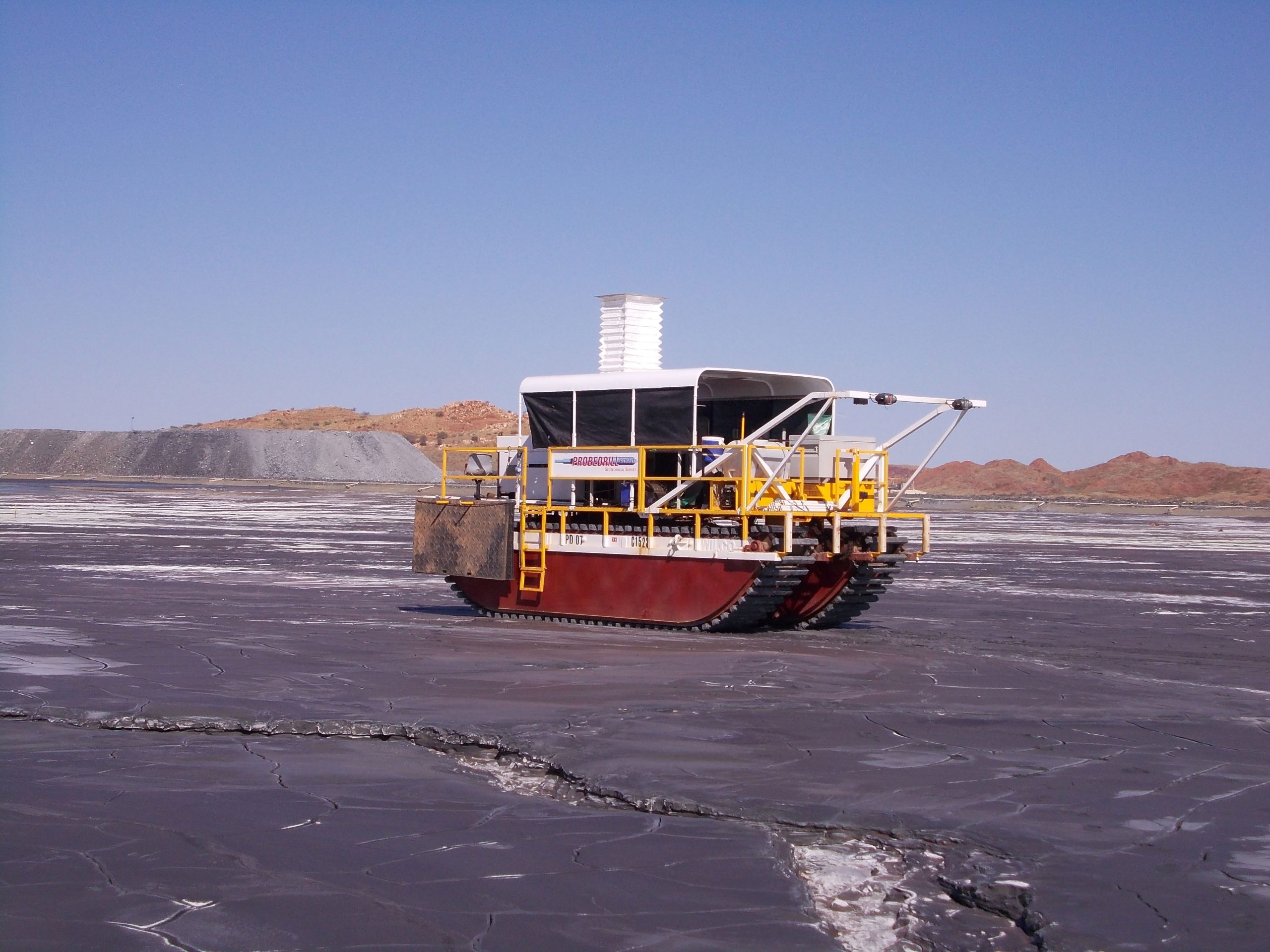

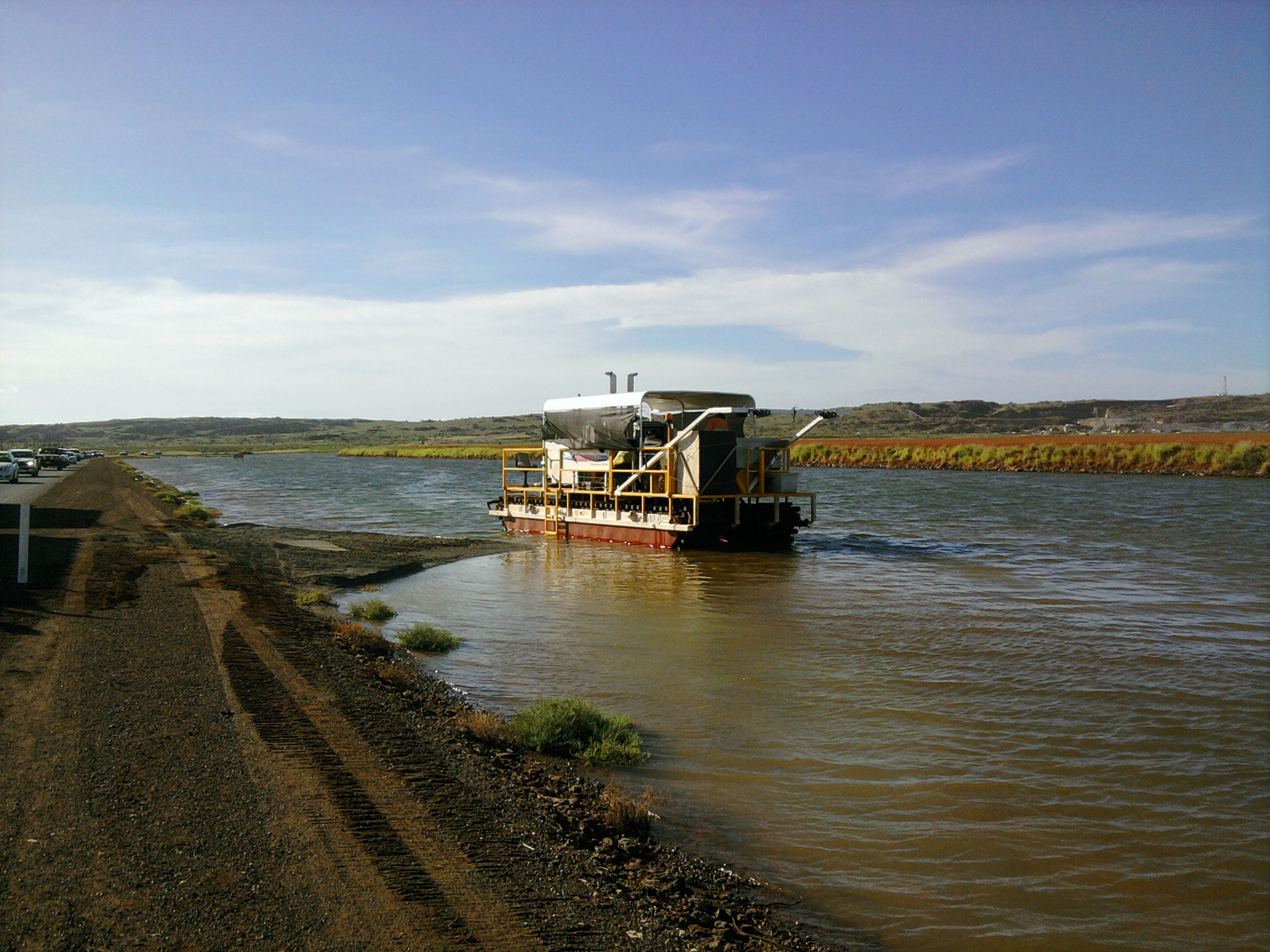

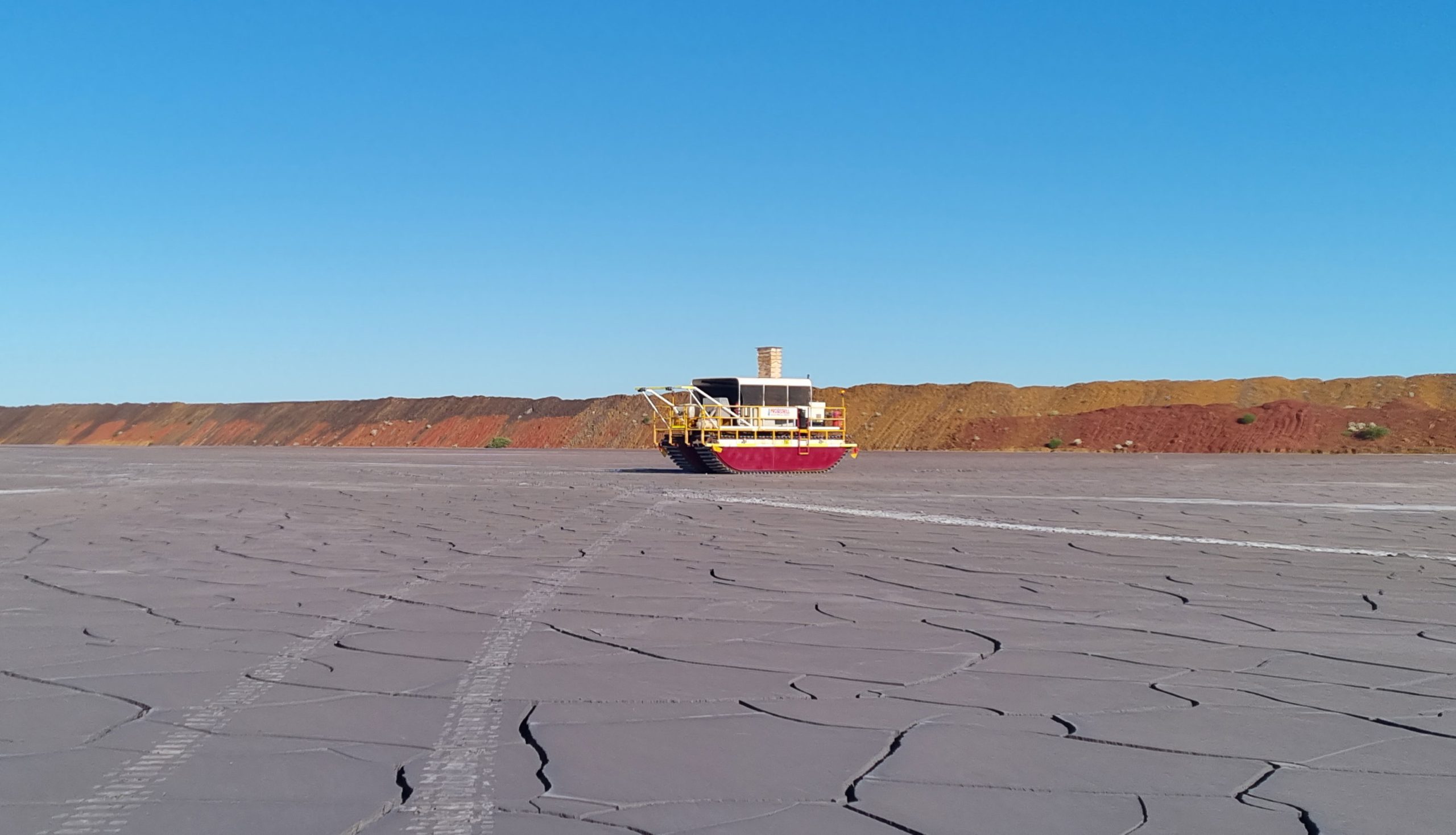

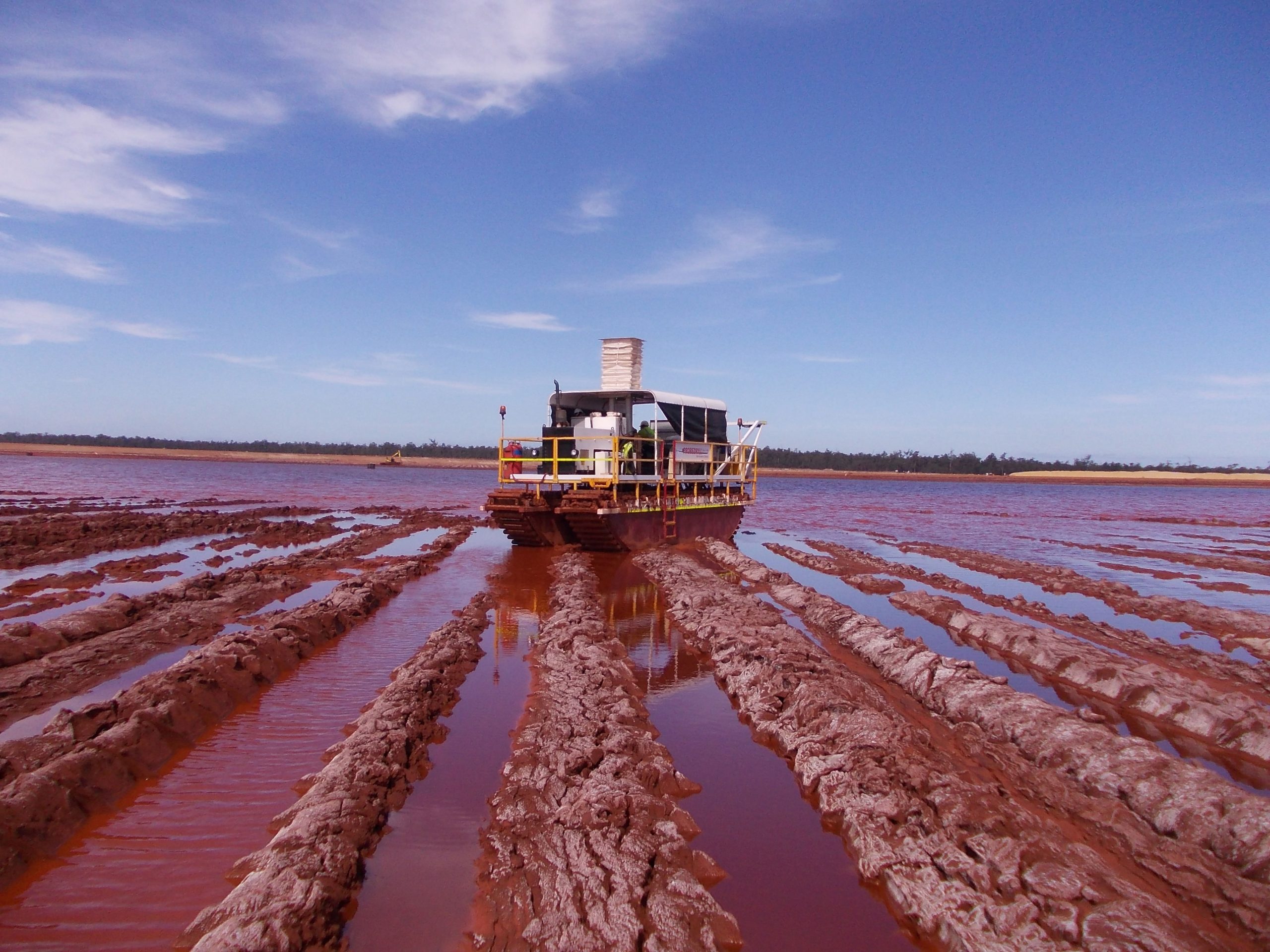

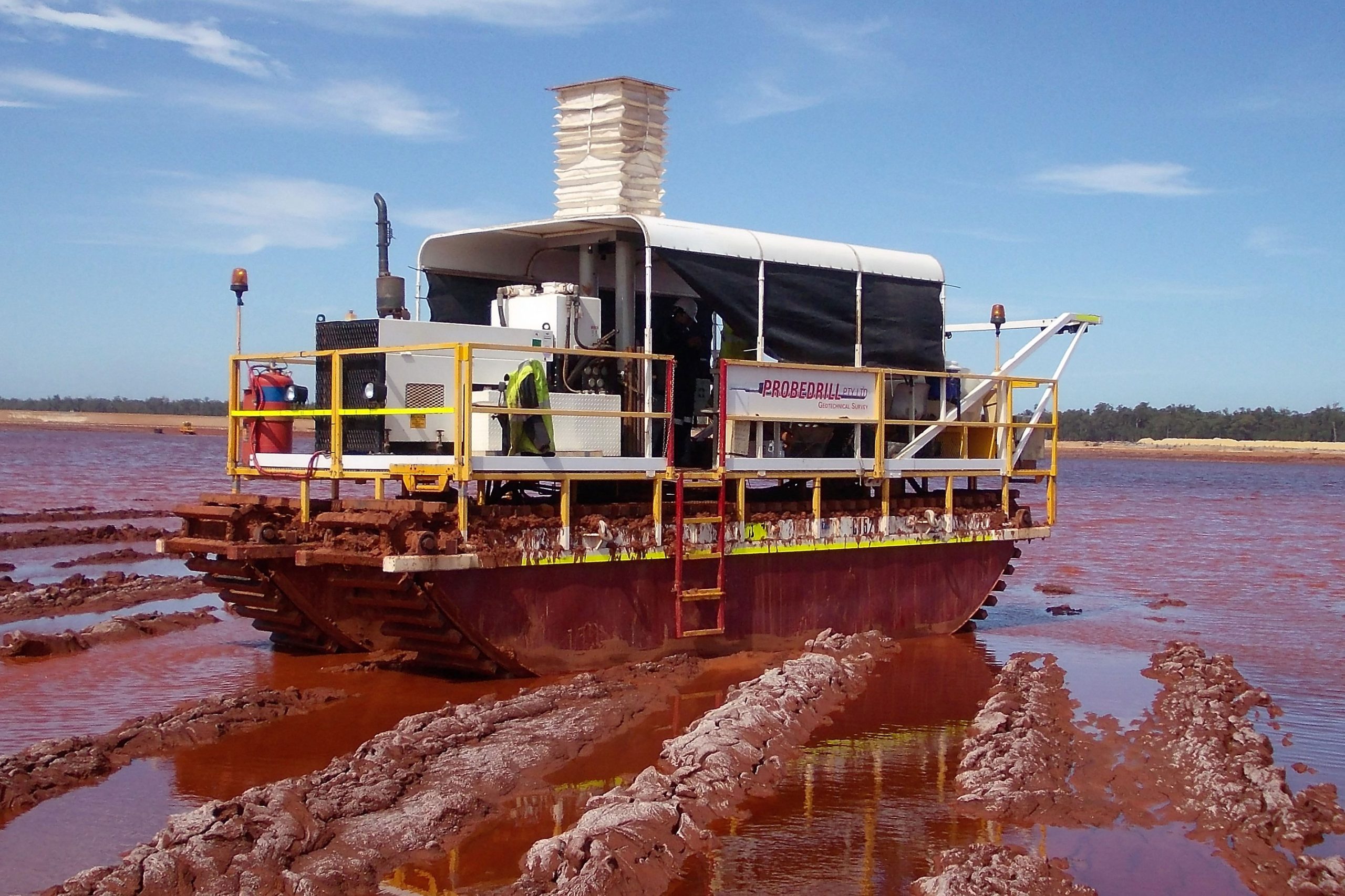

Marshbuggy on a TSF
Marshbuggy on a TSF

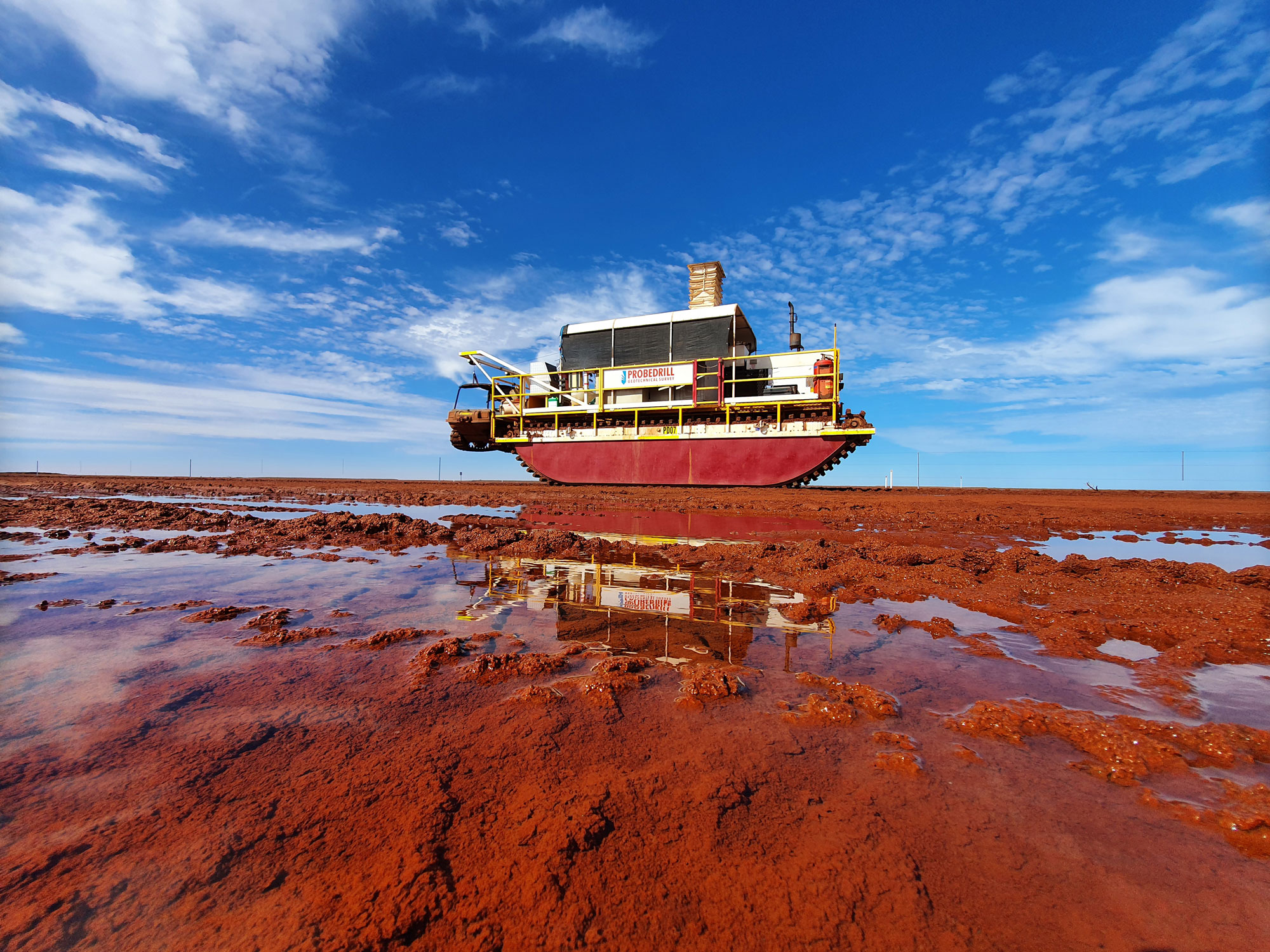

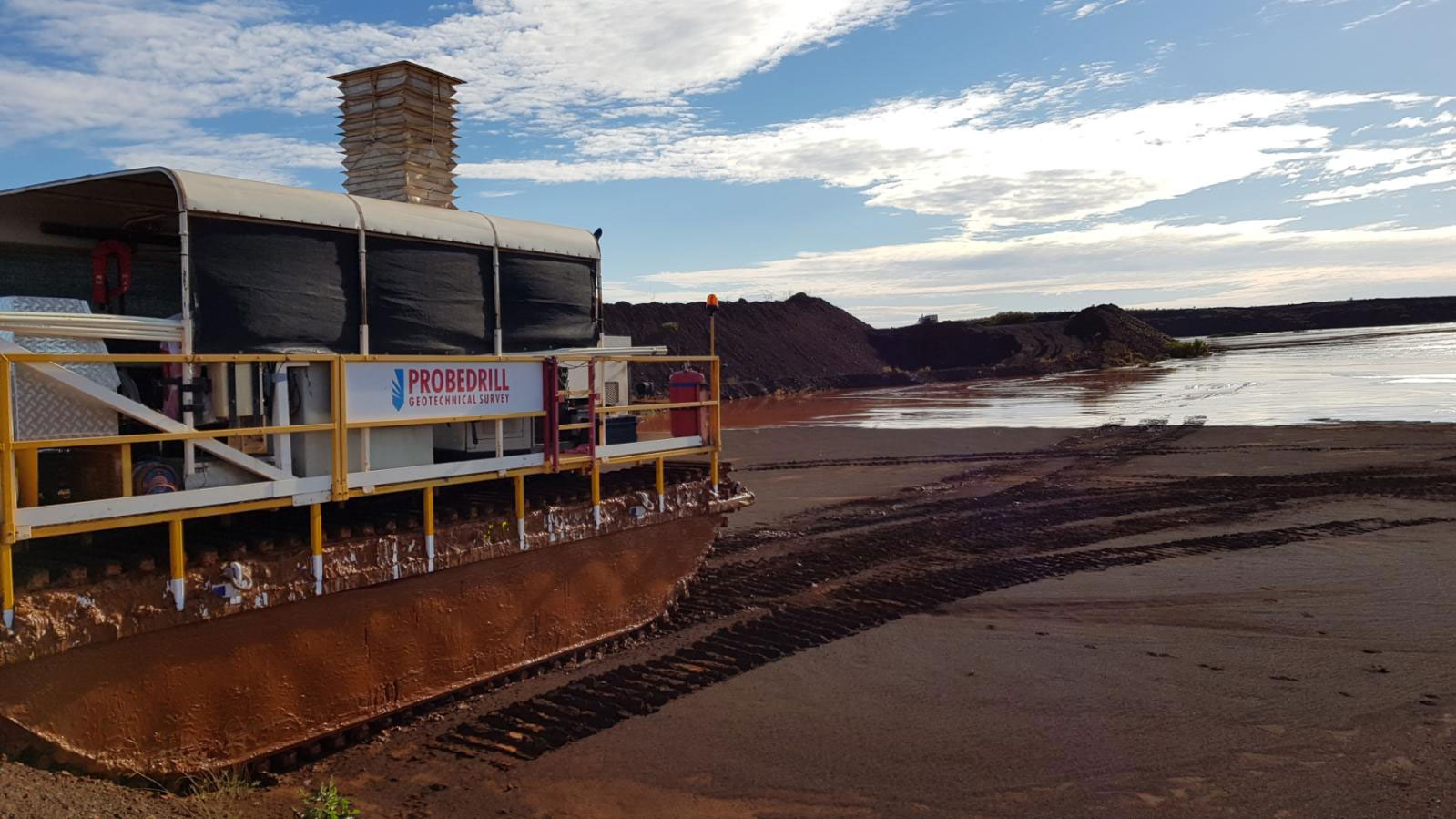

Mount Keith
Mount Keith

Mount Keith
Mount Keith
Mount Keith
Mount Keith
Newman, W.A
Newman, W.A

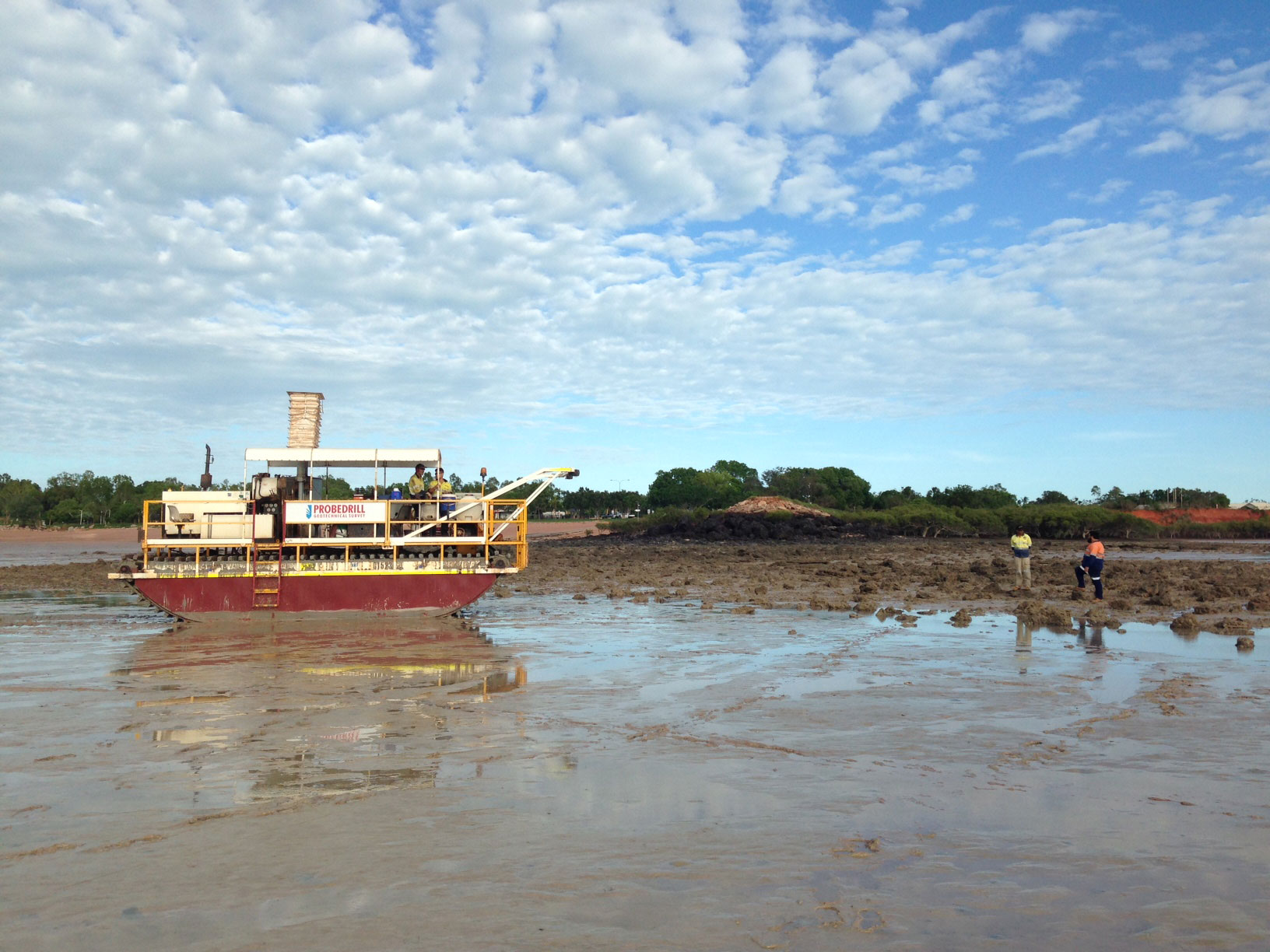

Port Hedland, W.A
Port Hedland, W.A

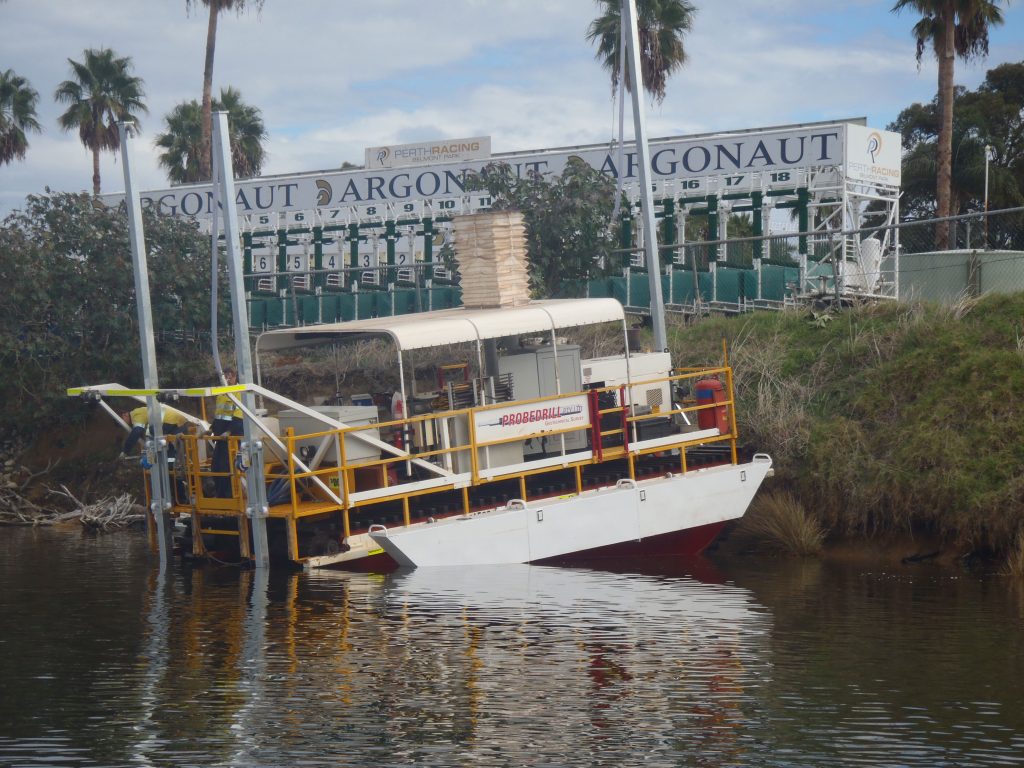

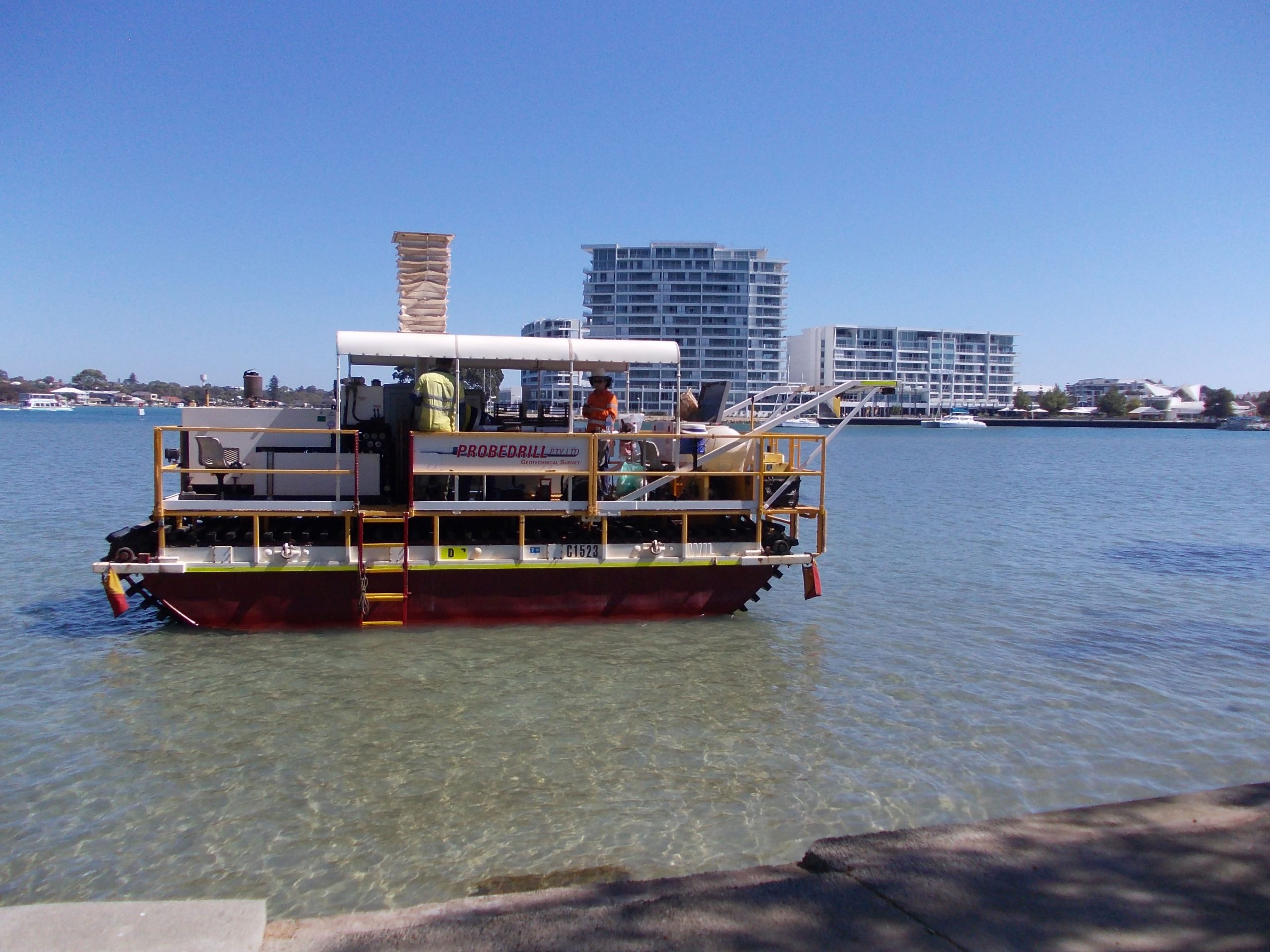

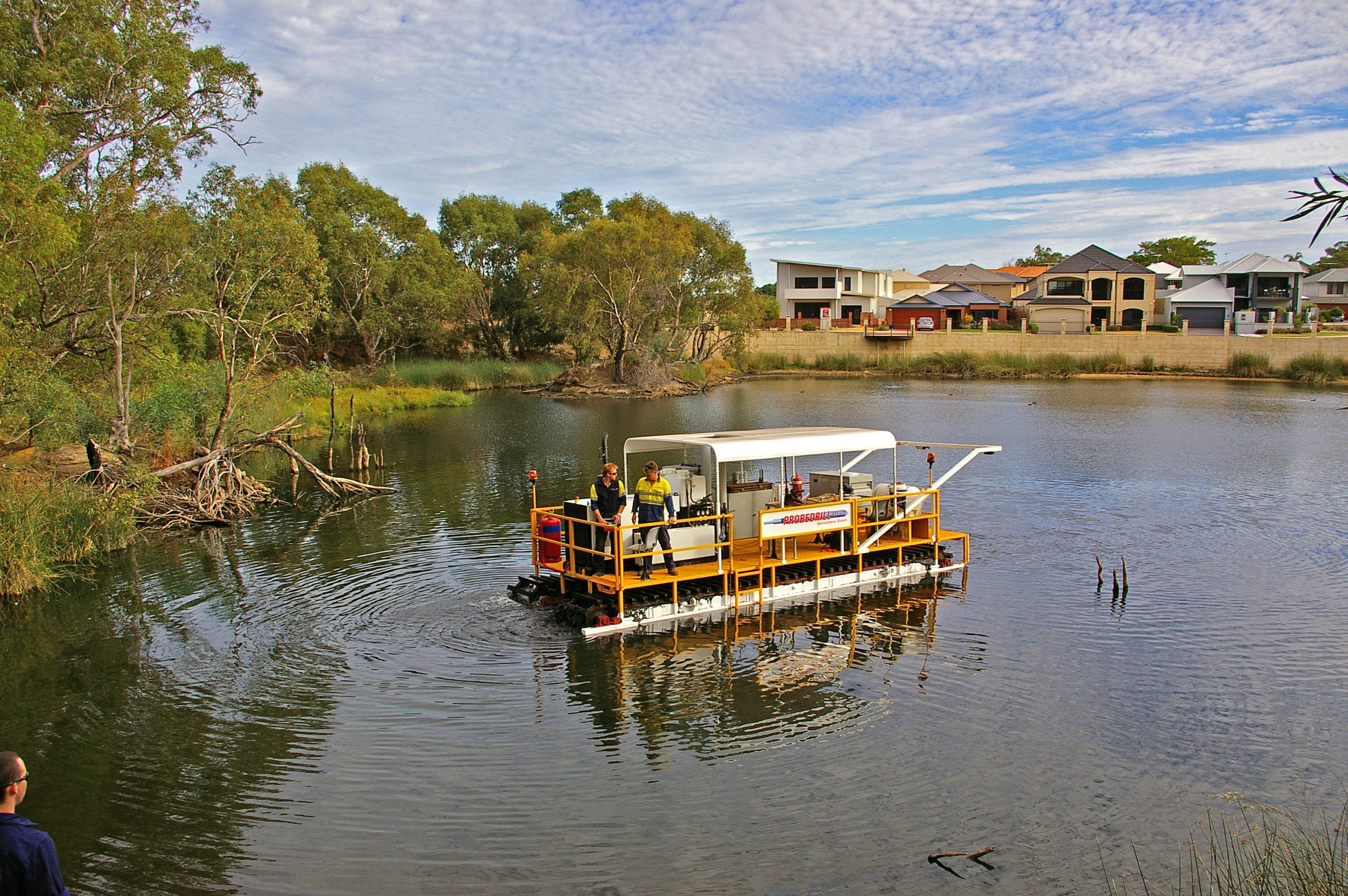

Probing in river using spud legs for stability and anchorage
Probing in river using spud legs for stability and anchorage

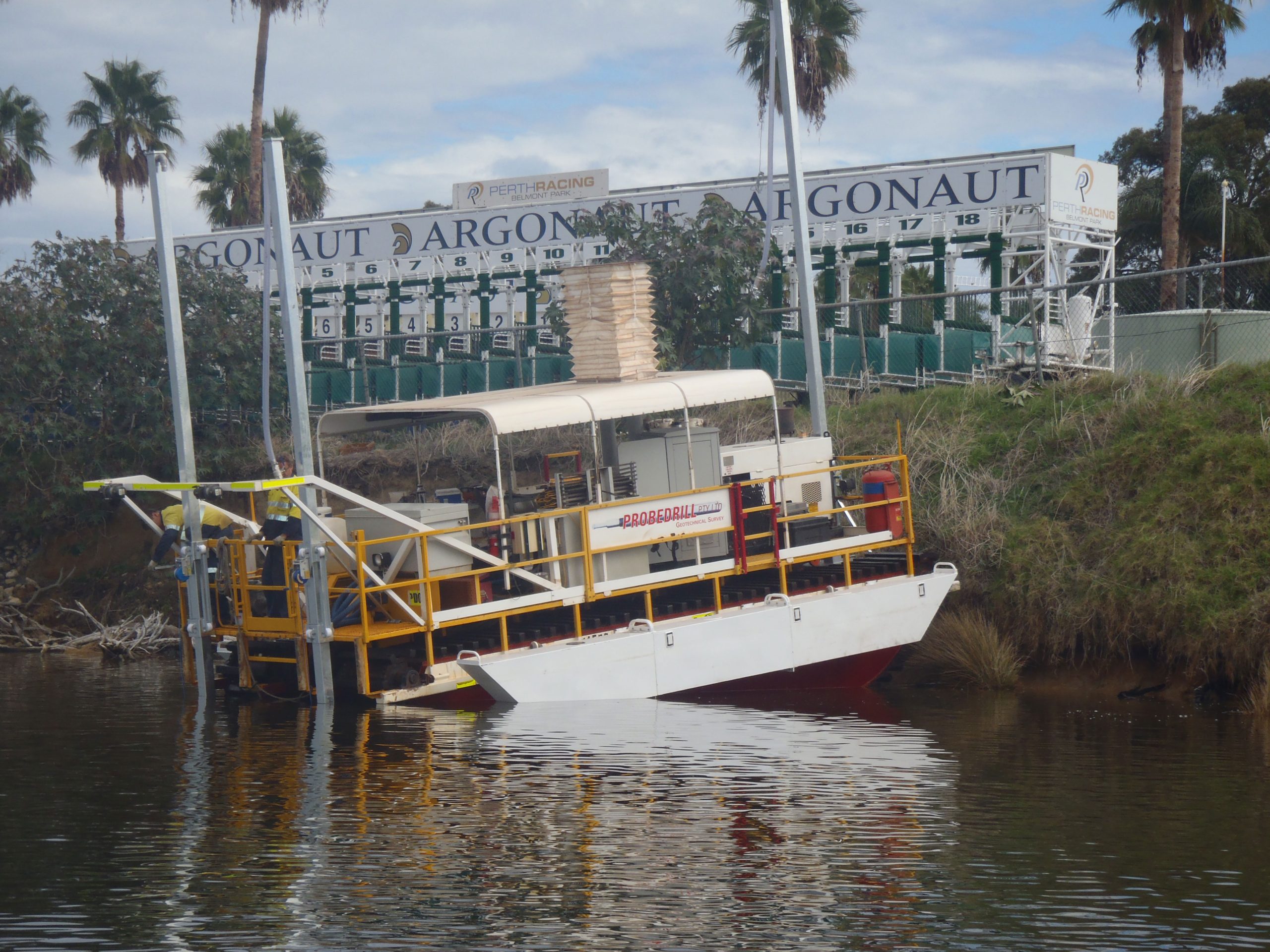

Probing on river embankment
