Home > CPT Rigs > 300kN Pushing Frame

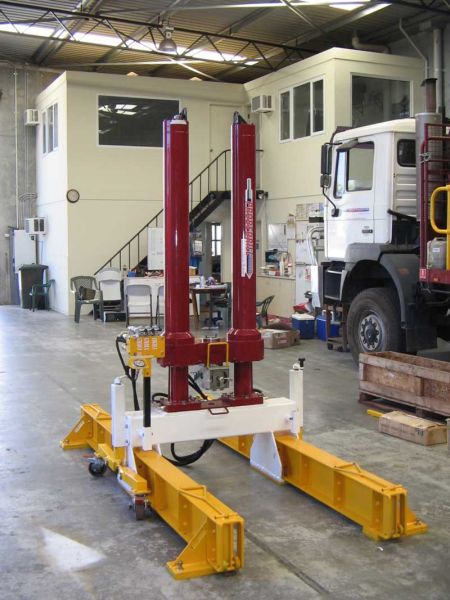

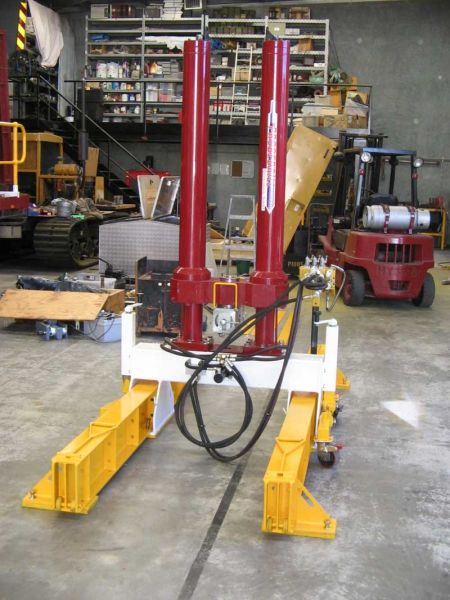

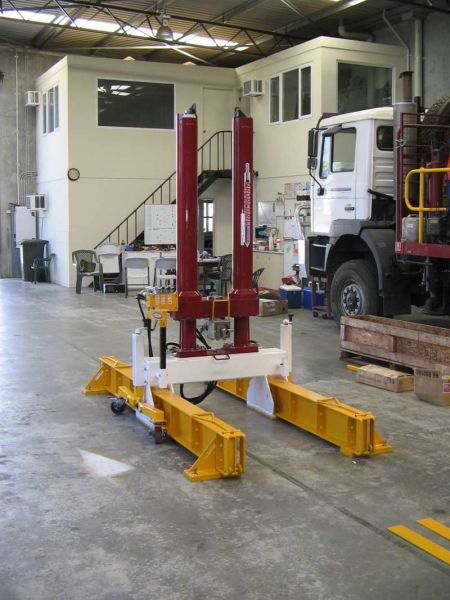

300kN Pushing Frame

CPT Rig Specifications
Height (while travelling): 2.5m
Height (while probing) 3.85 (max. height)m
Length: 1.2m
Width: 0.5m
For use in areas such as: Near-shore / Jack-up barge

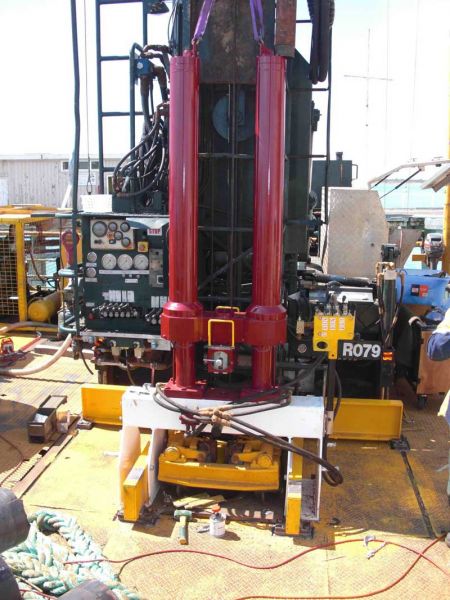

Our 300kN Portable CPT Pushing Frame is perfect for mounting on jack-up barges to conduct near-shore CPT testing.  With the addition of equipment developed by Probedrill in-house, we have the ability to probe from zero mudline (undisturbed) in any conditions.

PUSHING FRAME SPECIFICATIONS

Overall Dimensions

Width: 0.5m; Length: 1.2m; Height: 2.5m (max 3.85m)

Gross Weight

Approx. 750kg

Pushing Force

Max. 300kN

Hydraulic Cylinders

2 x vertical hydraulic cylinders (4” Bore, 1 ¾” Piston), stroke 1350mm with piston protection covers

HYDRAULIC POWER PACK SPECIFICATIONS

Overall Dimensions

Width: 0.73m; Length: 2.0m; Height: 0.87m

Gross Weight

Approx. 750kg (with fuel/oil)

Engine

Hatz Silentpack diesel engine; 9.1kW @ 3,000rpm

Hydraulic Pump

Roxworth hydraulic pump – max. capacity of 80L/min

Hydraulic Tanks

180 L

Transport

Possible with crane or forklift (light weight aluminium frame with forklift ports)

Additional

2 x optional Hydraulic Power Packs available to suit barge layout

EQUIPMENT / FEATURES
300kN Pushing Frame

  • Hydraulic control unit, mounted on a console next to the pushing frame
  • Retractable wheel assembly for portability
  • Hydraulic-operated catching clamp incorporated into sounding beam

Other Equipment / Features

  • Portable CPT rod rack and CPT rods
  • Portable CPT computer and printer
  • Hydraulic Hoses: available in 10m or 50m lengths
  • 2 x 3m I-beams for spreading push/pull load
  • Aluminium toolbox for transport and workplace storage

SERVICES
Geotechnical Services provided

  • CPT, CPTu, SCPT, SCPTu (1, 5, 10, & 15 tonne cones)
  • Ball Penetrometer
  • DMT, SDMT
  • Dissipation Testing
  • CPT casing for additional rod support
  • Vane Shear Testing (Electrictronically driven)
  • Vibrating Wire Installation
  • Water Sampling
  • Standpipe Installation (20mm and 32mm)
