Home > CPT Rigs > Seabed CPT

Seabed CPT

CPT Rig Specifications
Height: max: 2.8m - min: 2.3m
Length: 2.3m
Width: 2.3m

The Seabed CPT Pushing Frame can be used for geotechnical testing associated with:

  • Pipelines
  • Ports & harbours
  • Dredging and Construction projects
  • Cable route surveys
  • Off-shore wind farms
  • Environmental Survey
  • Wave Energy
The subsea system is used for determining near shore seabed soil conditions.  It is designed to be deployed from a stable positioned vessel or platform, allowing for rapid, live CPT readings.  It can be levelled (up to 15 degrees).

The chain drive action of the Seabed CPT allows for a continuous push of 20mm / sec, recording data until target depth or refusal.

Click here to see a video of it in action!

Pushing Frame Specifications:

Overall Dimensions

Length: 2.3m; Width: 2.3m; Height: 2.8m (min. 2.3m)

Frame Weight

5,700kg

Pushing Force/Capacity

Max. 150kN @ 15t reaction weight; Without suction anchor: 40kN

Hydraulic Motors

2 x hydrostatic hydraulic drive motors with 2 x 300kN Reduction hubs

Operations

Chain Drive

Sounding Speed

20mm / second

 Removal Speed

40mm / second

Operating Depth

Currently Max. 1500m

Services Provided:

Output:

CPT, CPTu (10 & 15 tonne cones), Soil Sampling, SDMT

qc, fs, u, Rf, inclination

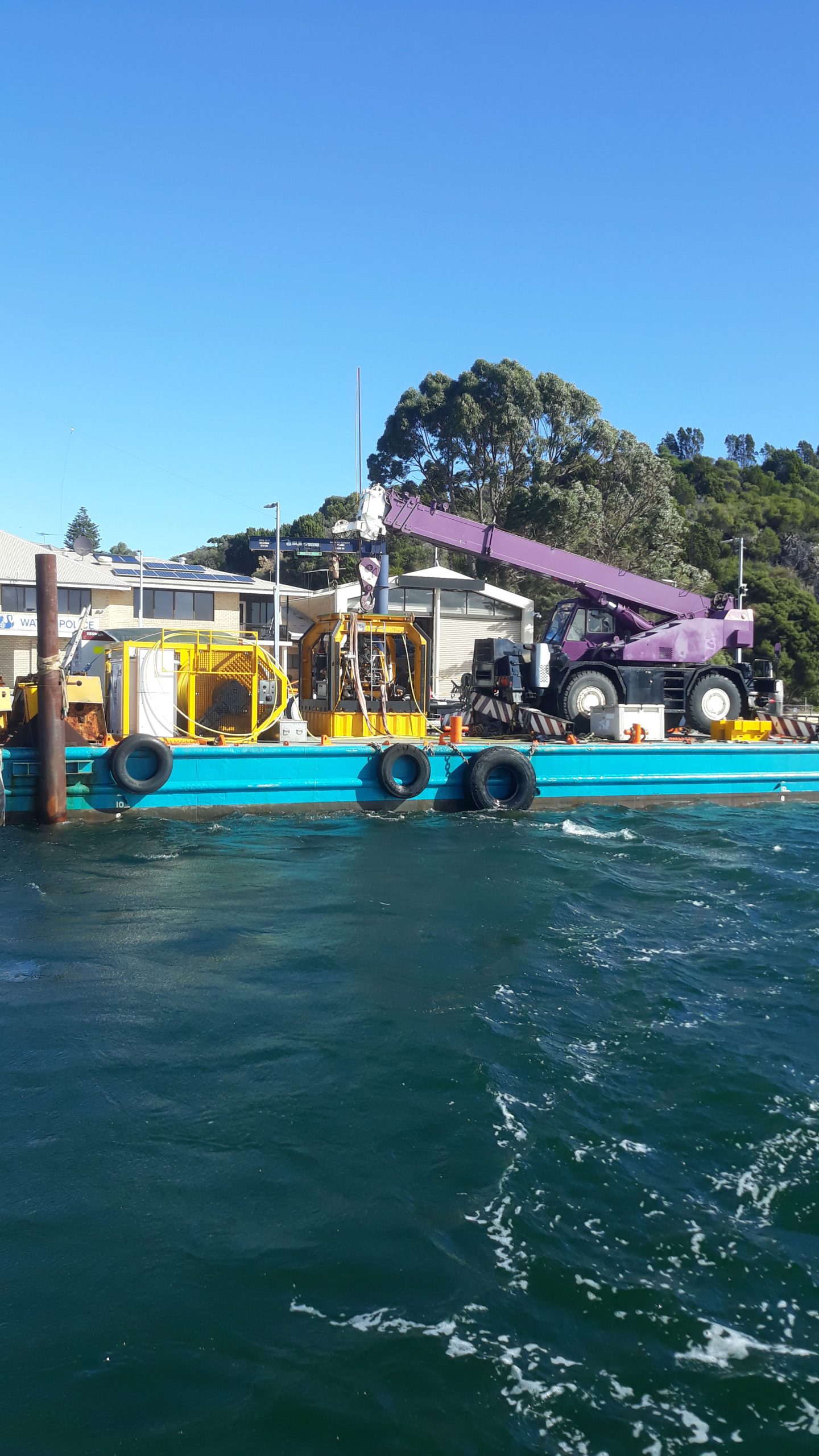

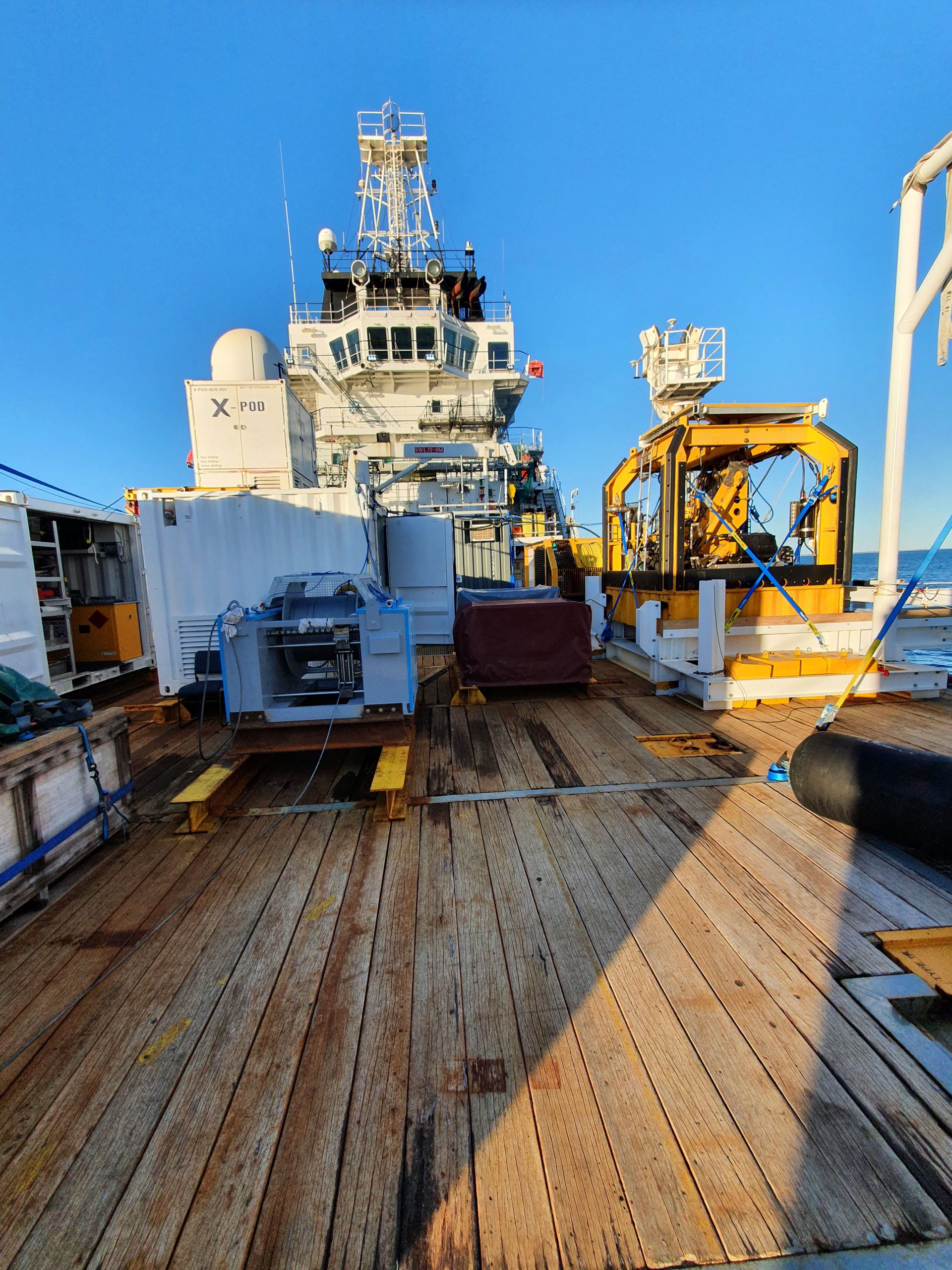

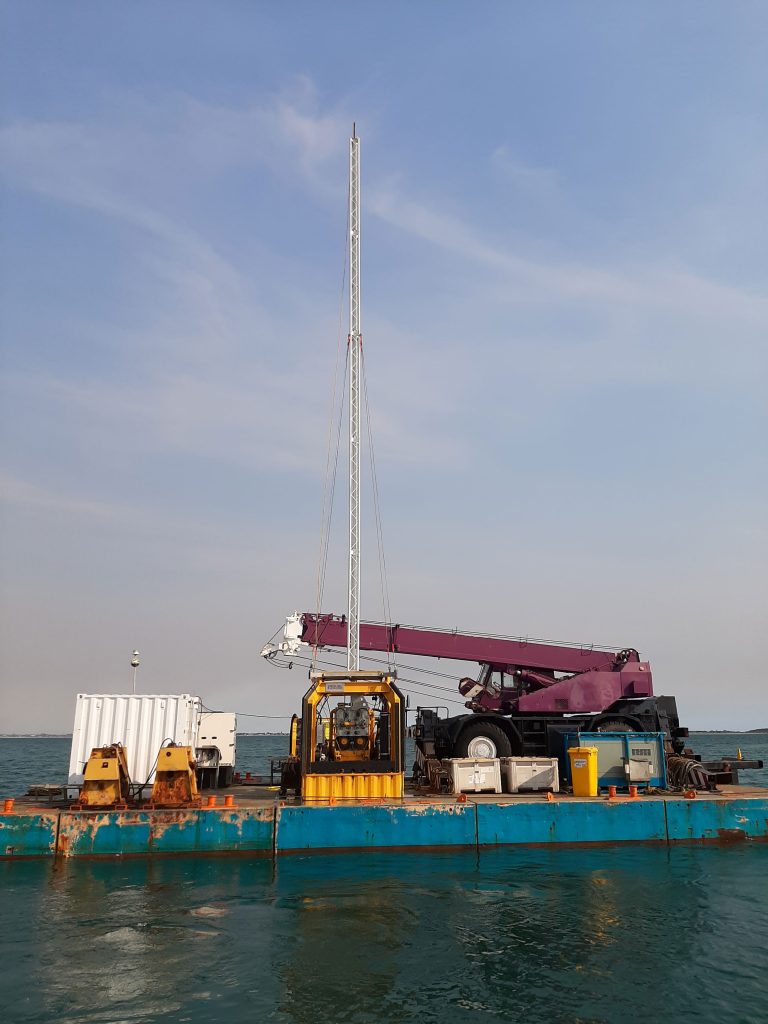

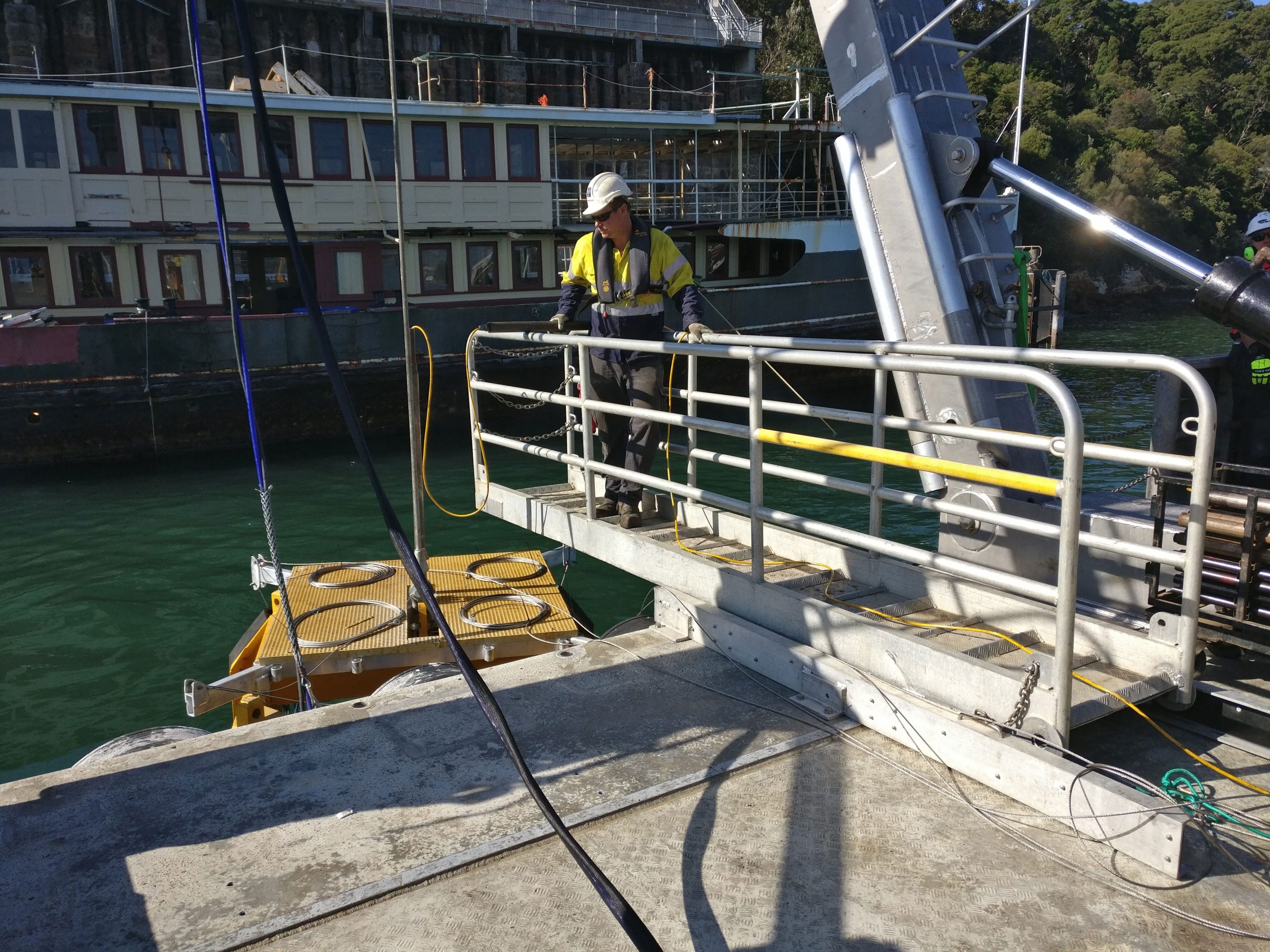

working off barge

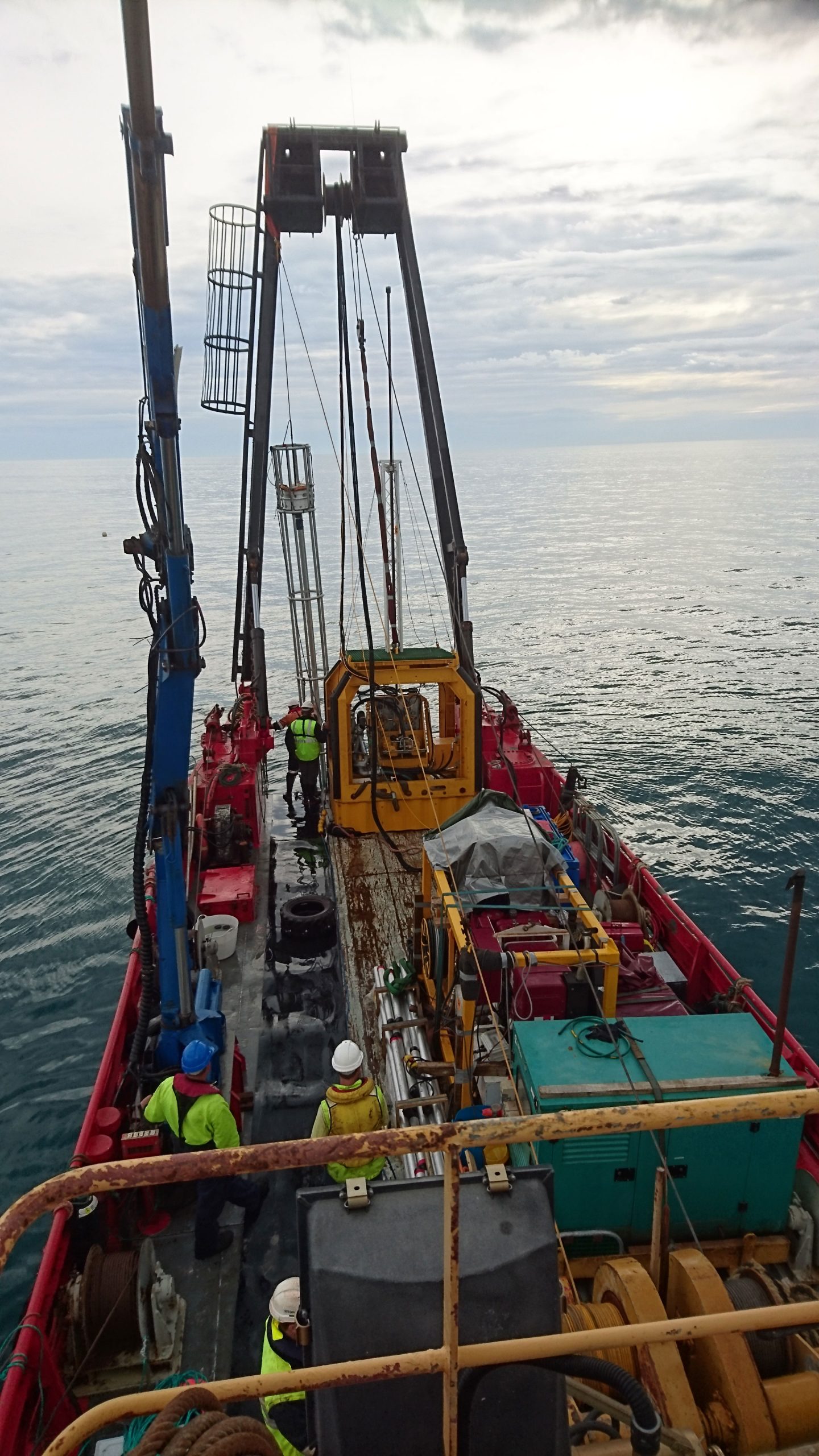

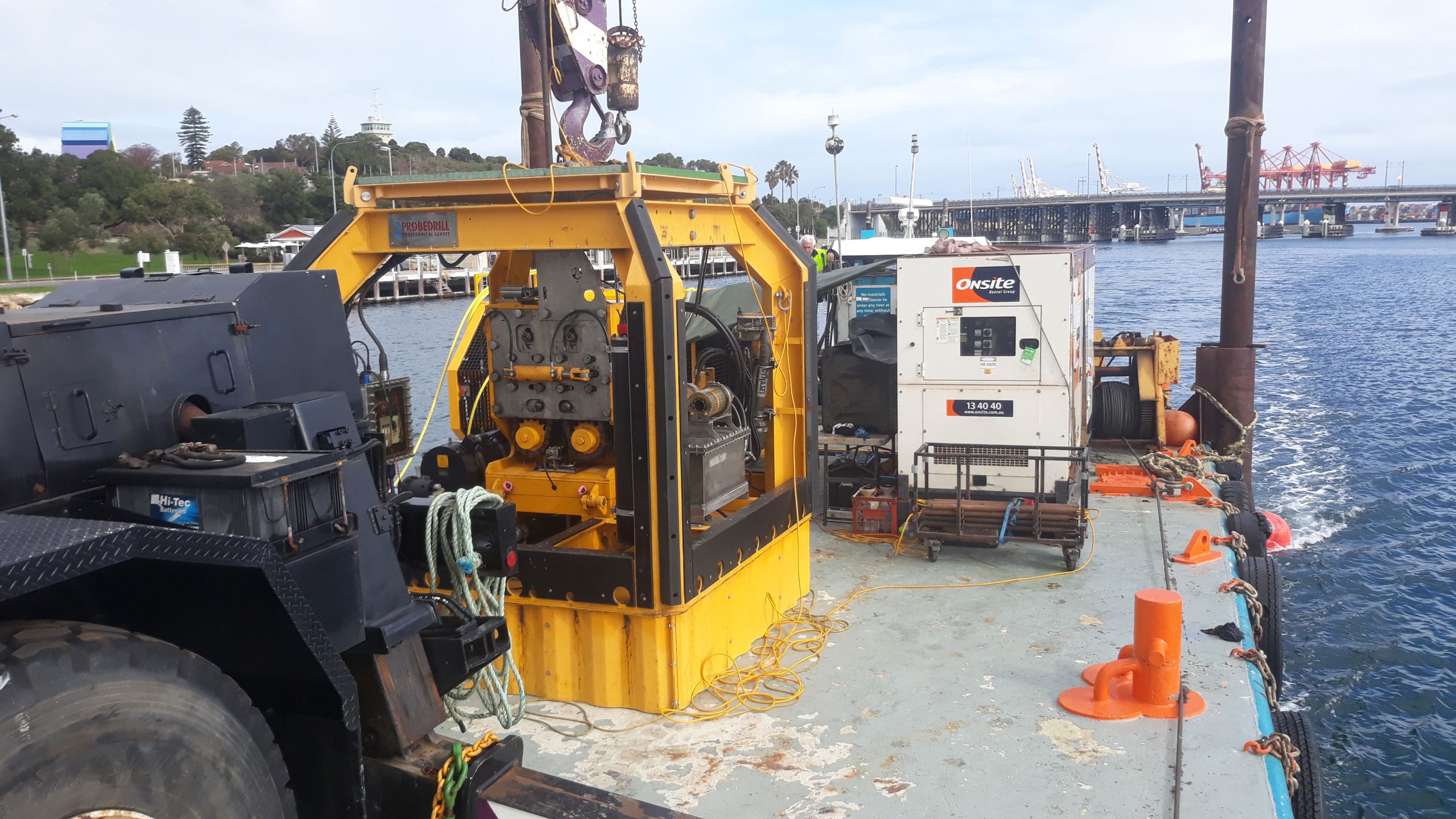

working off barge

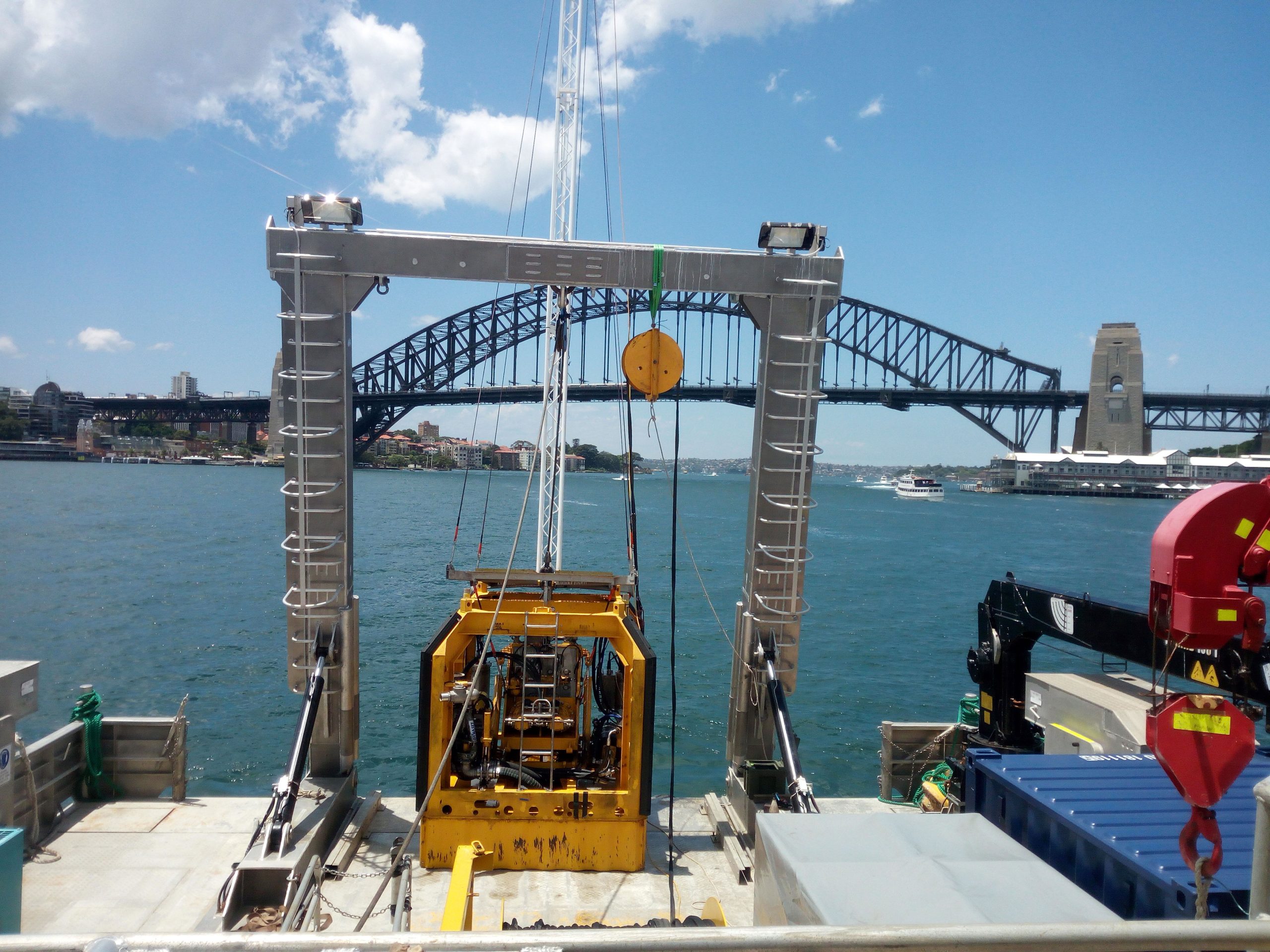

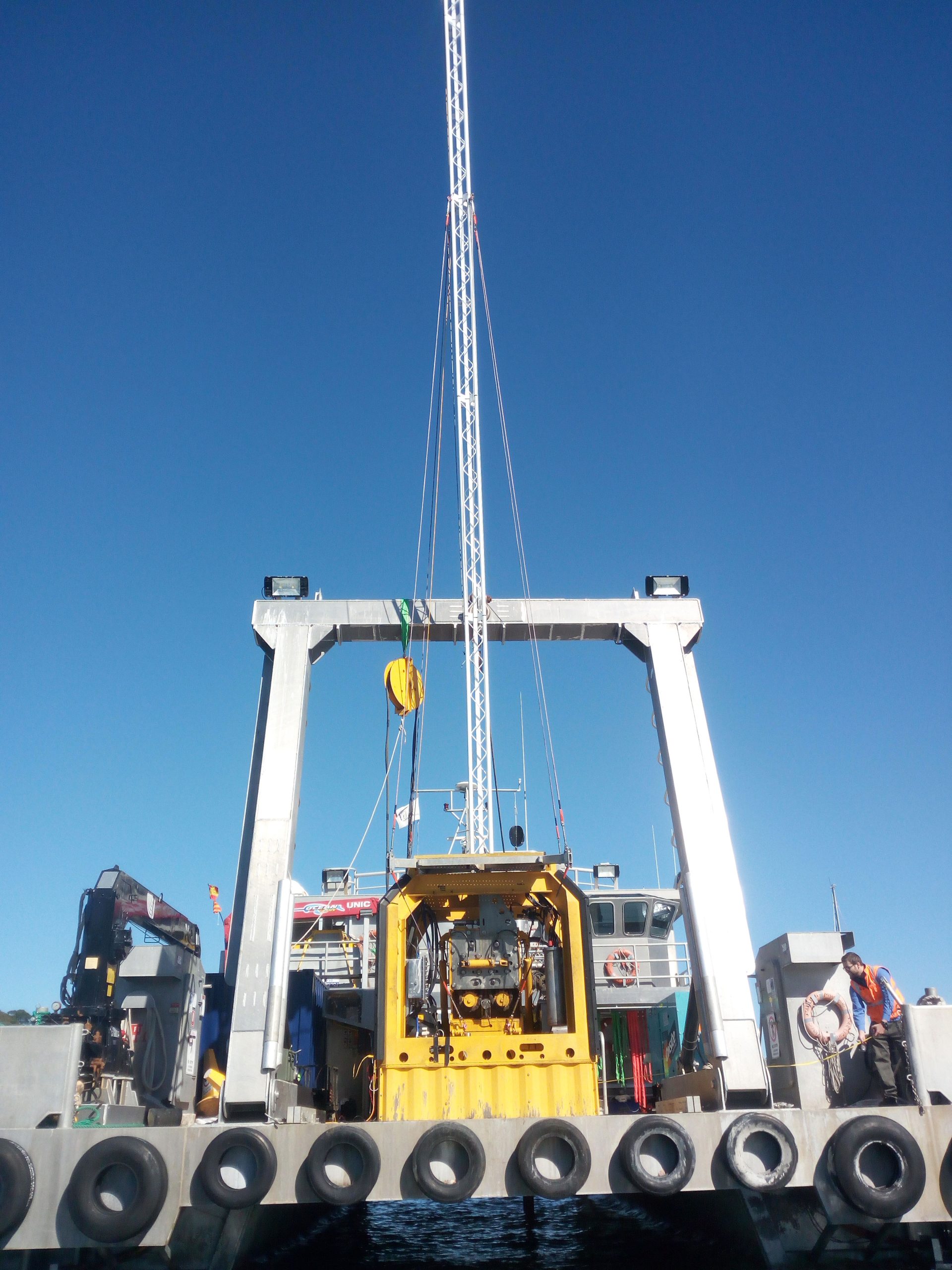

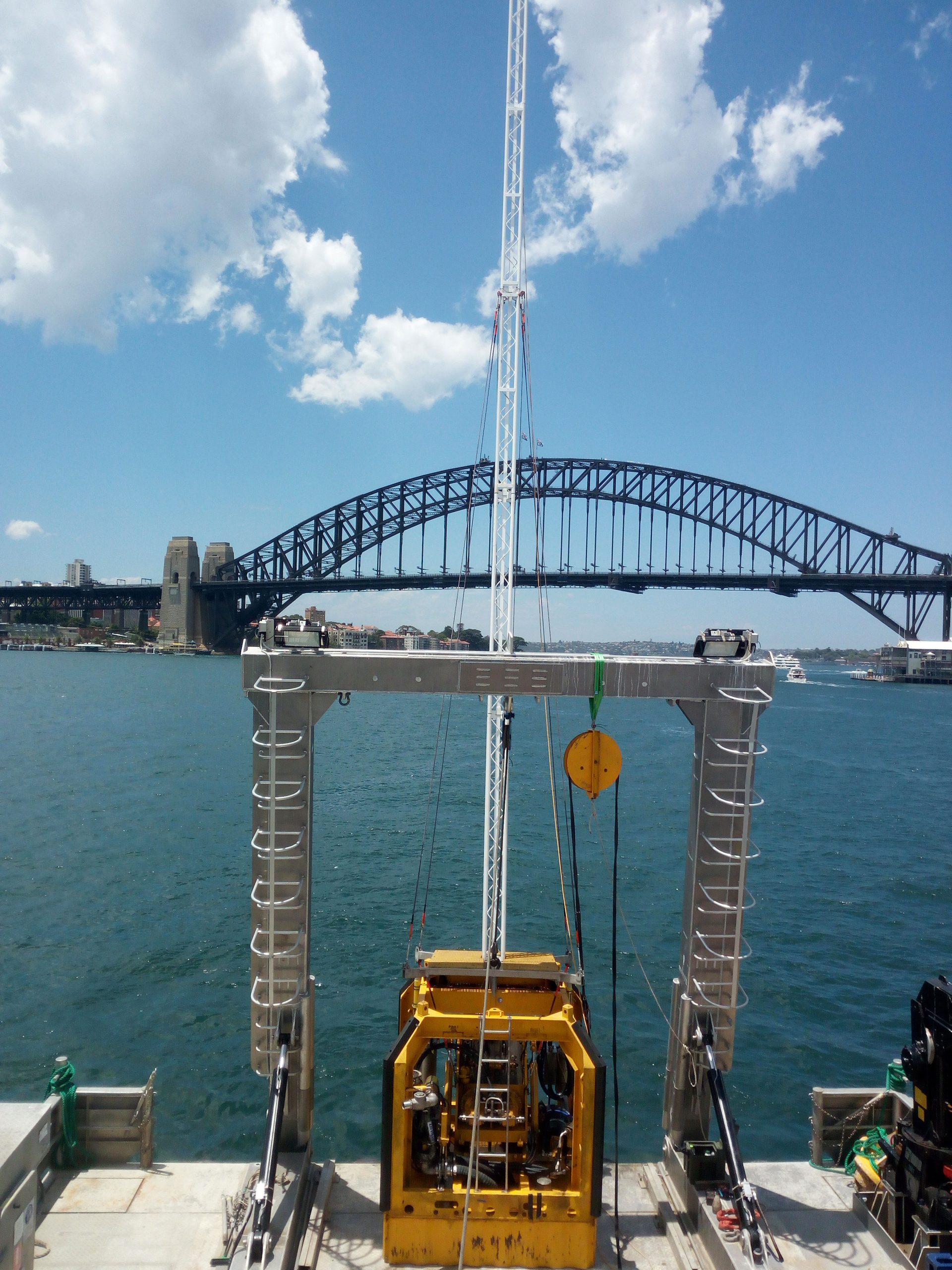

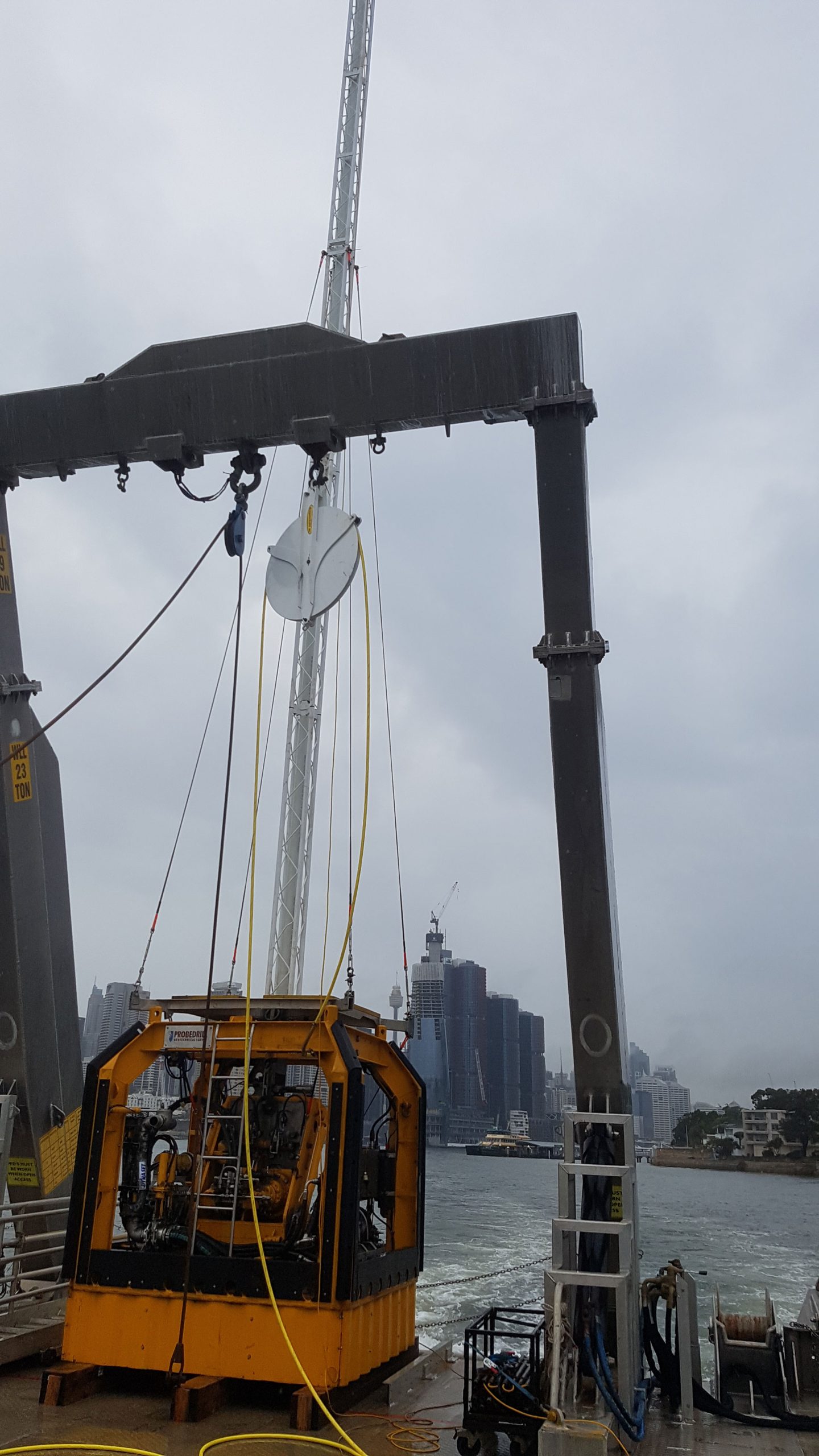

Sydney Harbour

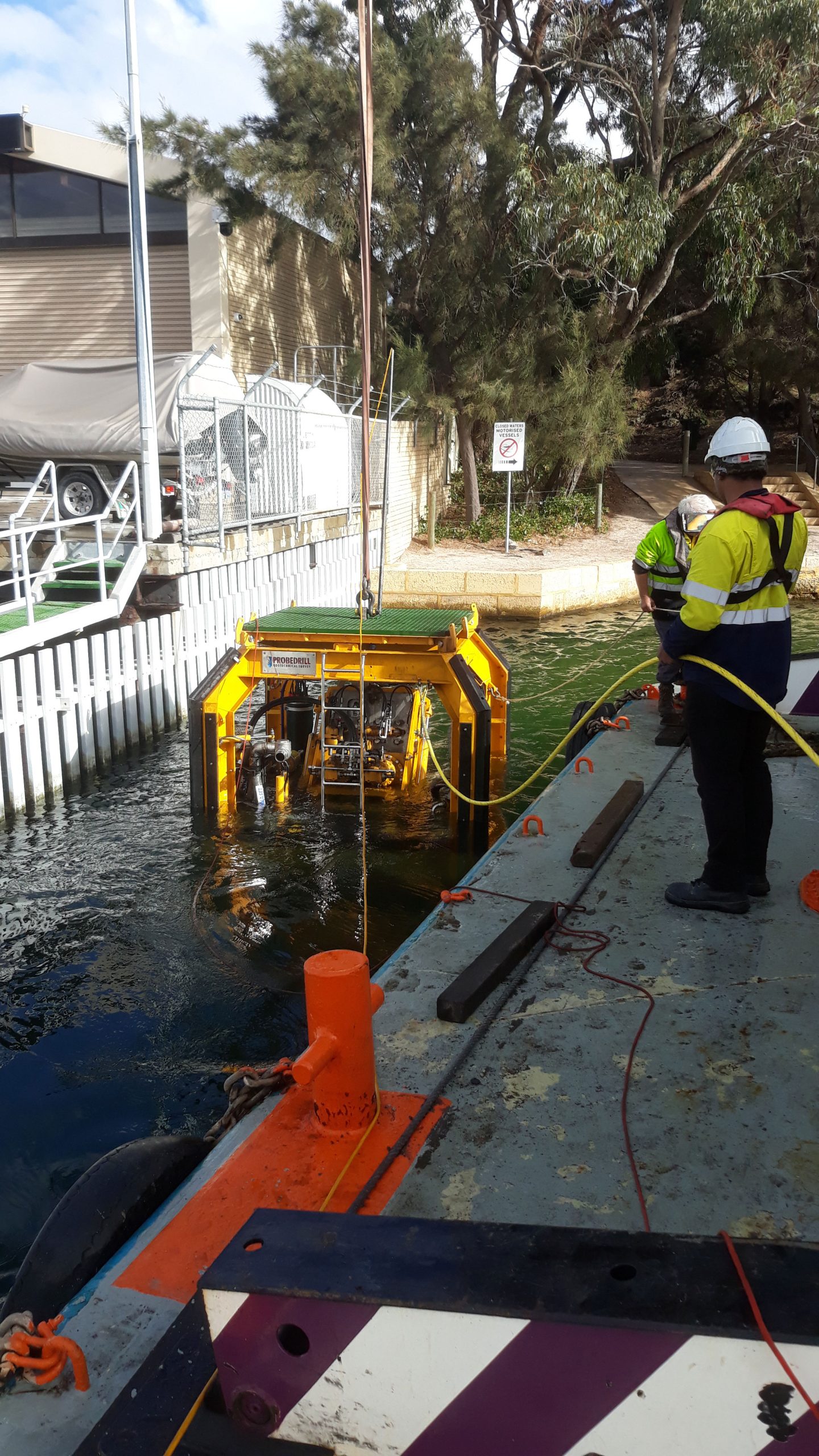

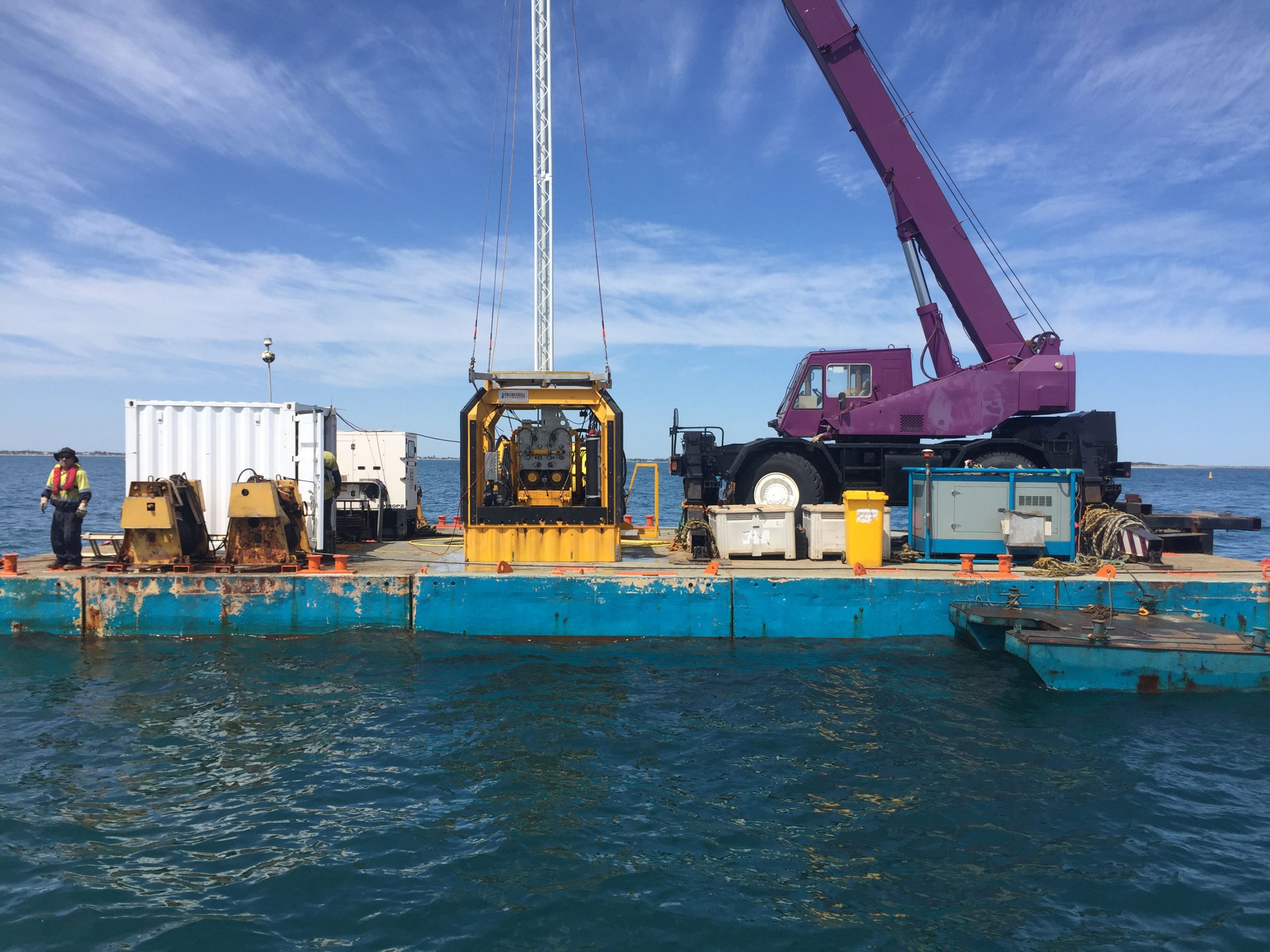

Subsea CPT: Newcastle

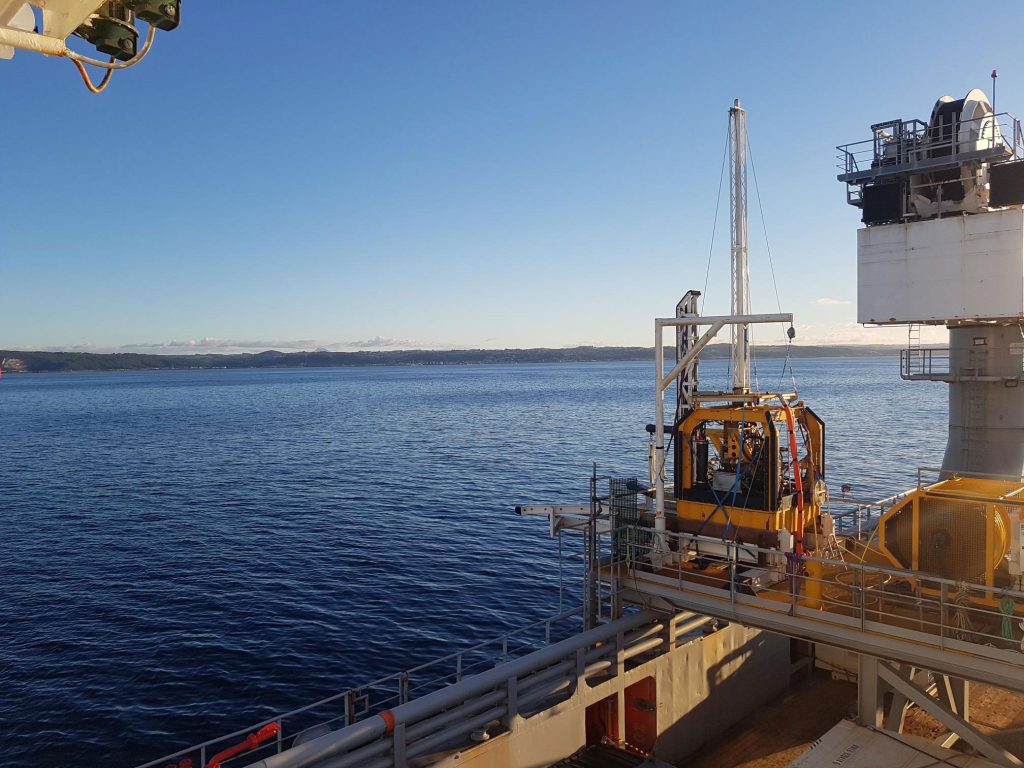

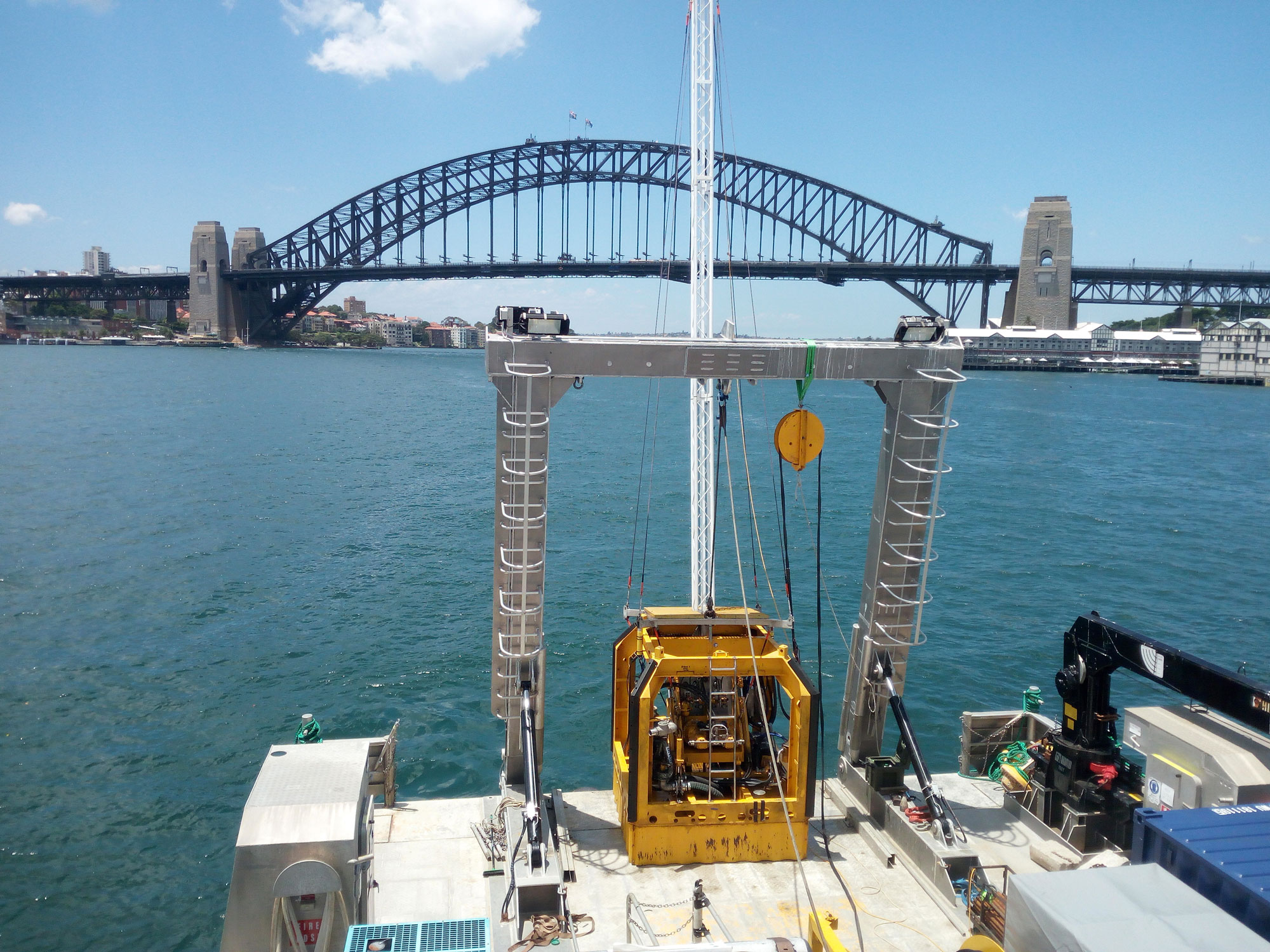

Sydney Harbour

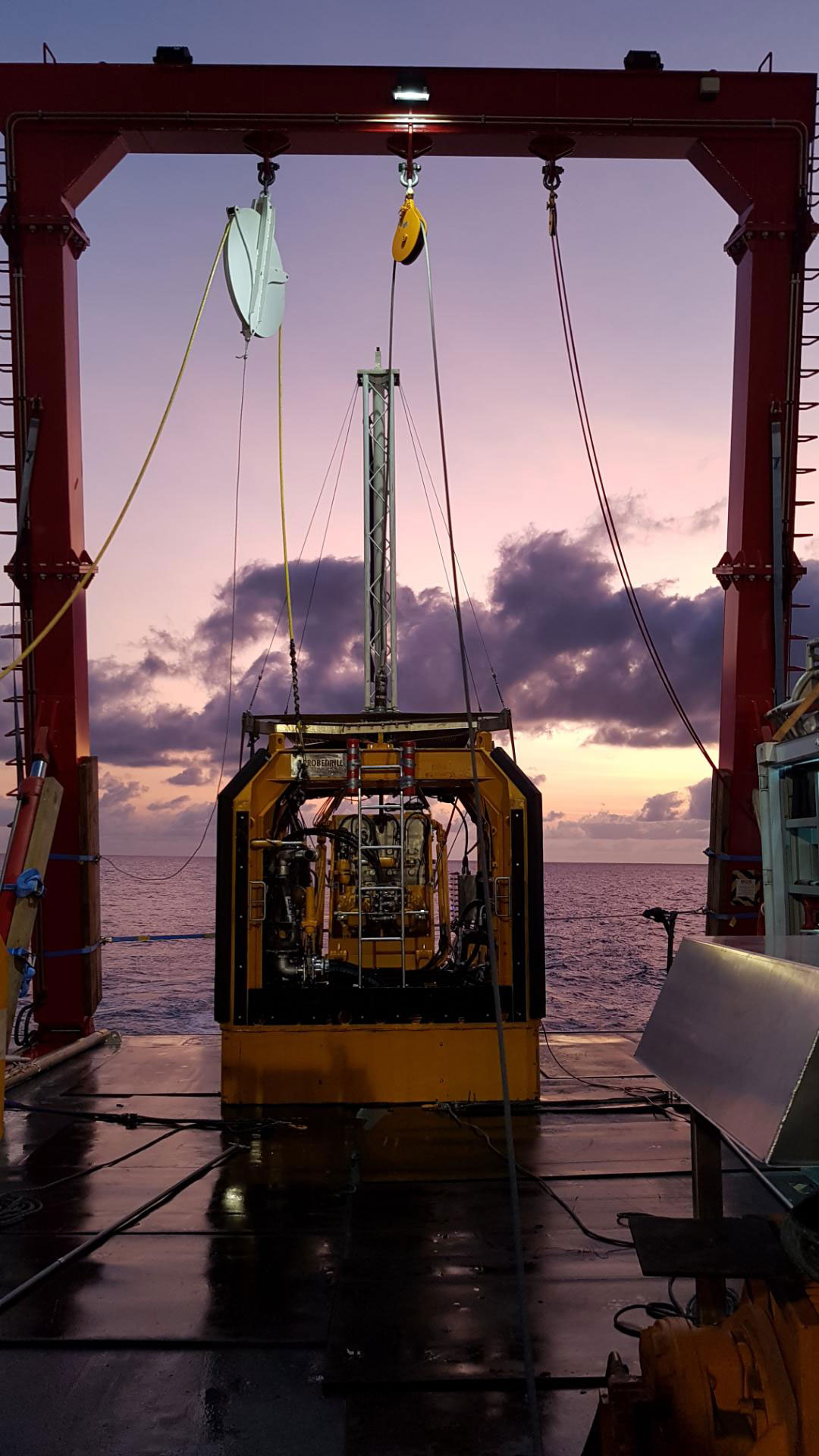

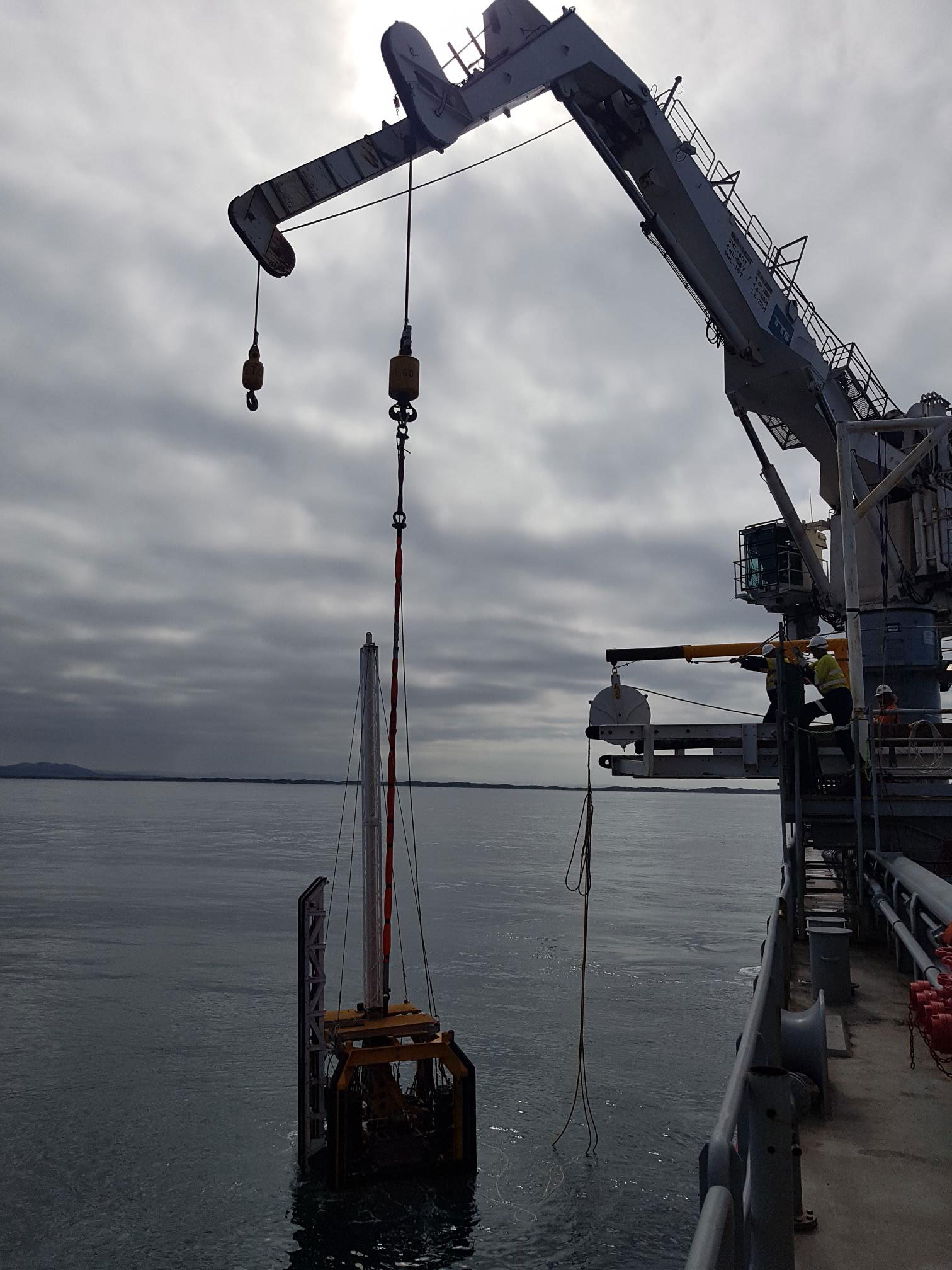

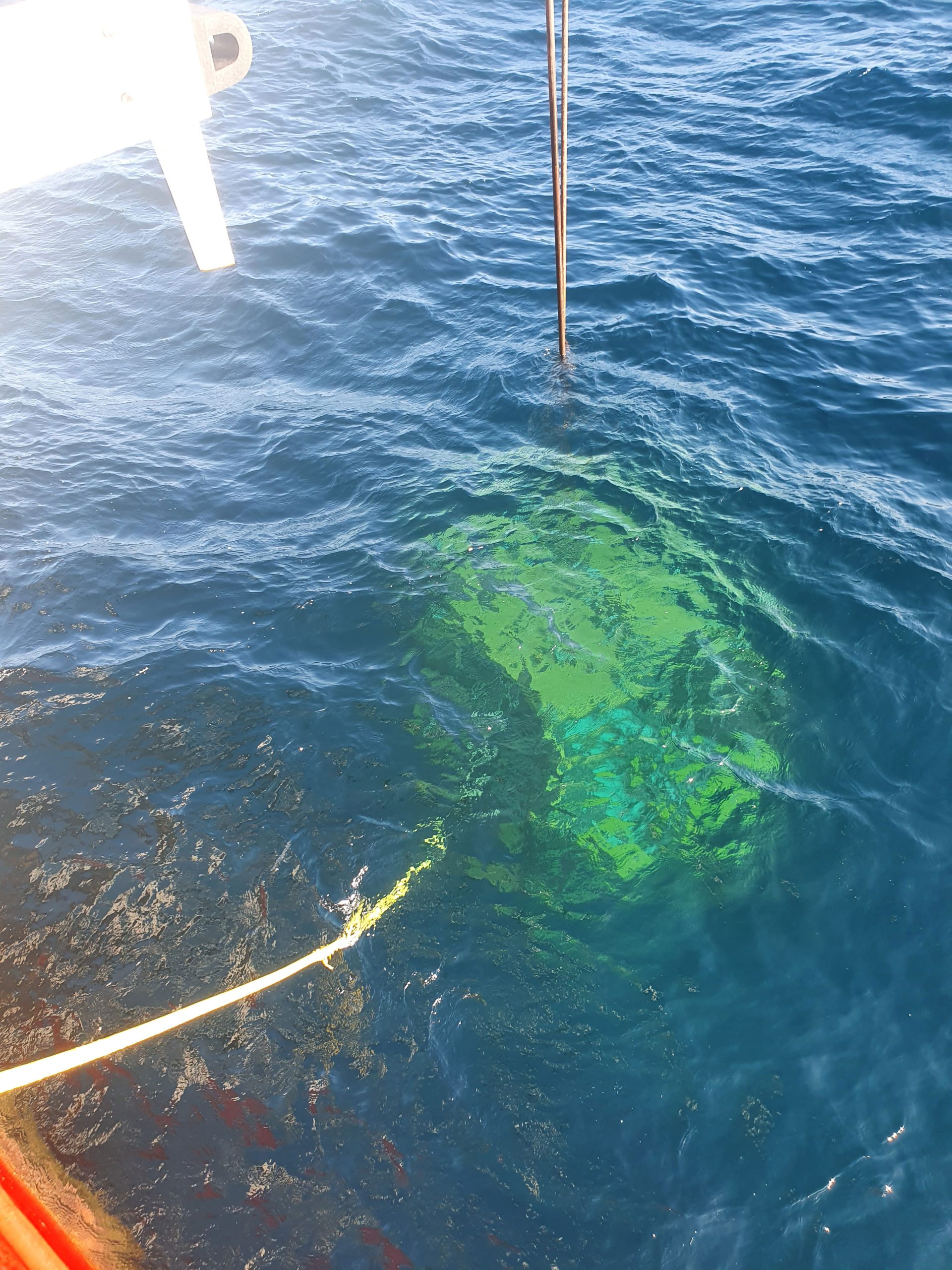

Subsea CPT

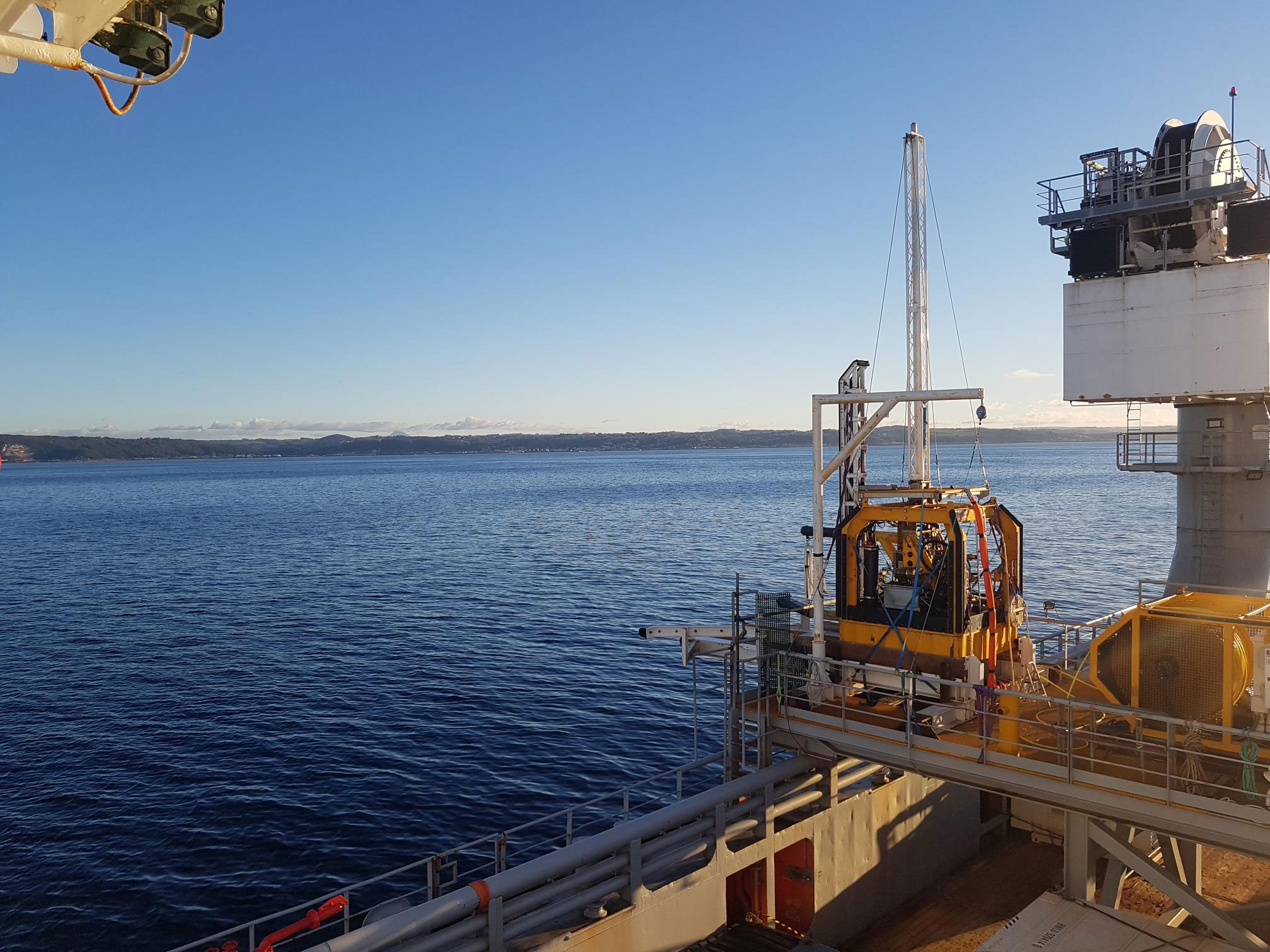

Subsea CPT
Subsea CPT
Subsea CPT

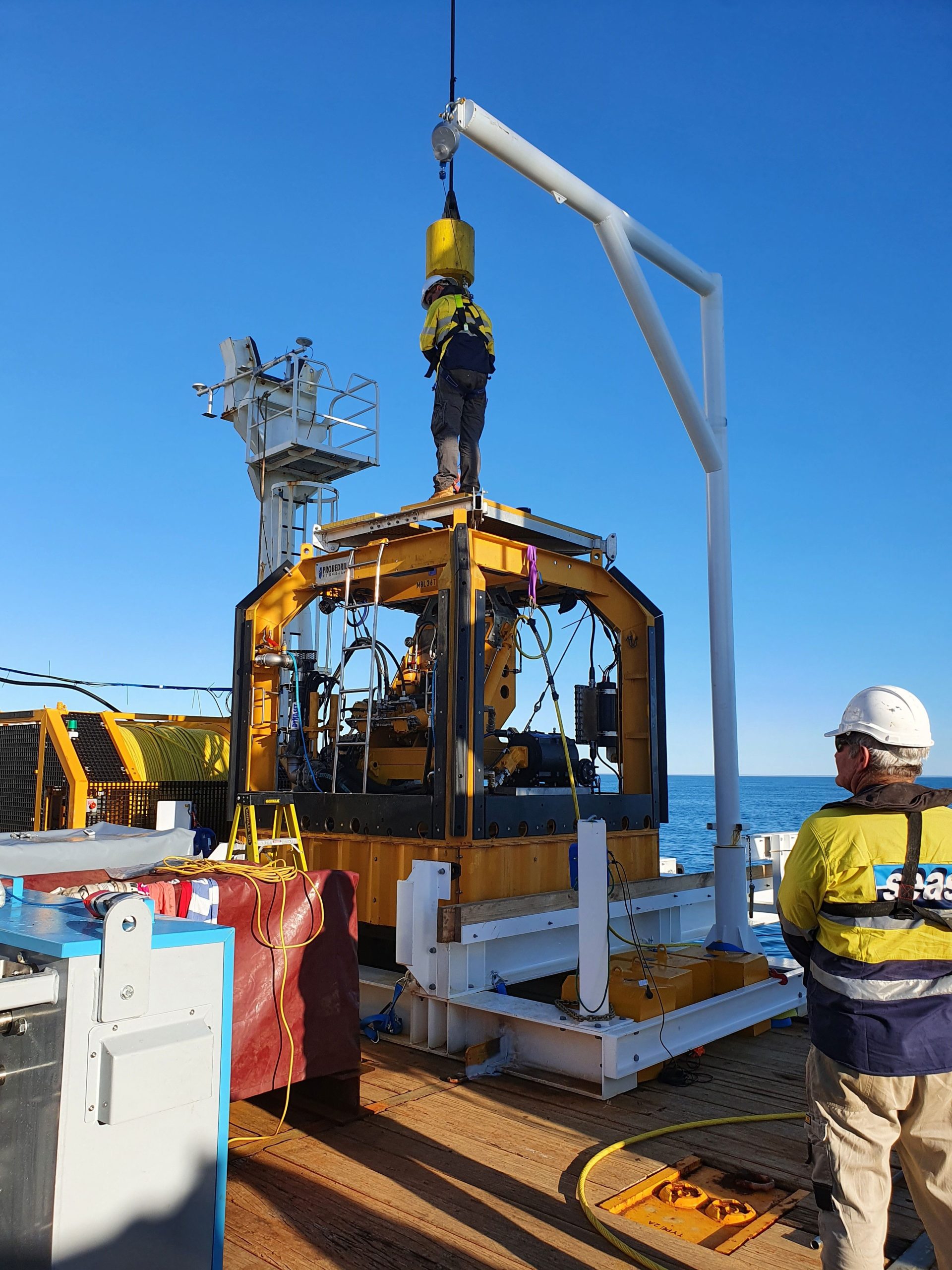

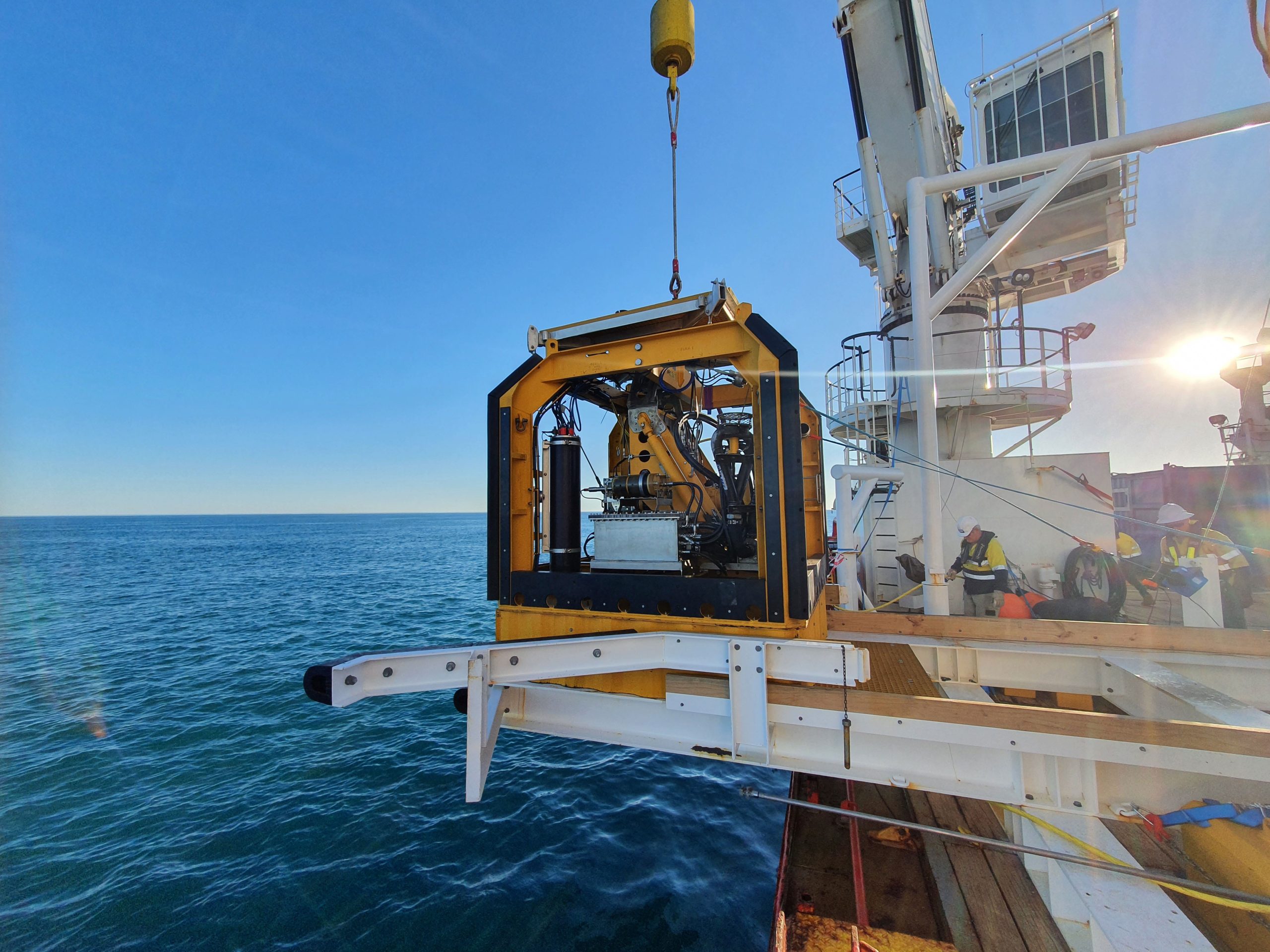

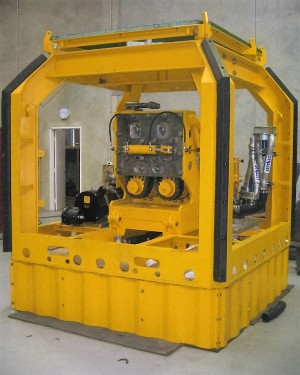

Subsea CPT Rig

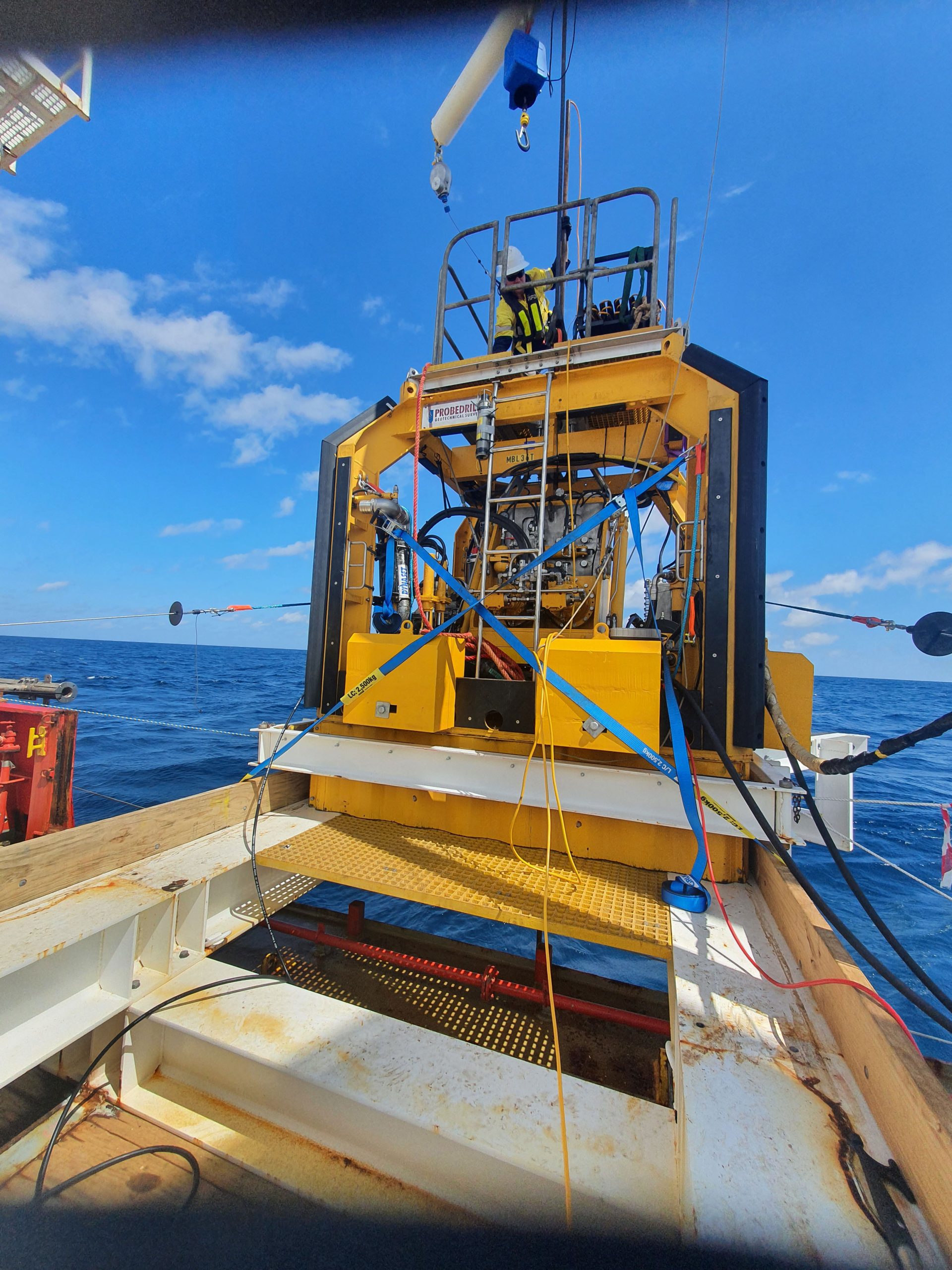

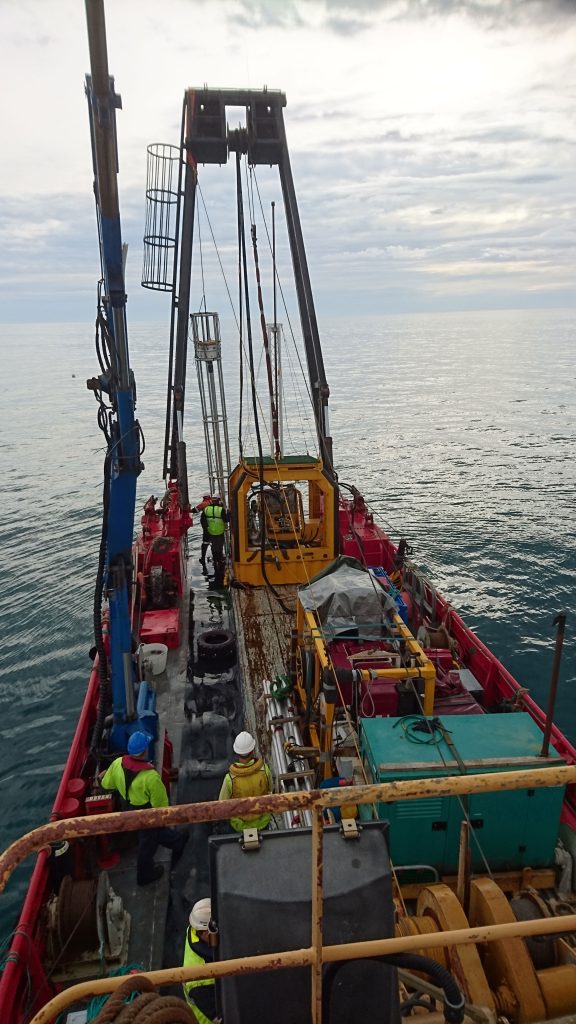

Subsea CPT set up on the back of work boat – South Australia
