Home > CPT Rigs > Morooka 3 (M3)

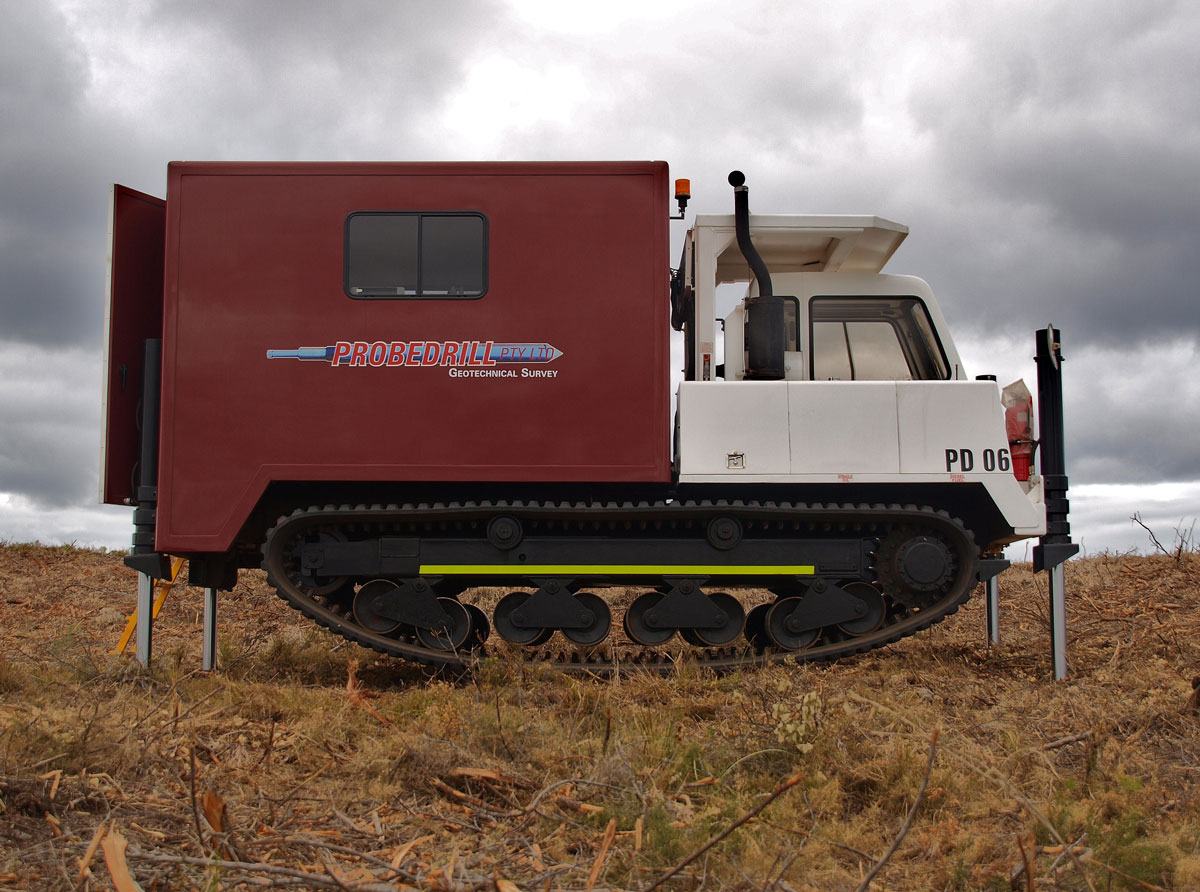

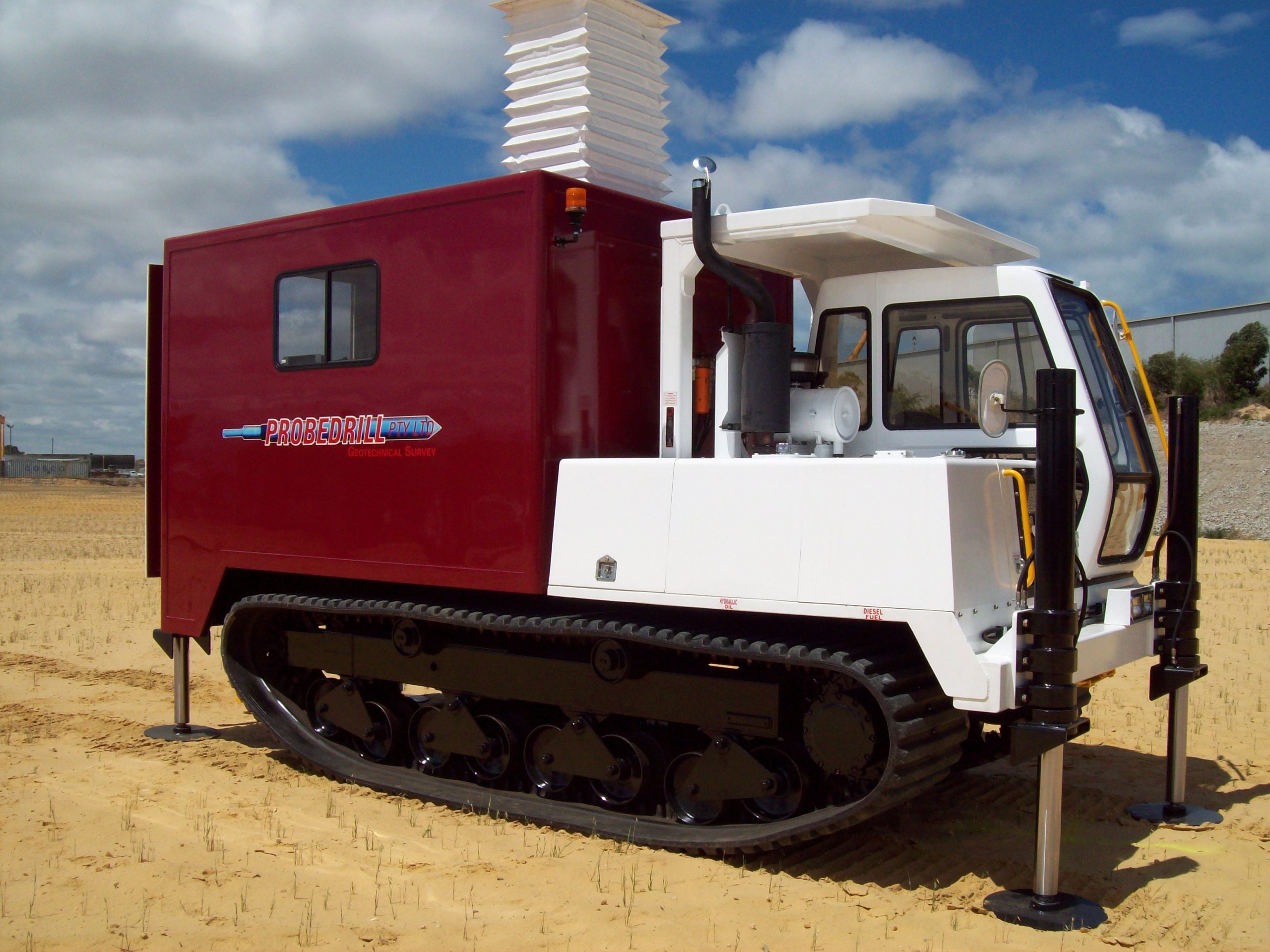

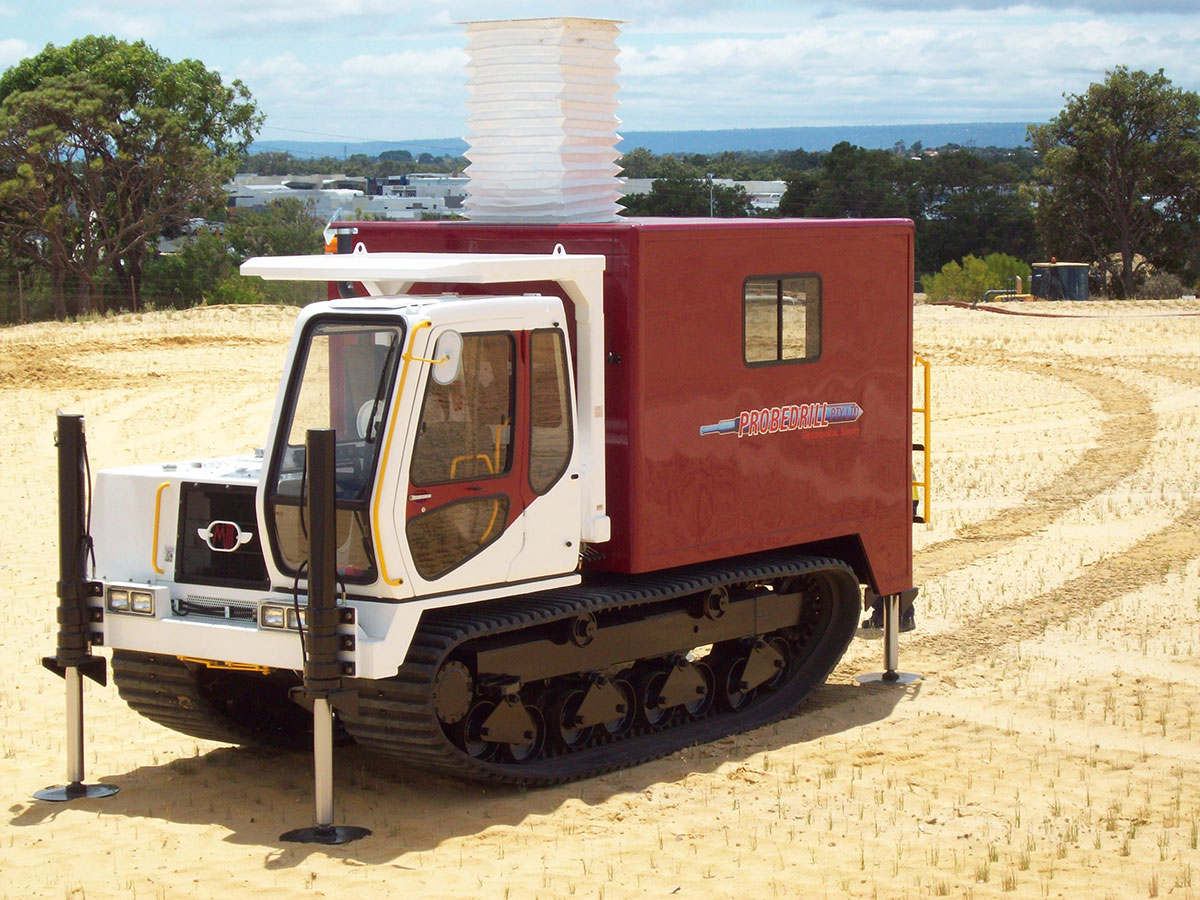

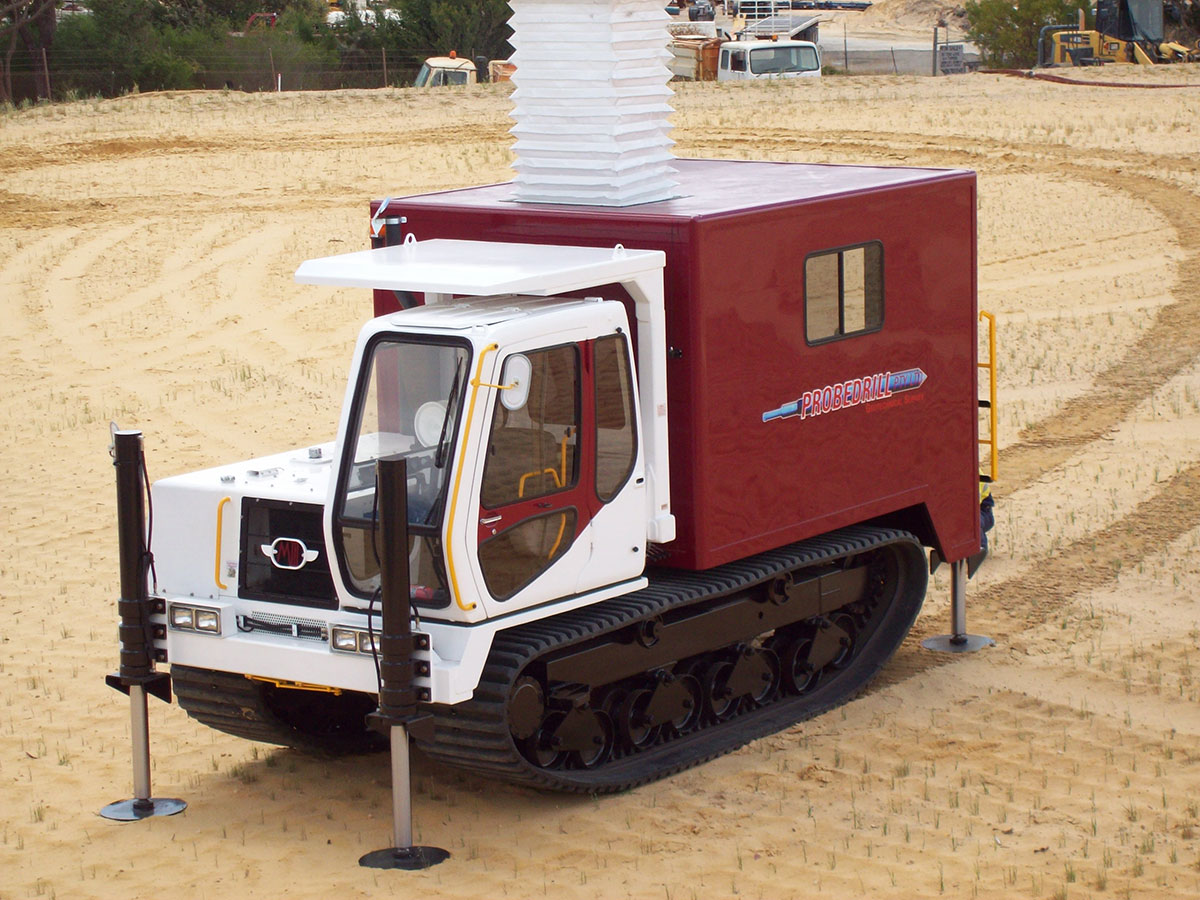

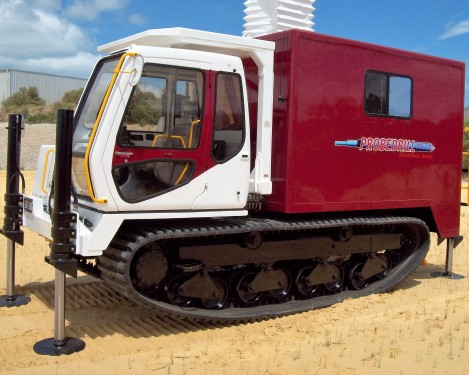

Morooka 3 (M3)

CPT Rig Specifications
Height (while travelling): 3.2m
Height (while probing) 4.4m
Length: 6.0m
Width: 2.5m
Min. Ground Bearing Pressure: 0.39 kg/cm2 (38kPa / 5.5psi)
Travelling Speed (tracked rigs): Low: 7.6km; High: 11km/h
For use in areas such as: Soft / sandy / tidal ground

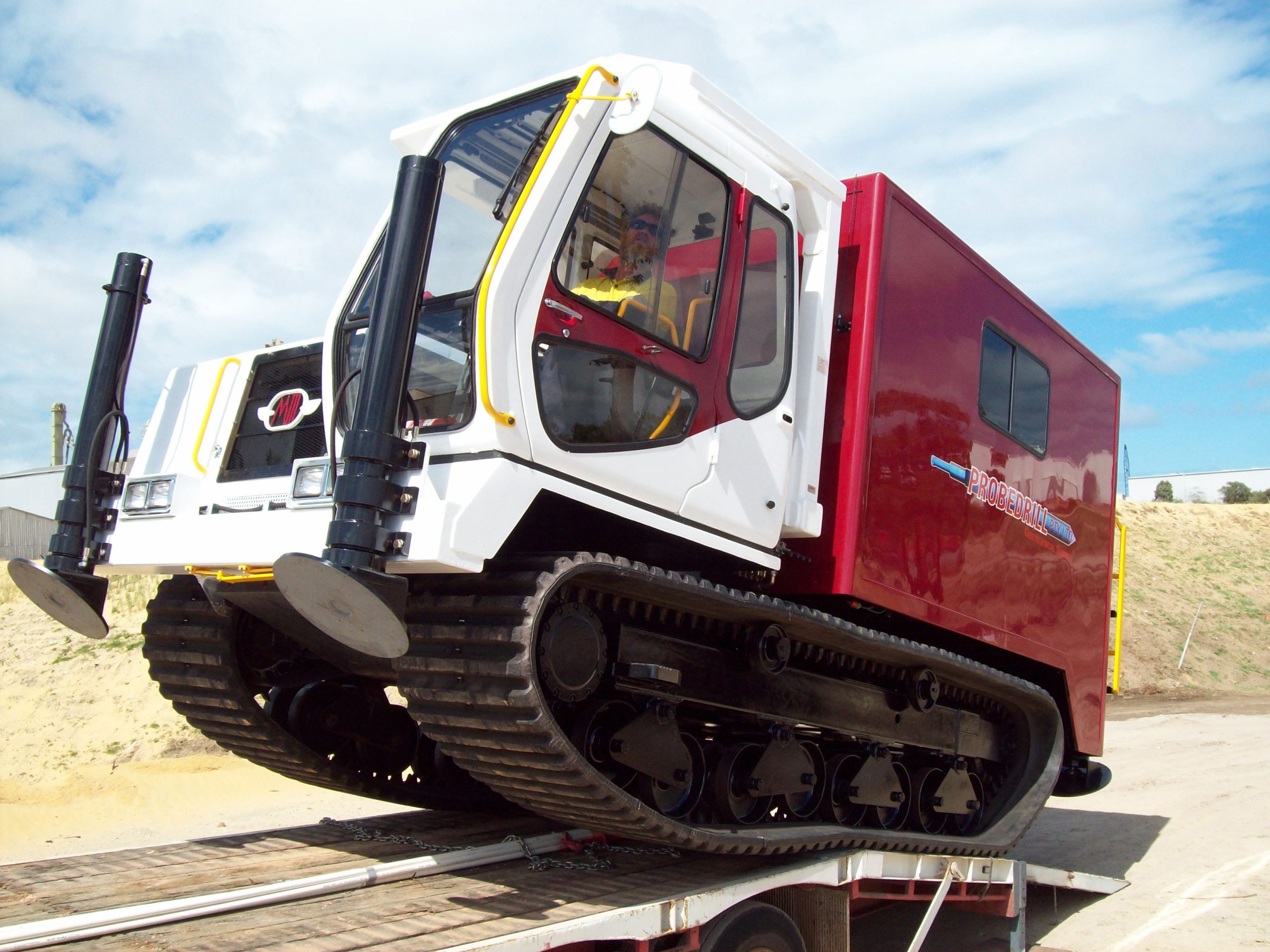

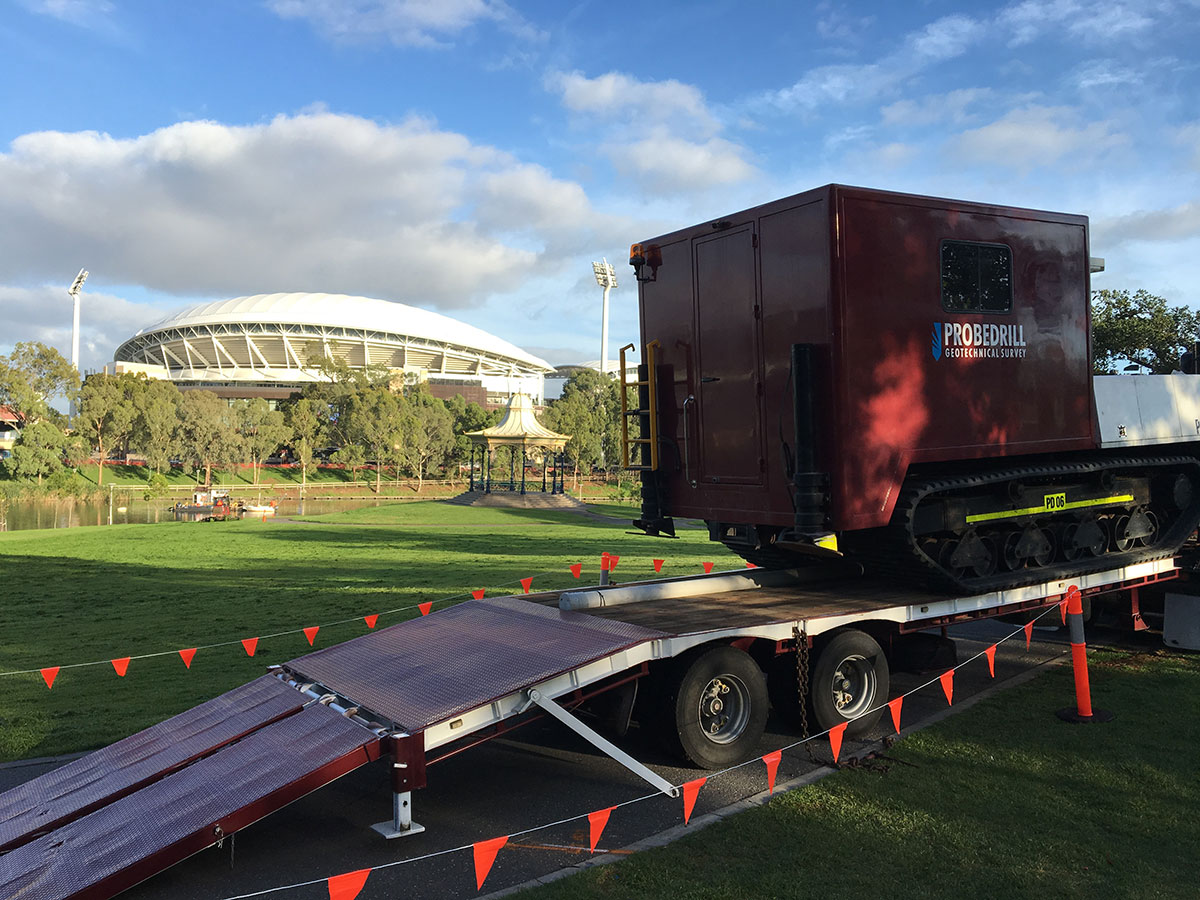

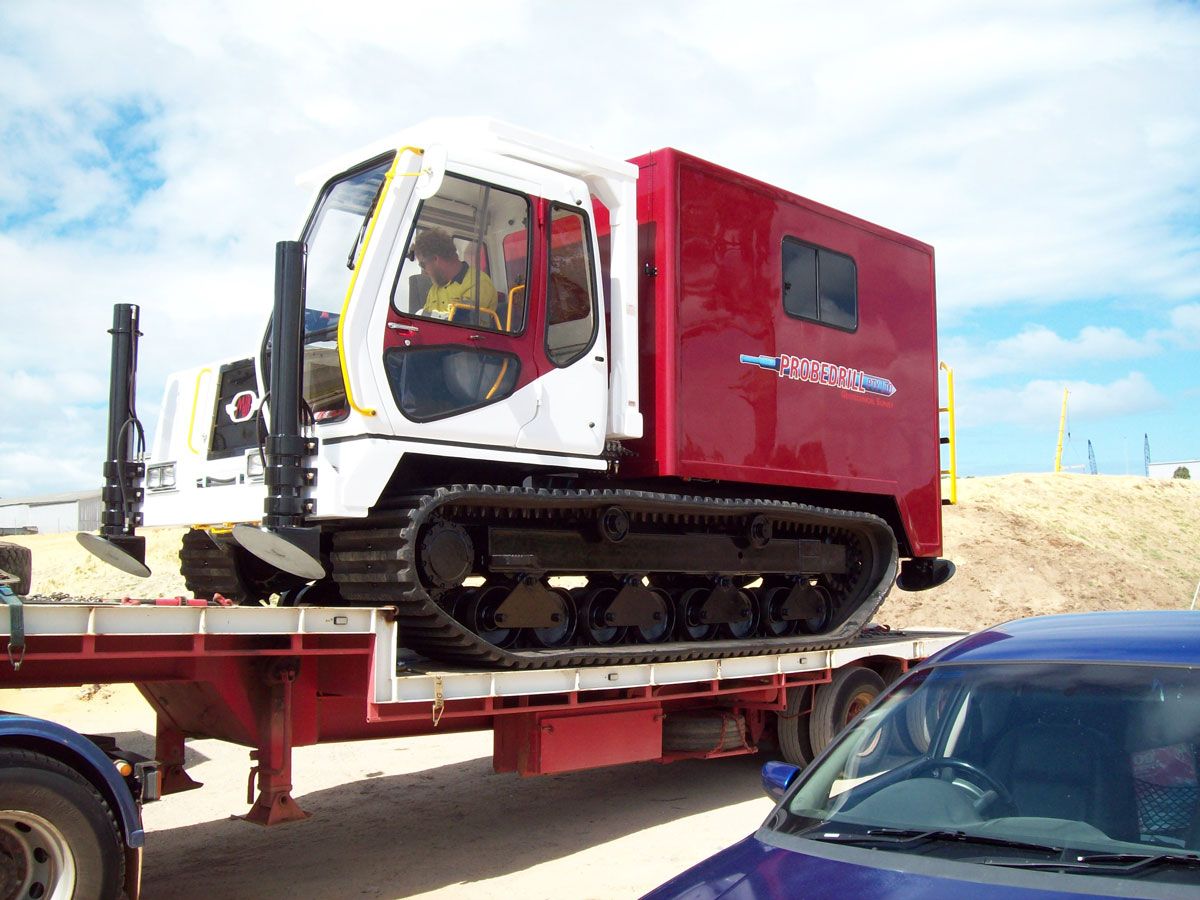

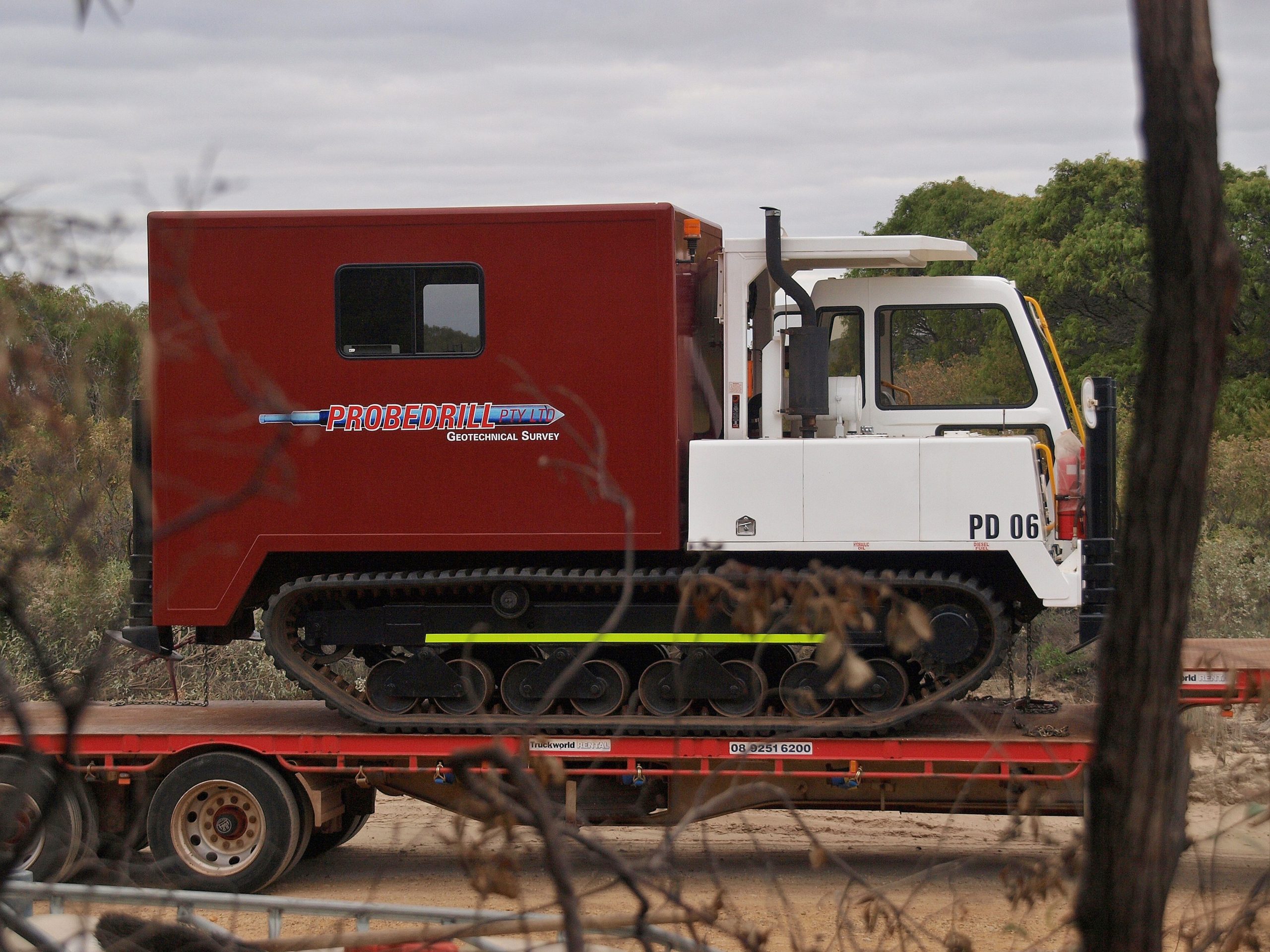

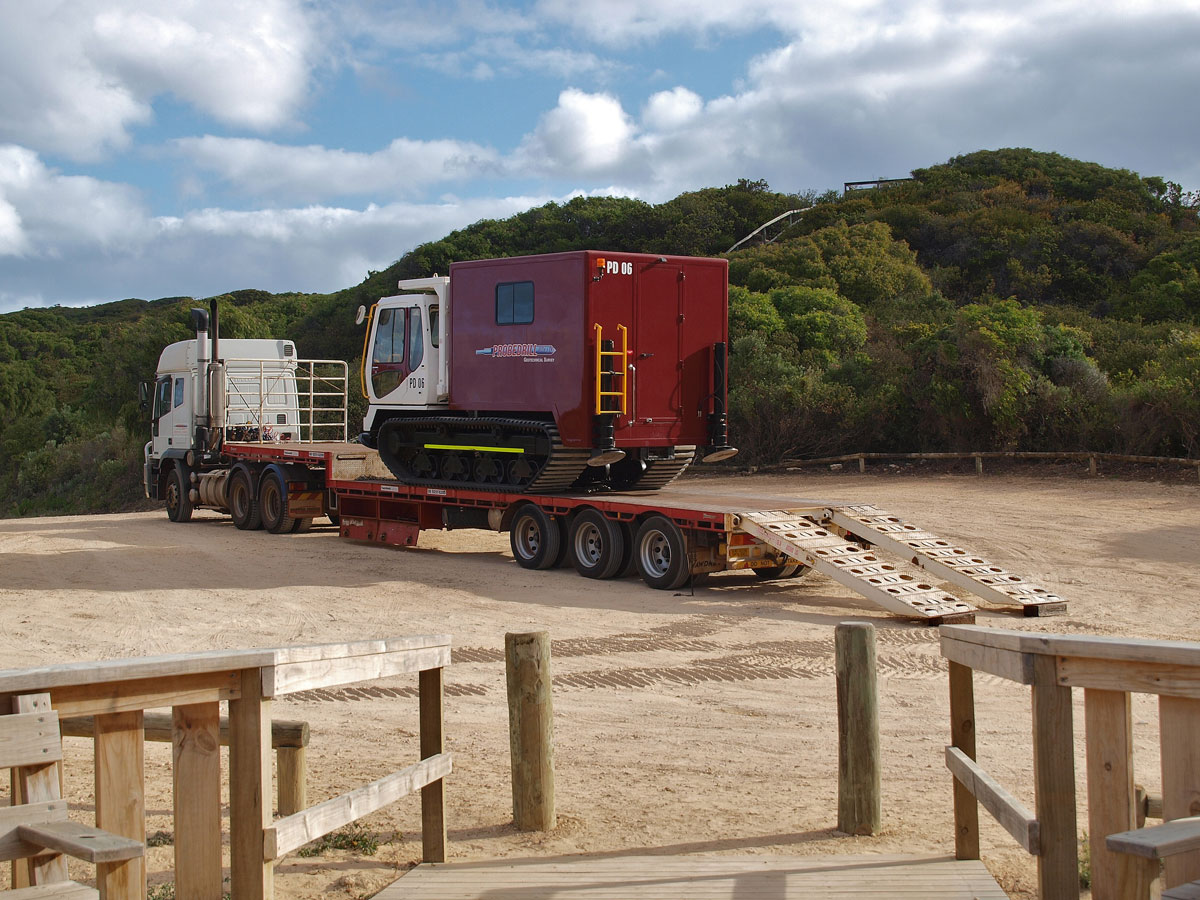

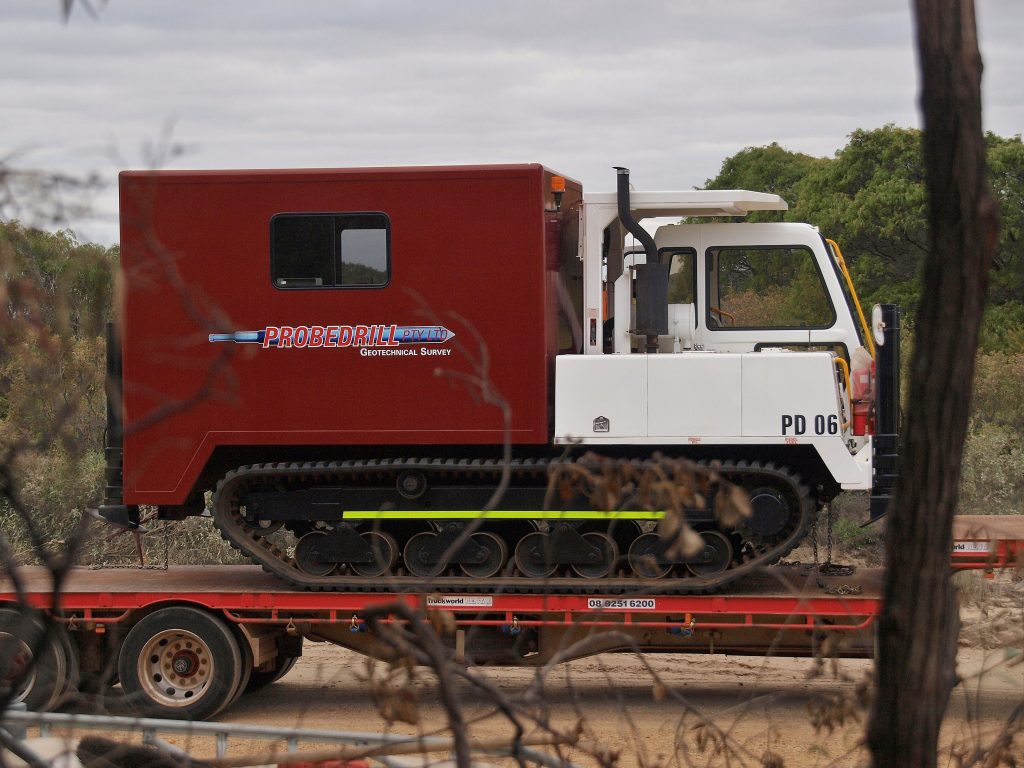

The M3 is our latest built Morooka.  Being a 19 tonne tracked rig, it has the capabilities of getting into soft, sandy areas while having the pushing capacity (185kN) comparable to that of our truck mounted rigs. The M3 is transported to site via Prime Mover & 10m Drop-deck trailer with ramps Other specifications include :

  • Grade ability 60%
  • Engine Mitsubishi (7545cc) 204HP @ 2,700 rpm
  • Fuel Tank 156 L (Diesel)
  • Drive System HST
  • Tracks 700mm wide rubber tracks

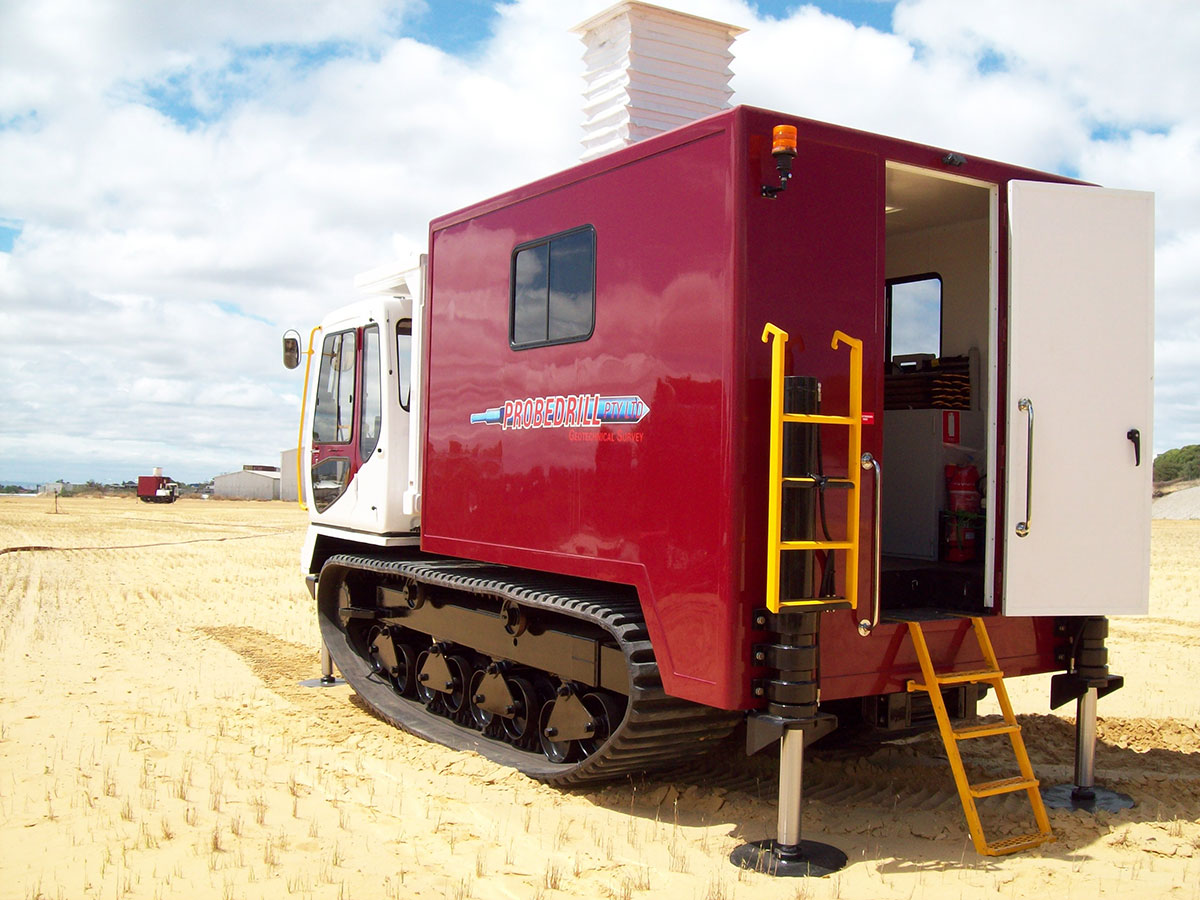

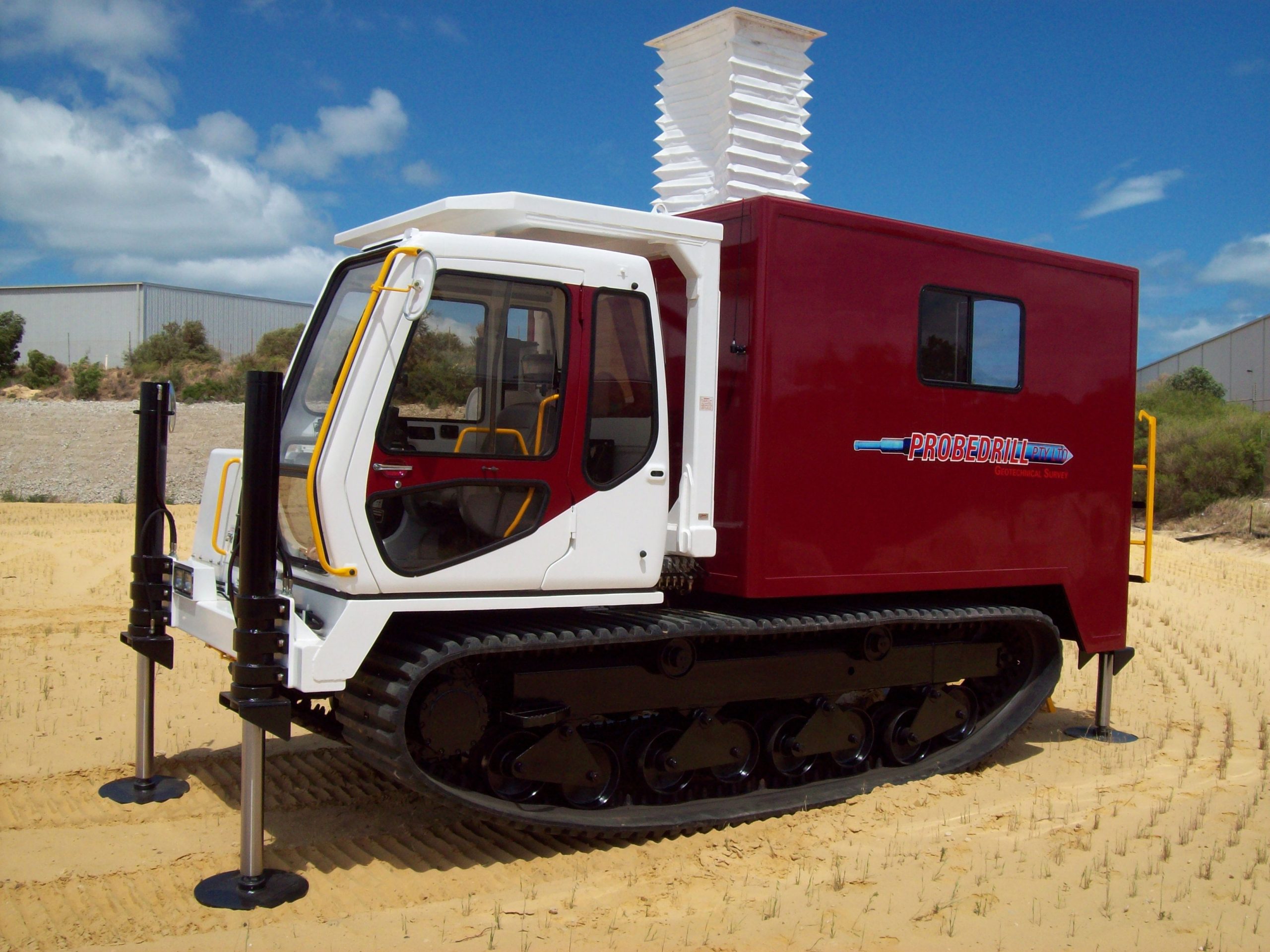

  • Levelling Jacks 1.2m stroke (700mm lift from ground)

EQUIPMENT / FEATURES

  • Winch A.P.E. Winch: Hydraulically Powered 13.6 tonne line pull with 45m of 18mm wire rope.
  • 2.4m x 1.2m Plastic Bog Boards
  • 1 x 9kg ABE Fire extinguisher
  • Air conditioned work cabin and drive cabin
  • ROPS
  • Reversing Camera

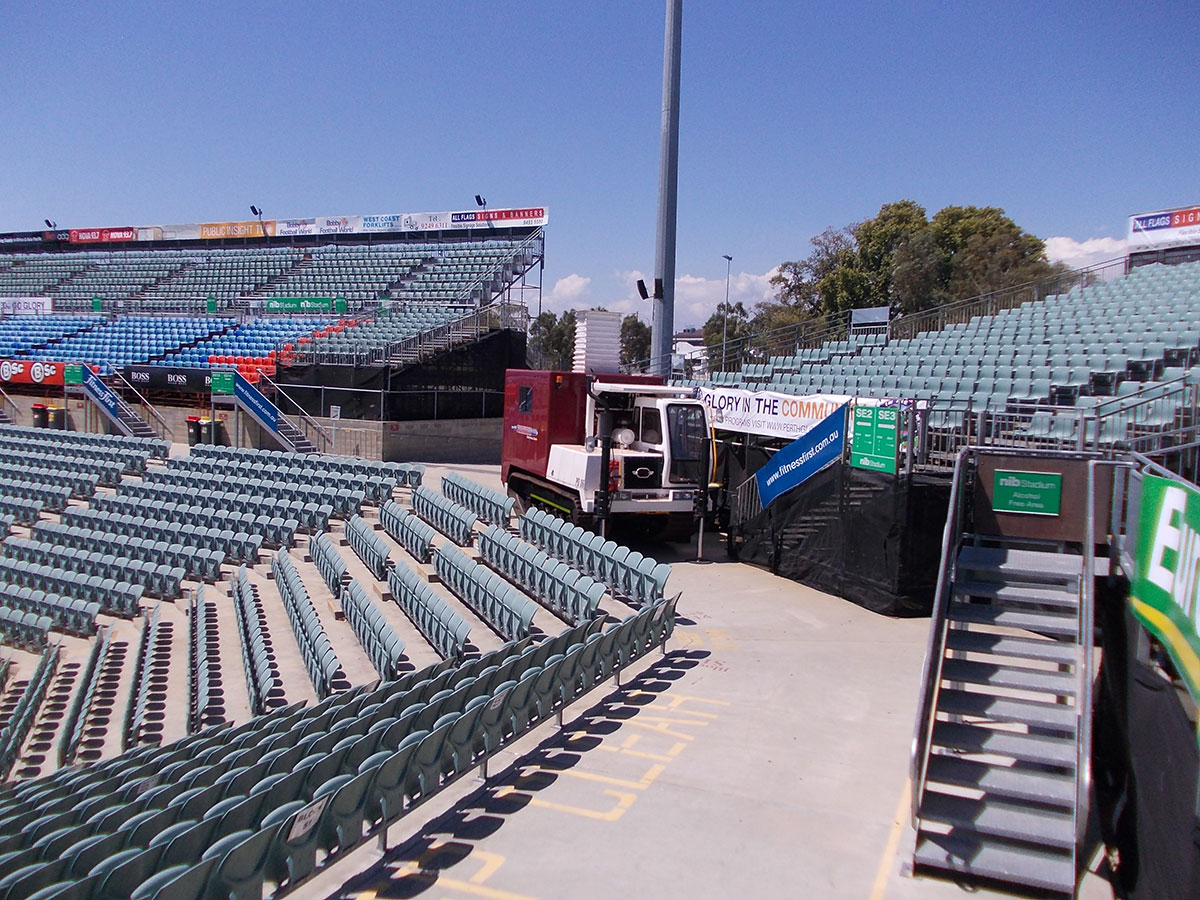

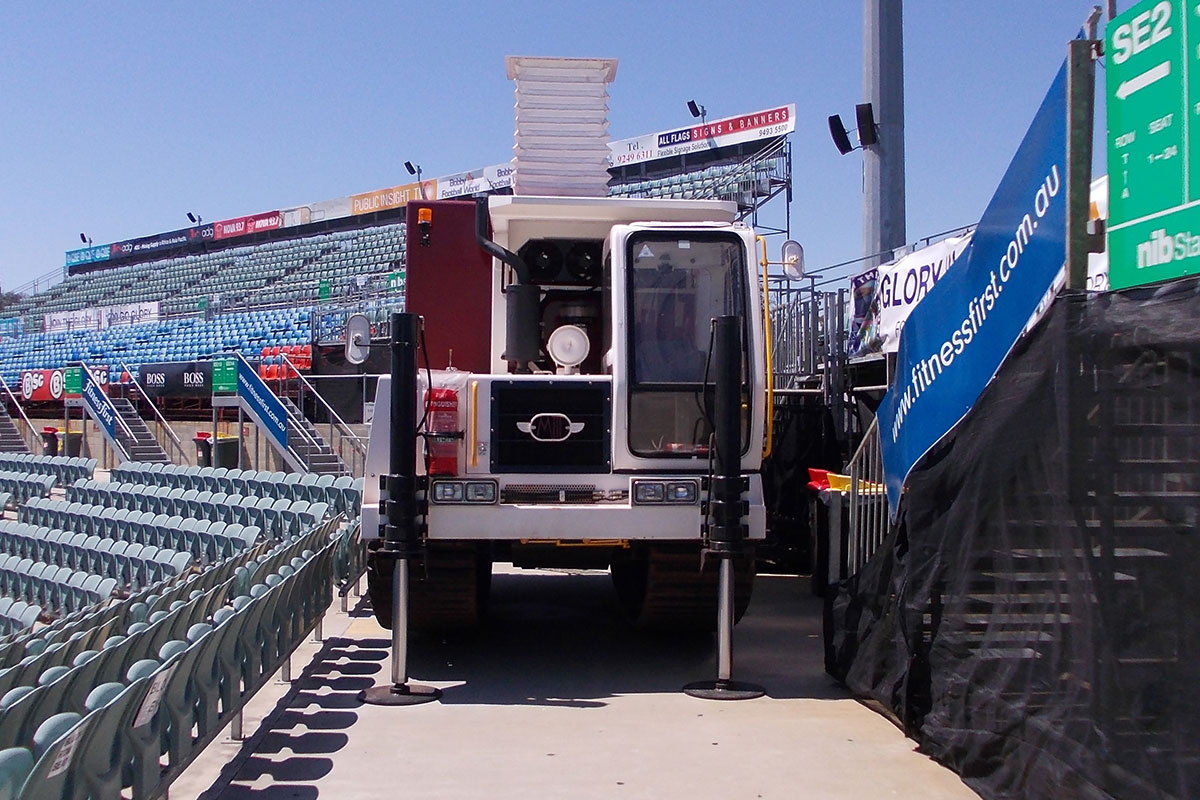

NIB Stadium
NIB Stadium

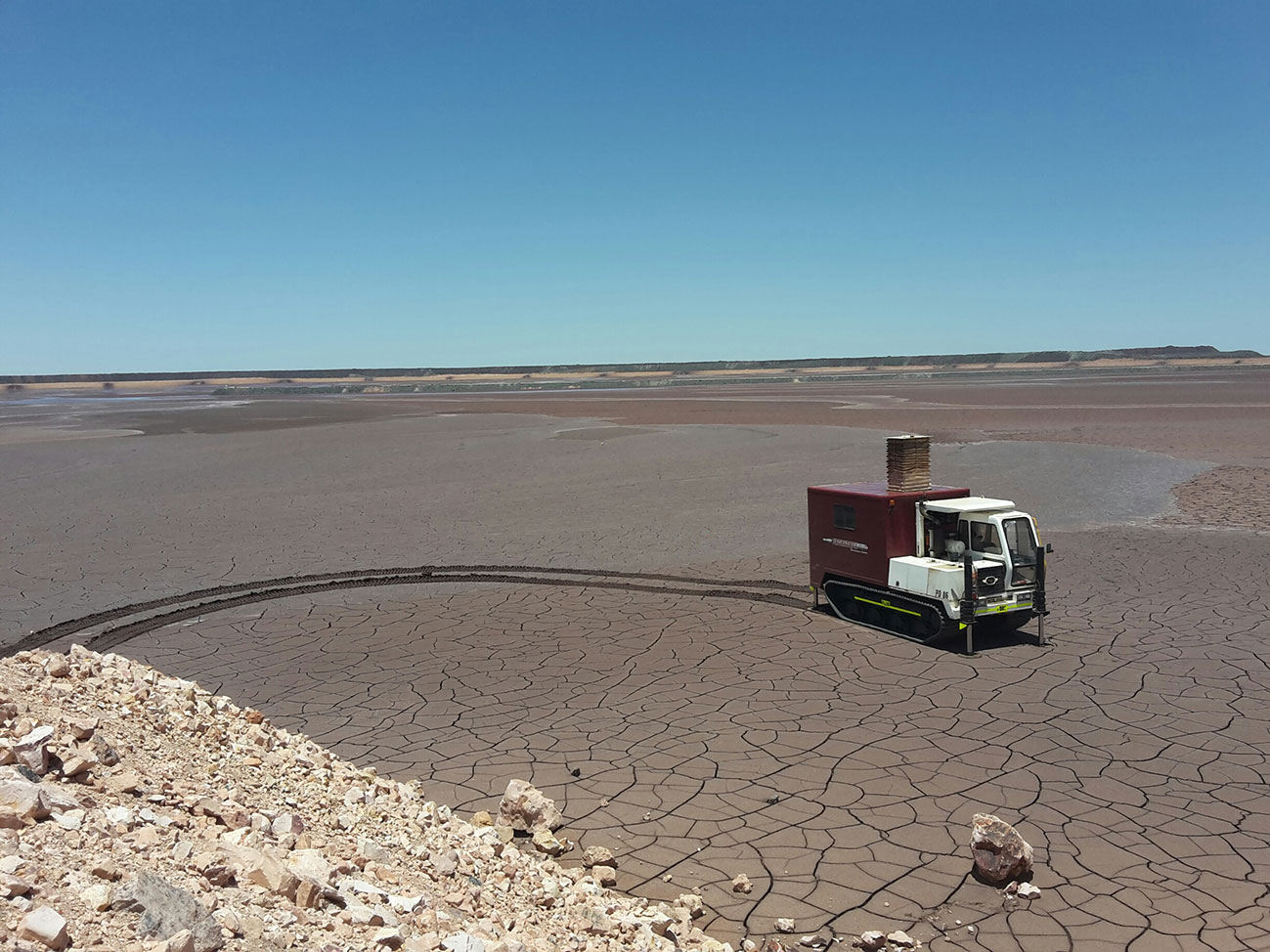

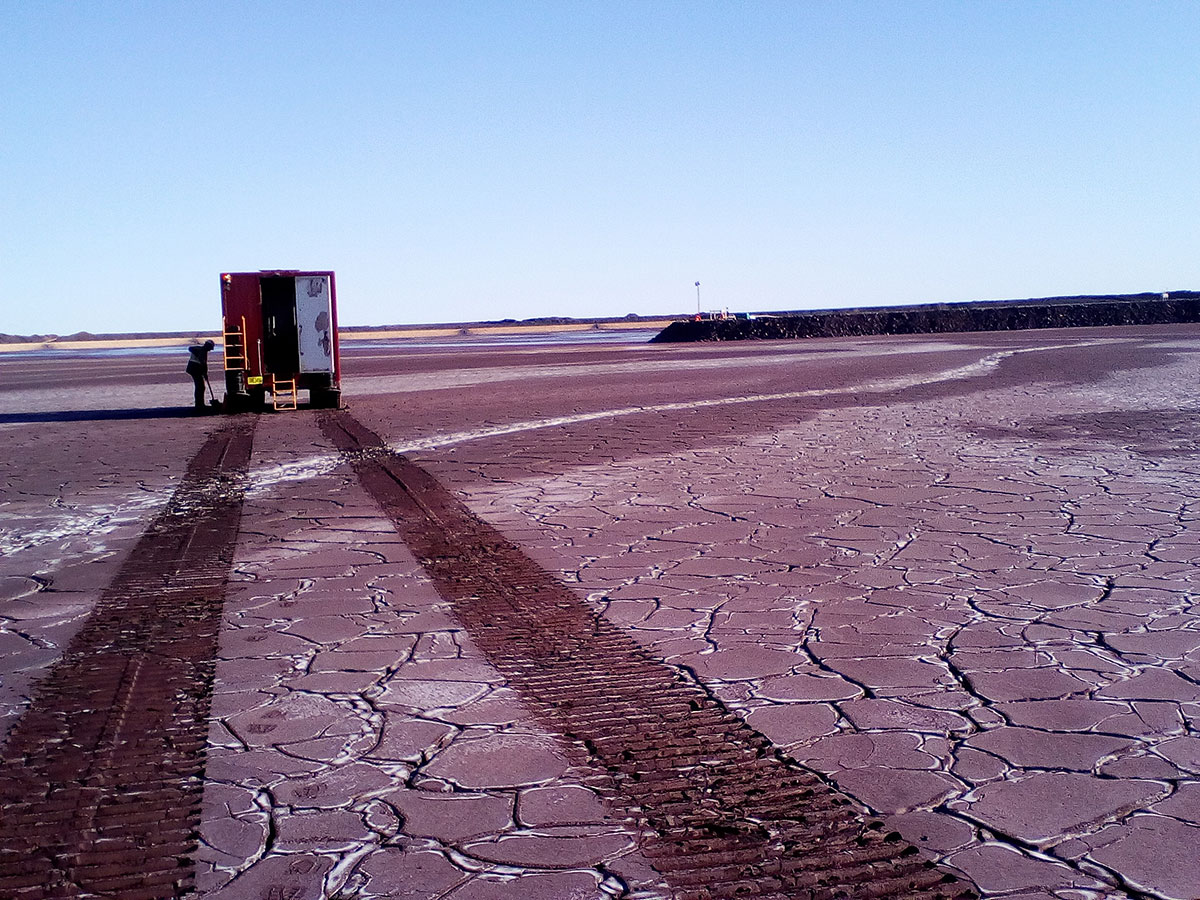

M3 – Mt Keith TSF

M3 – Mt Keith TSF

CPT Rigs

  • Seabed CPT
  • 22 Tonne Truck Rig (Merc)
  • 25 Tonne Truck Rig (RFW)
  • Morooka 1 (M1)
  • Morooka 2 (M2)
  • Morooka 3 (M3)
  • 13 tonne Marsh Buggy Rig
  • 7 tonne Track Rig
  • 22 tonne Track-Truck
  • Portable Equipment
  • 300kN Pushing frame
  • Container Rig
Morooka 3 (M3)
Spec Sheet
