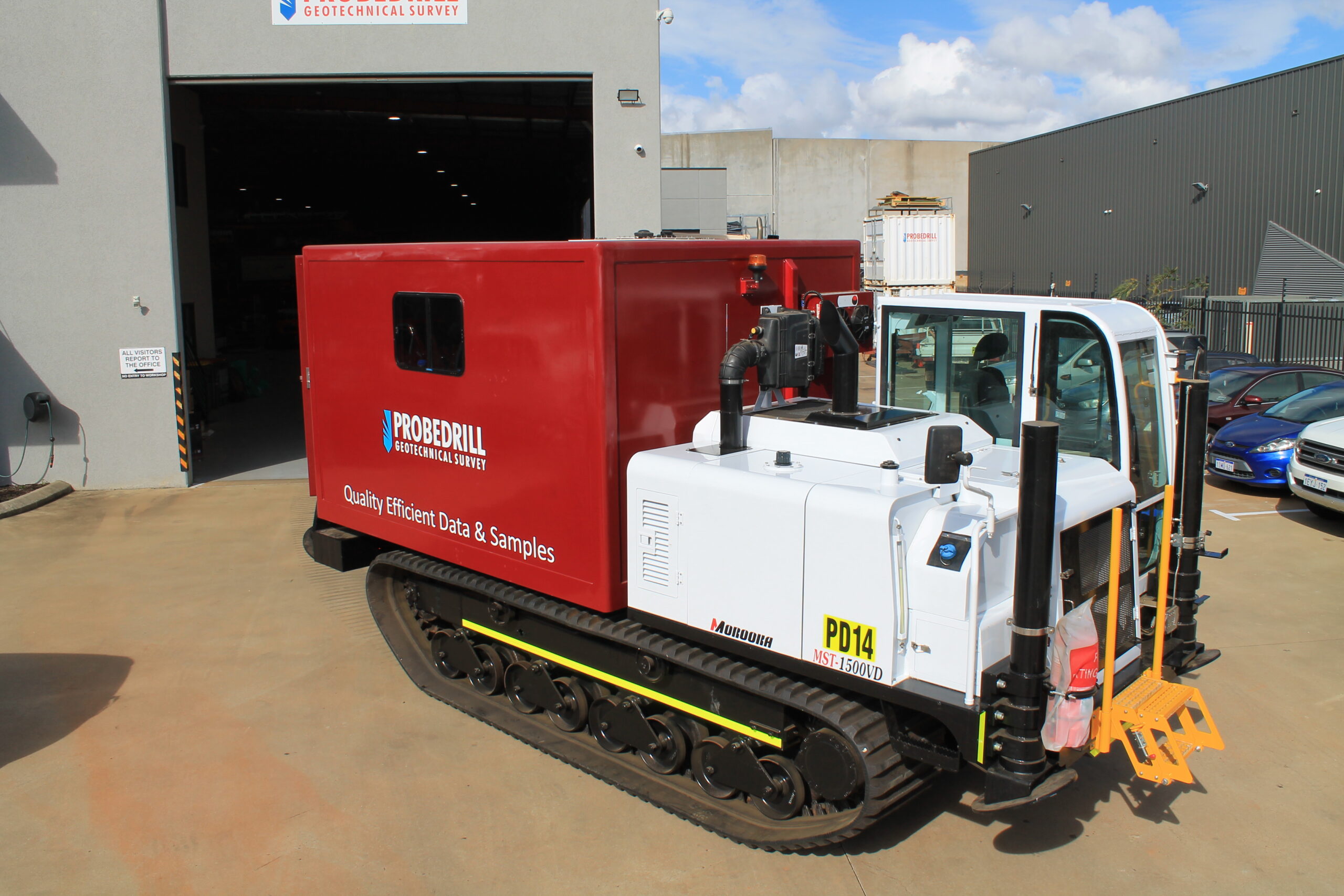

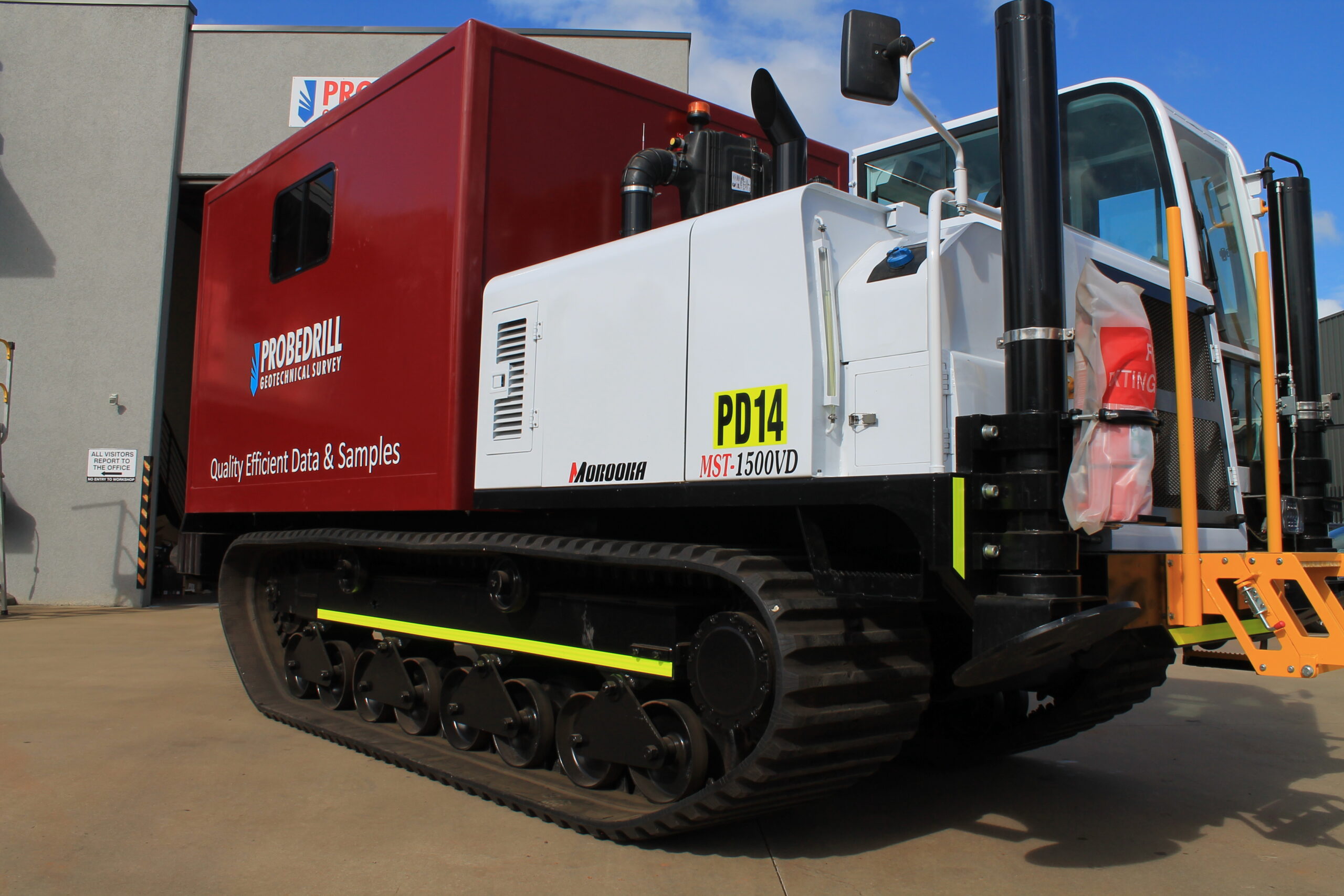

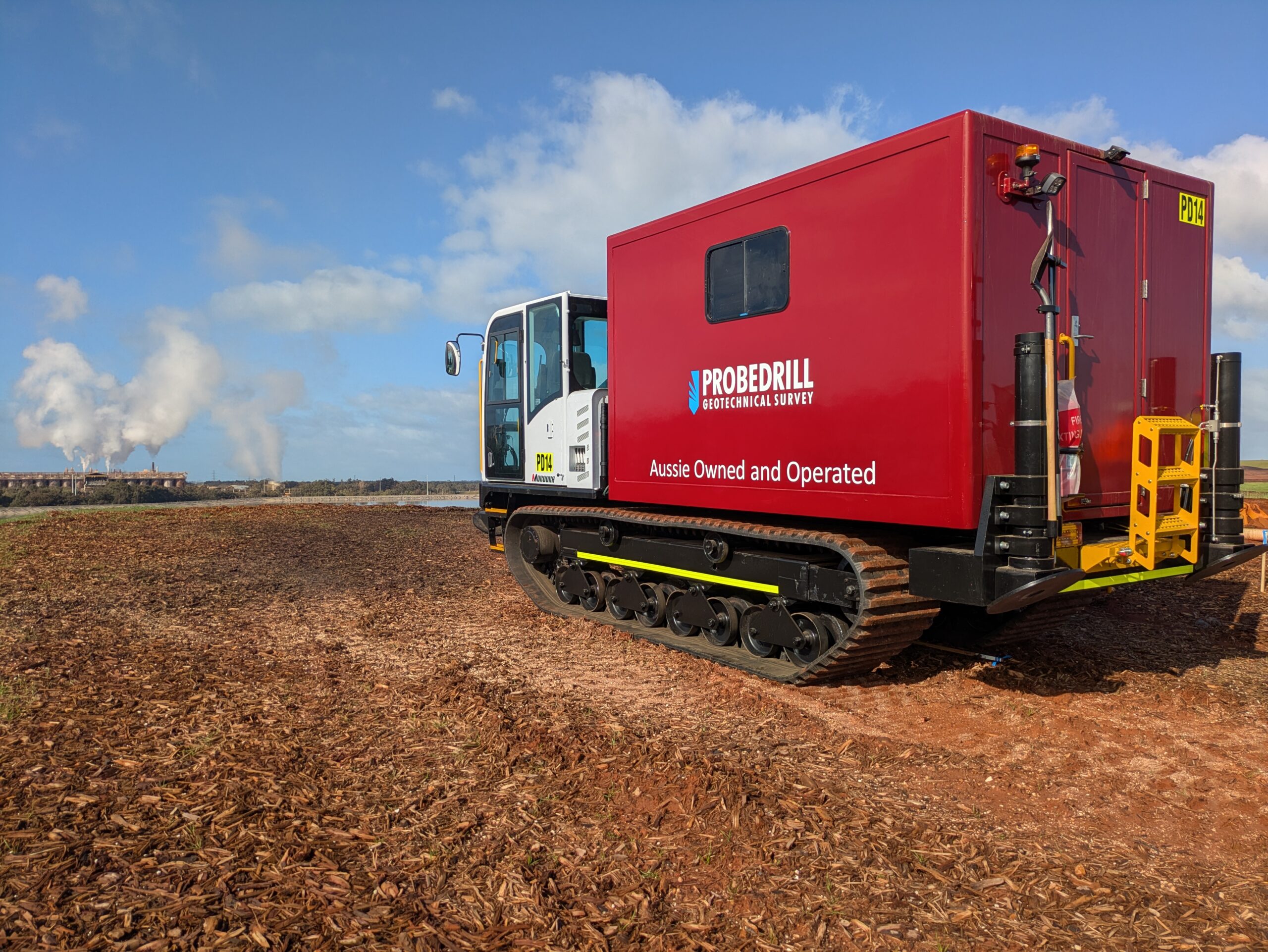

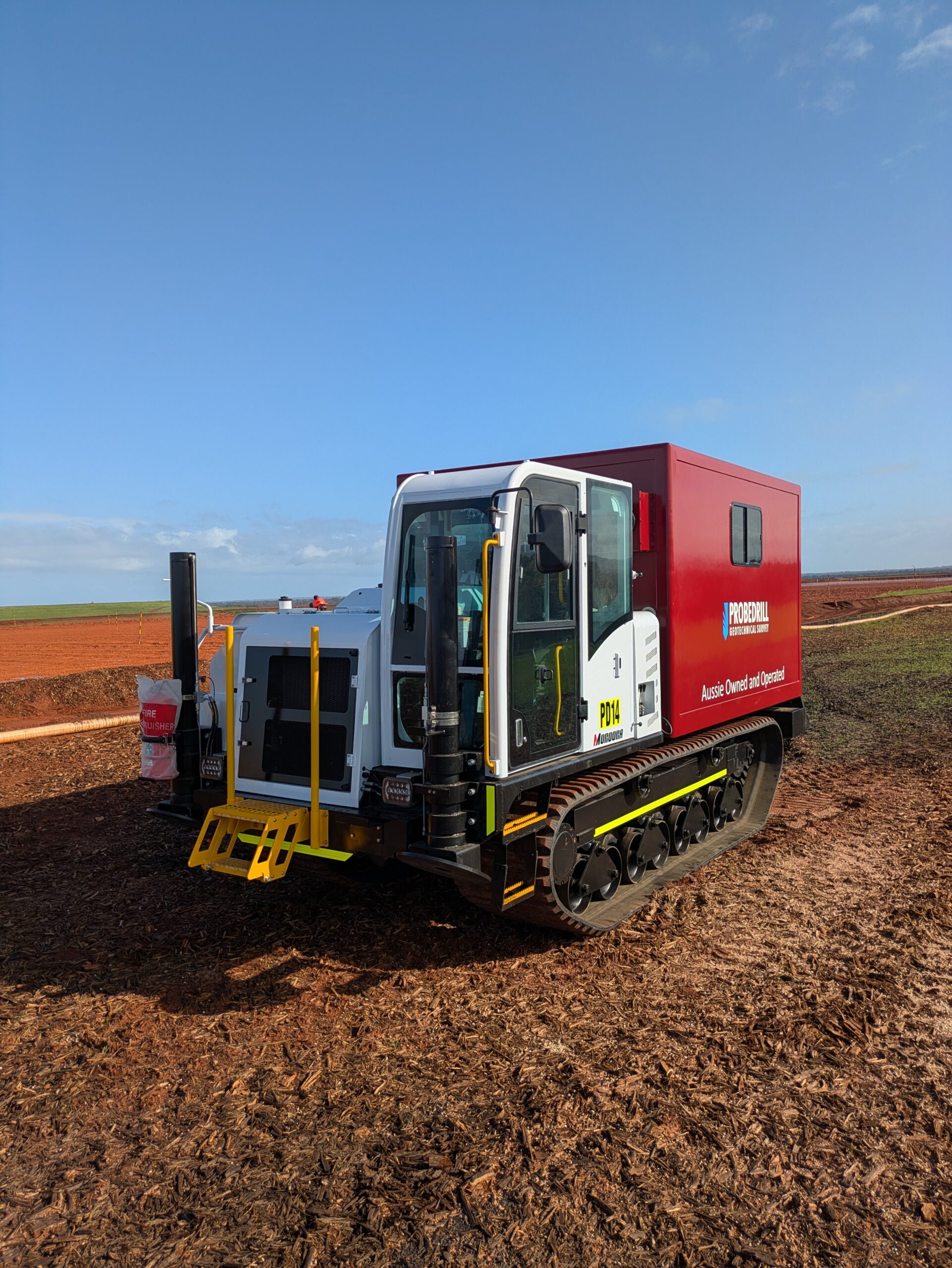

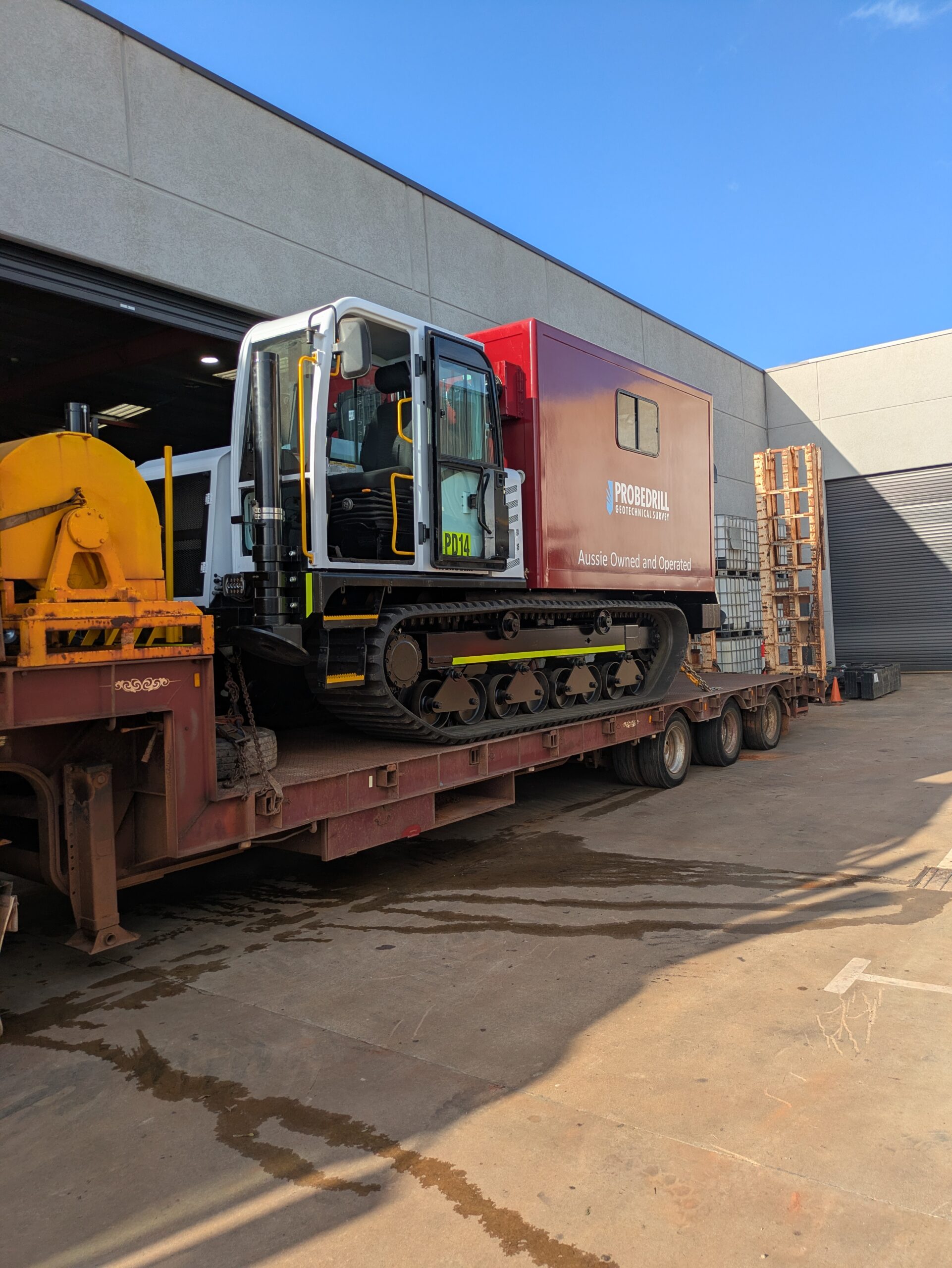

The M4 is our latest built Morooka. Being a 20 tonne tracked rig, it has the capabilities of getting into soft, sandy areas while having the pushing capacity (200kN) comparable to that of our truck mounted rigs. The M4 is transported to site via Prime Mover & 10m Drop-deck trailer with ramps Other specifications include :
- Grade ability 60%
- Cummins QSB (6.7L); 168 kw/225 HP @ 2,200 rpm
- Fuel Tank 240 L (Diesel)
- Drive System HST
- Tracks 700mm wide rubber tracks
- Levelling Jacks 1.4m stroke (700mm lift from ground)
EQUIPMENT / FEATURES
- 4m x 1.2m Plastic Bog Boards
- 1 x 9kg ABE Fire extinguisher
- Air conditioned work cabin and drive cabin
- ROPS
- Reversing Camera
